MG ECU
MG ECUReference Value

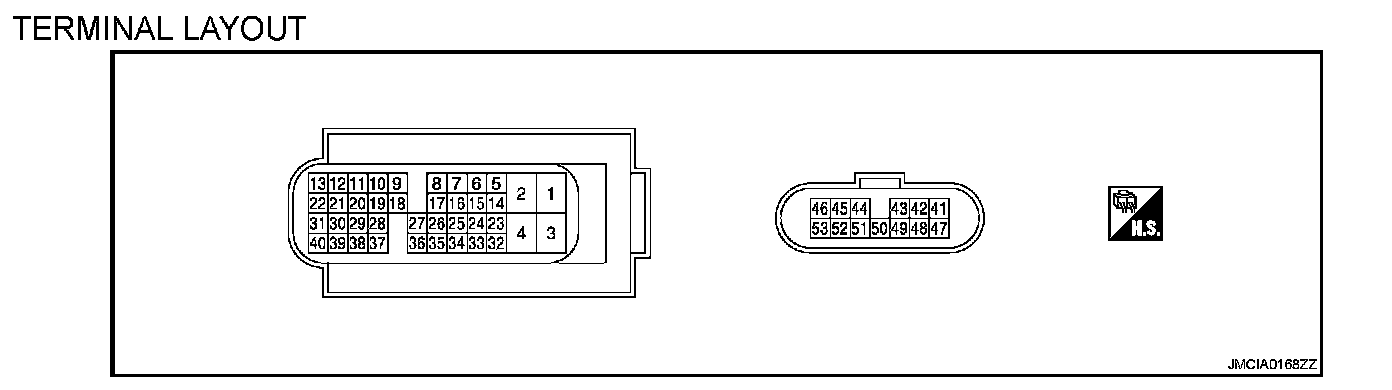

TERMINAL LAYOUT

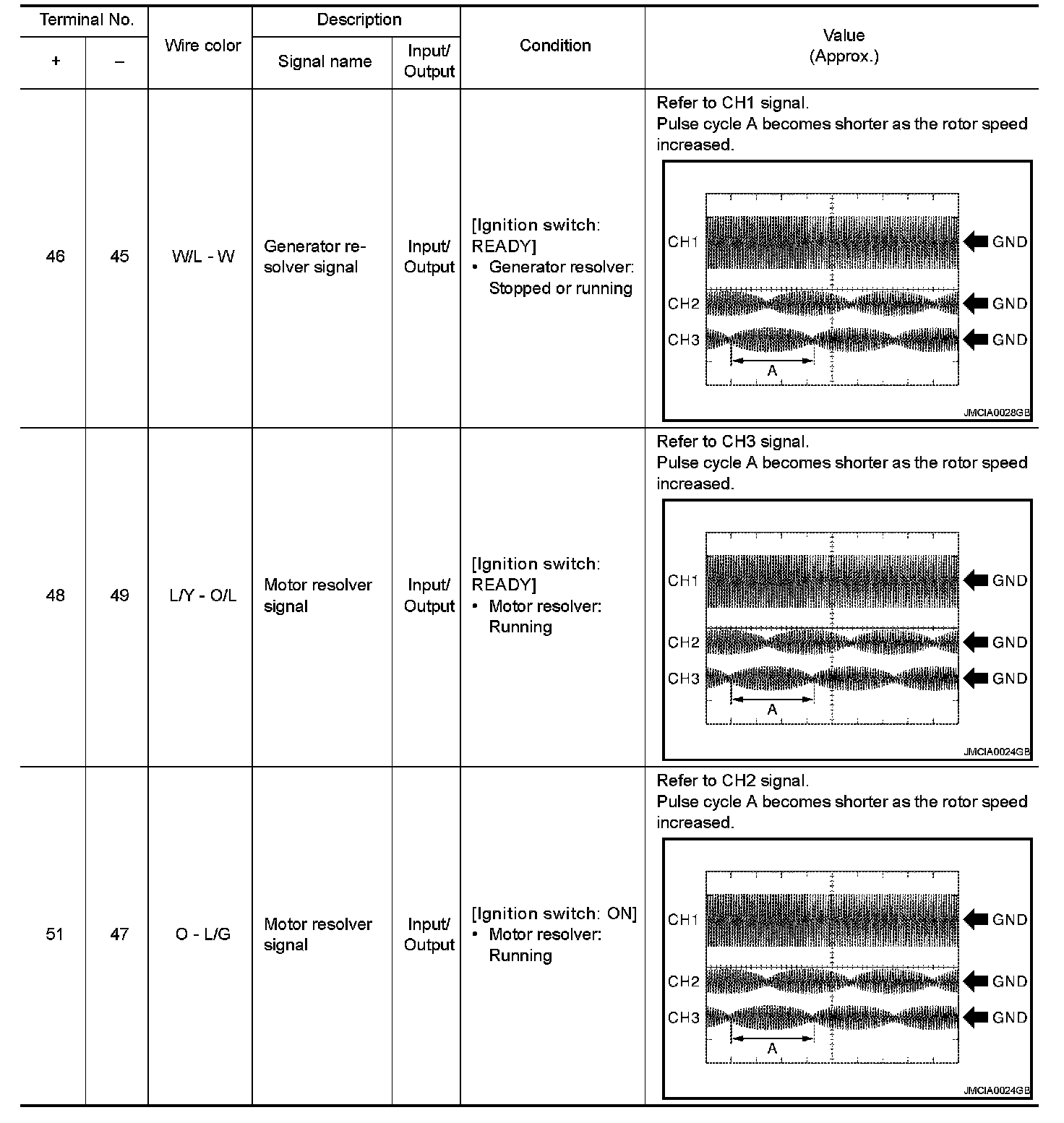

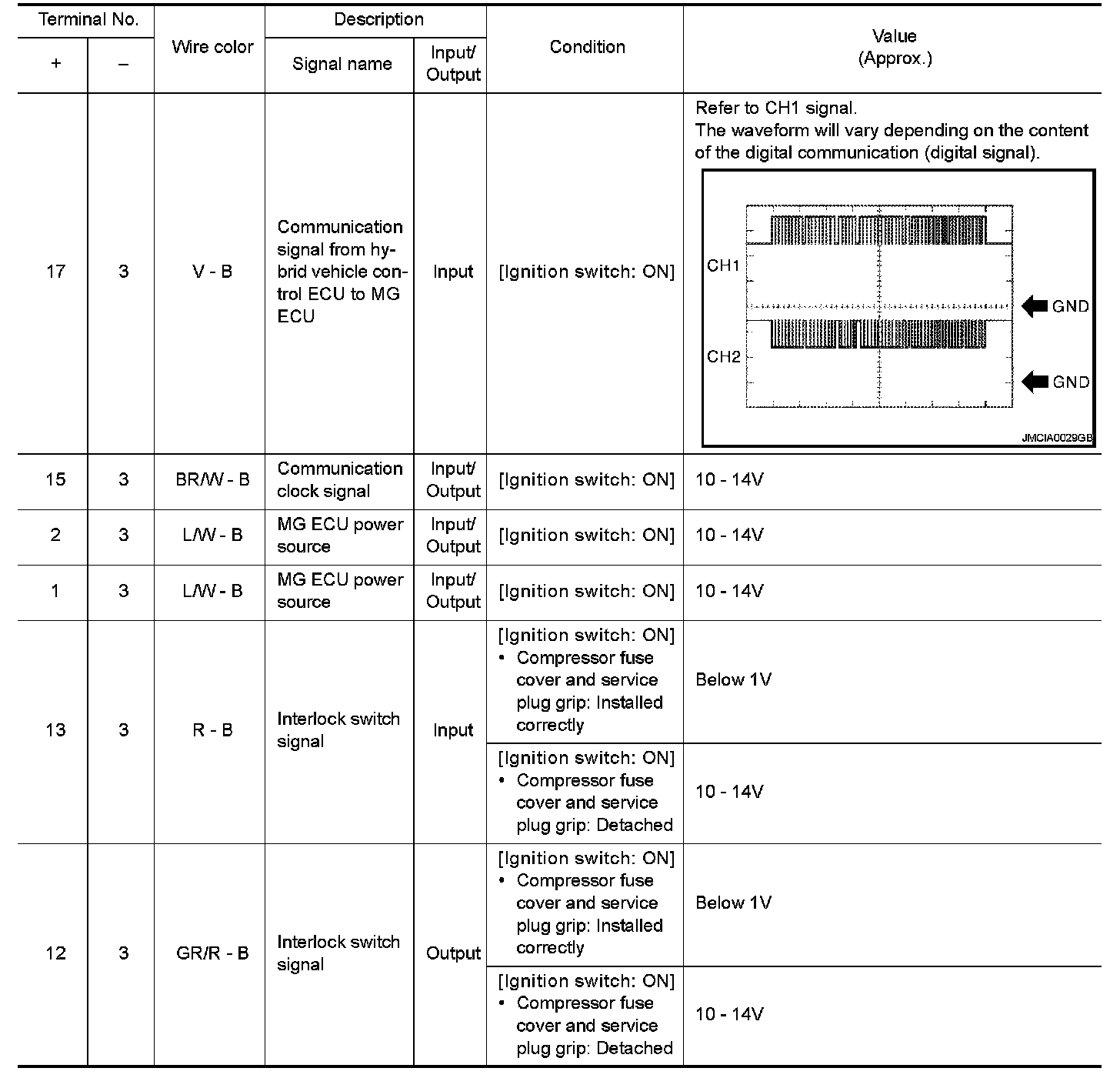

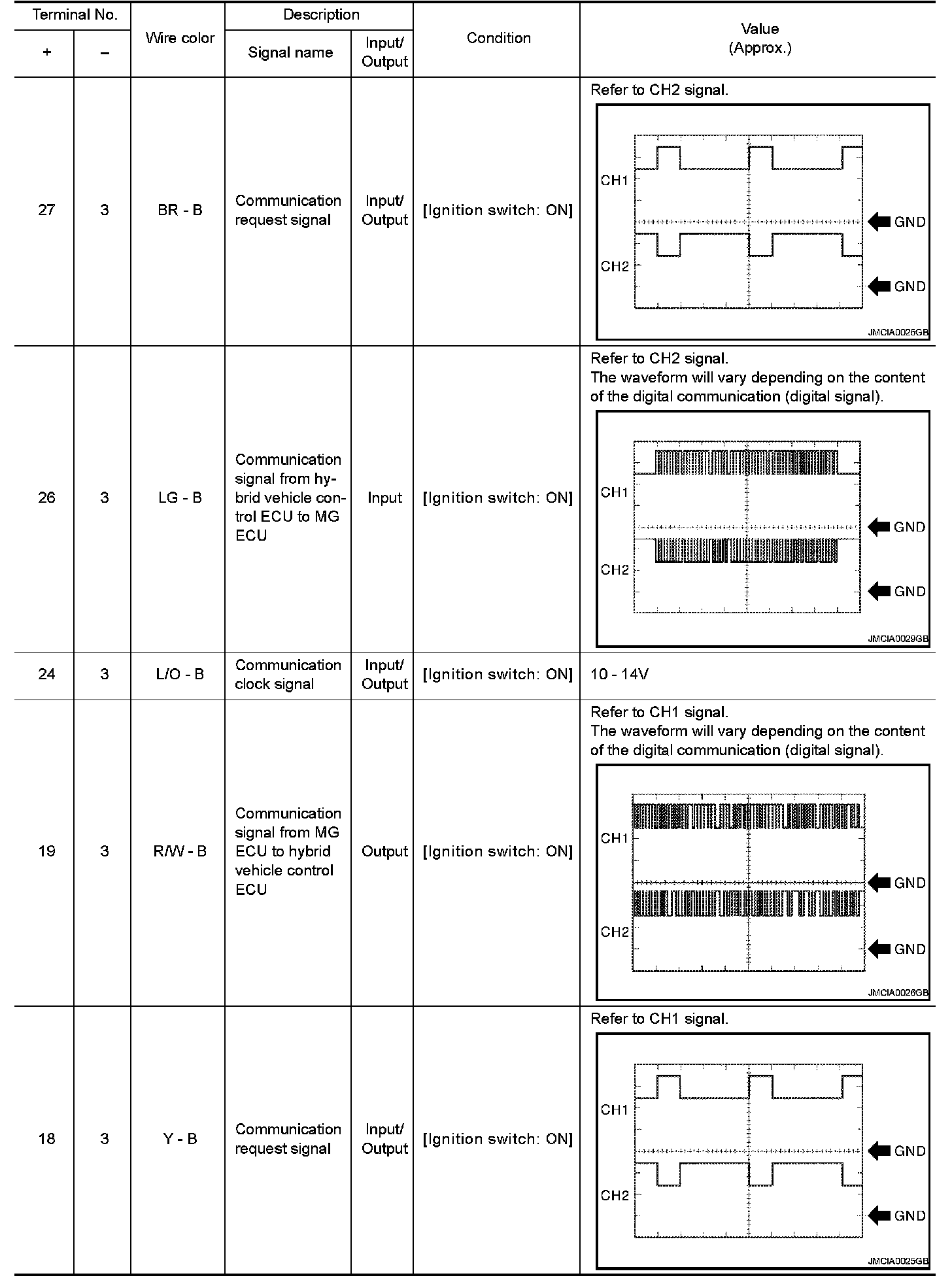

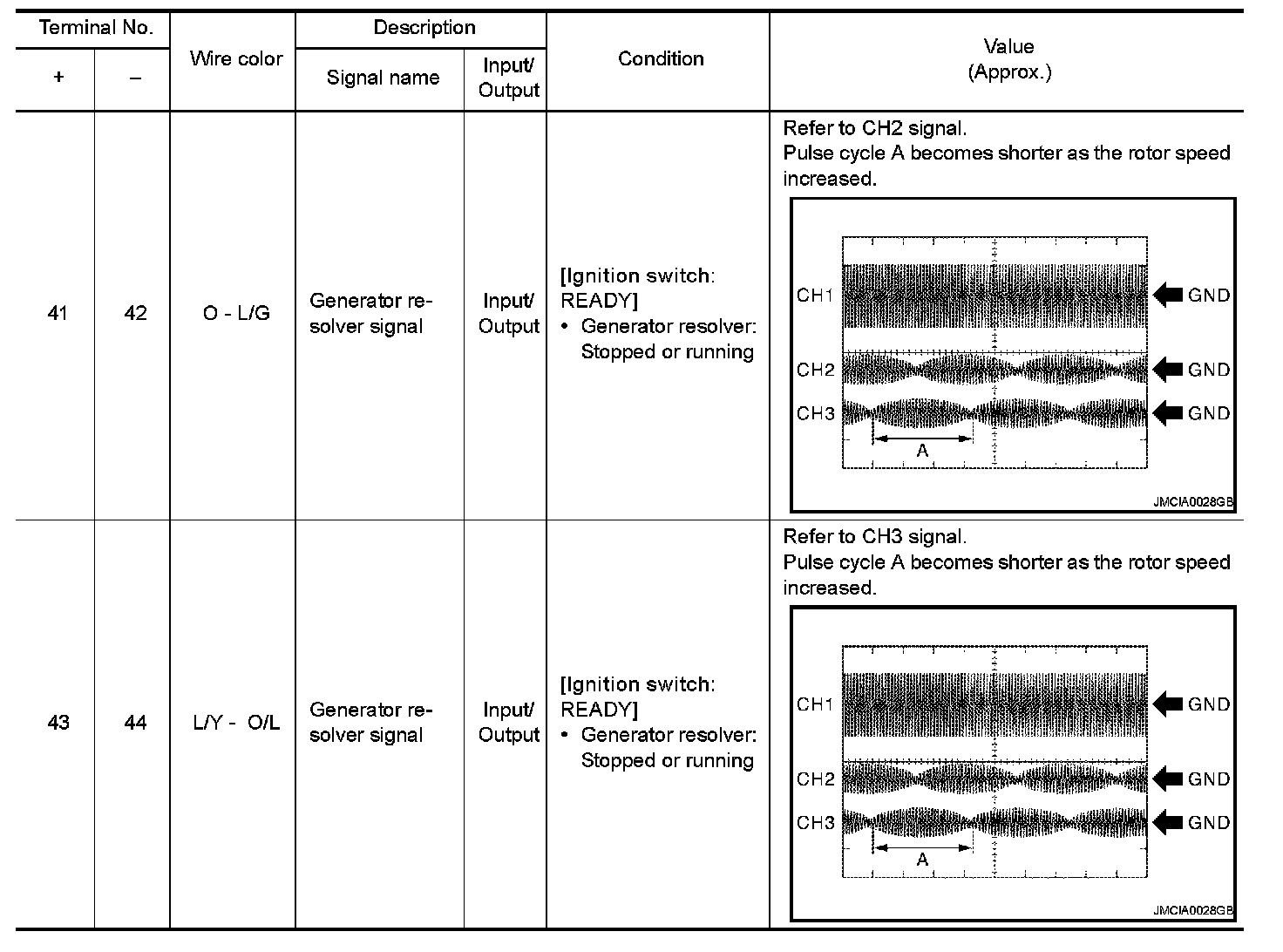

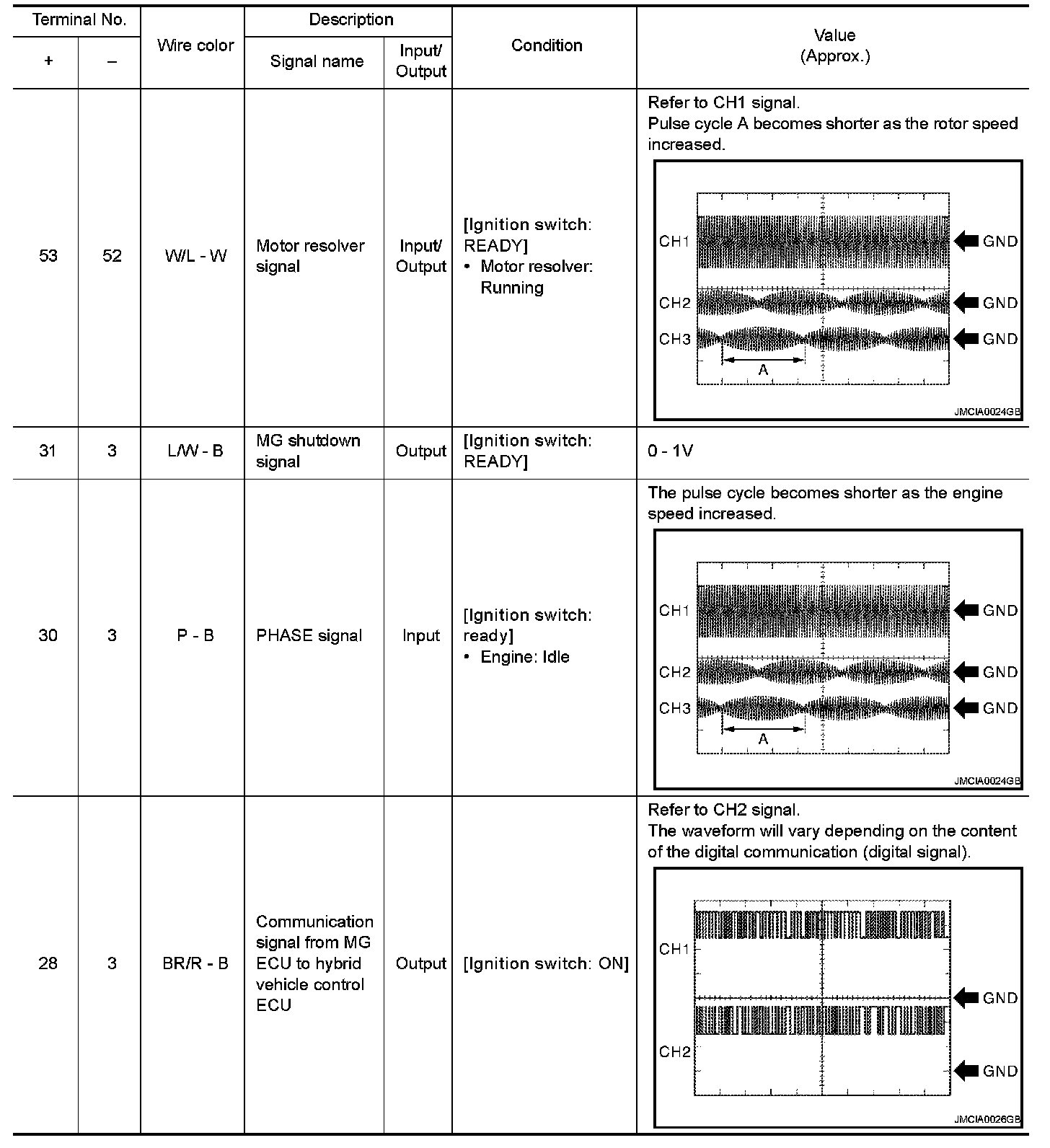

Terminals And Reference Values (Part 1):
Terminals And Reference Values (Part 2):
Terminals And Reference Values (Part 3):
Terminals And Reference Values (Part 4):
Terminals And Reference Values (Part 5):
PHYSICAL VALUES
NOTE:
- Do not measure voltage or waveform directly at the sealed side of the inverter with converter assembly connectors. Doing so may damage the connectors because these connectors are waterproof.
- Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.
