Diagnosis Tool Function

Diagnosis Tool Function




DESCRIPTION

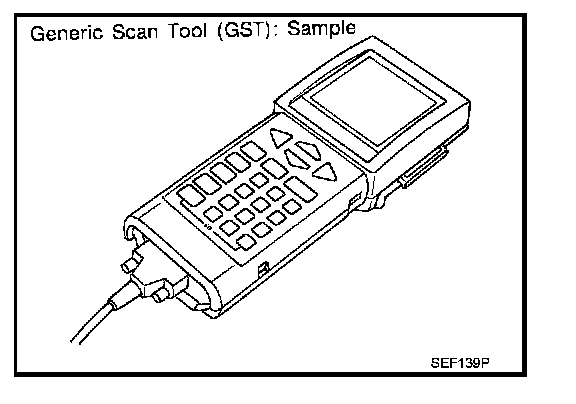

Generic Scan Tool (OBD II scan tool) complying with SAE J1978 has 8 different functions explained.

ISO9141 is used as the protocol.
The name GST or Generic Scan Tool is used.

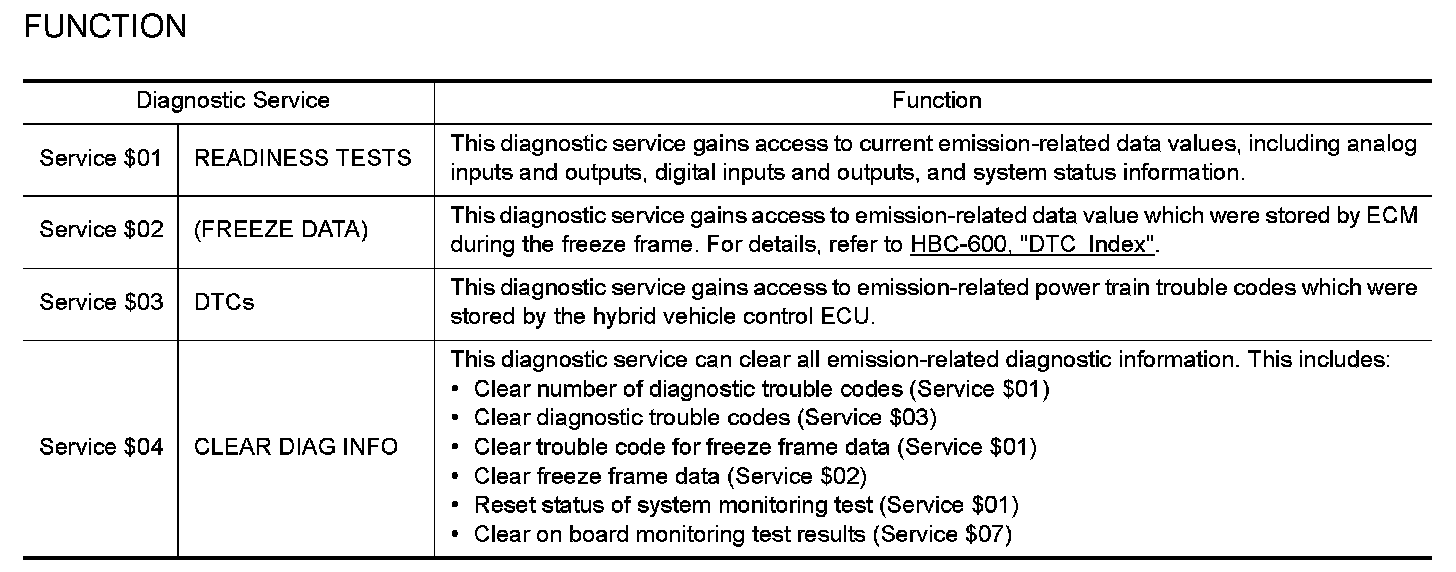

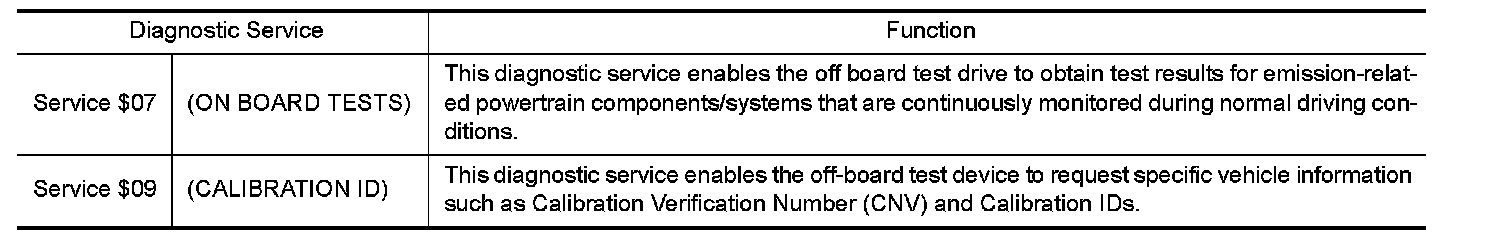

FUNCTION
