BCM (Body Control Module)

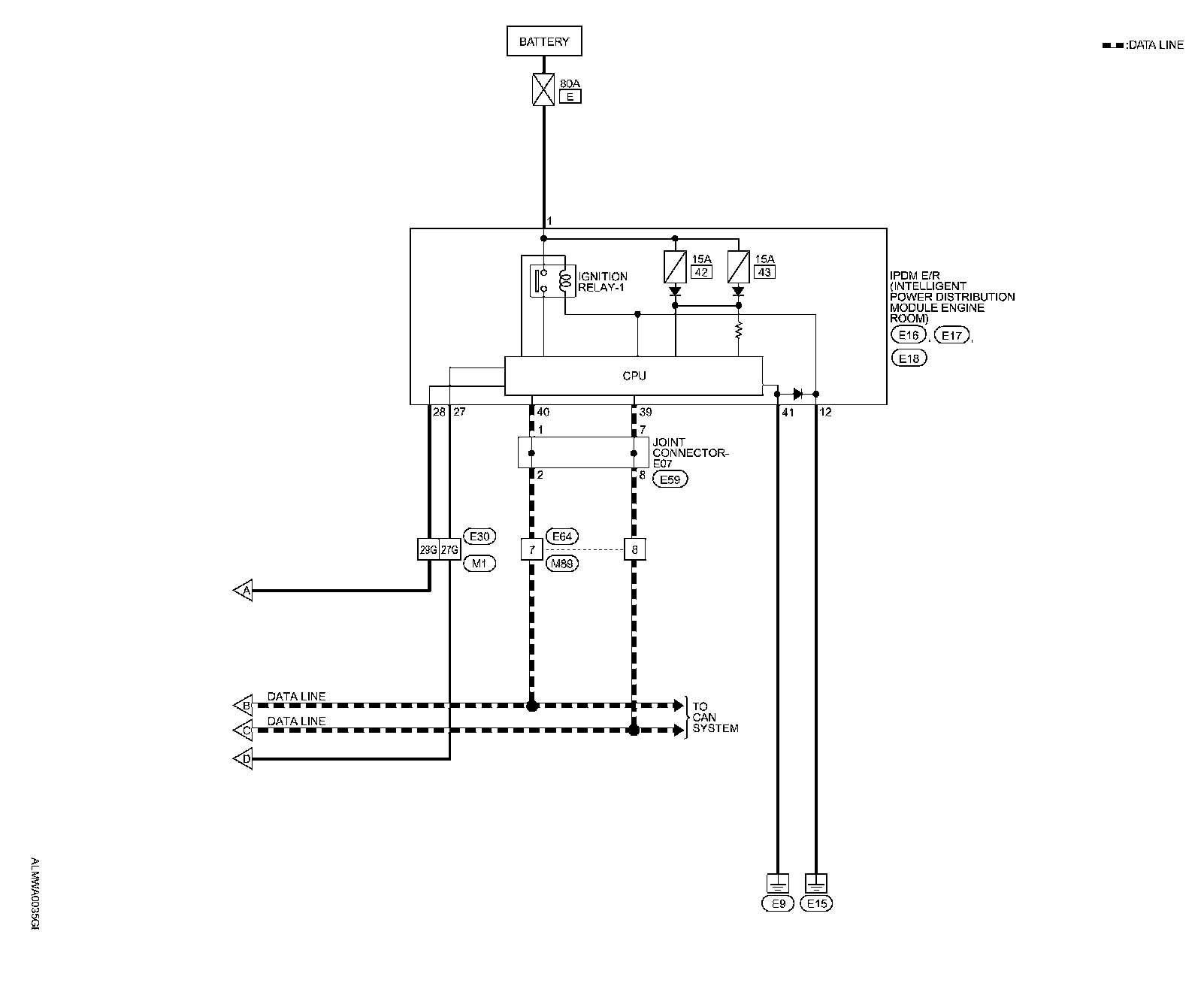

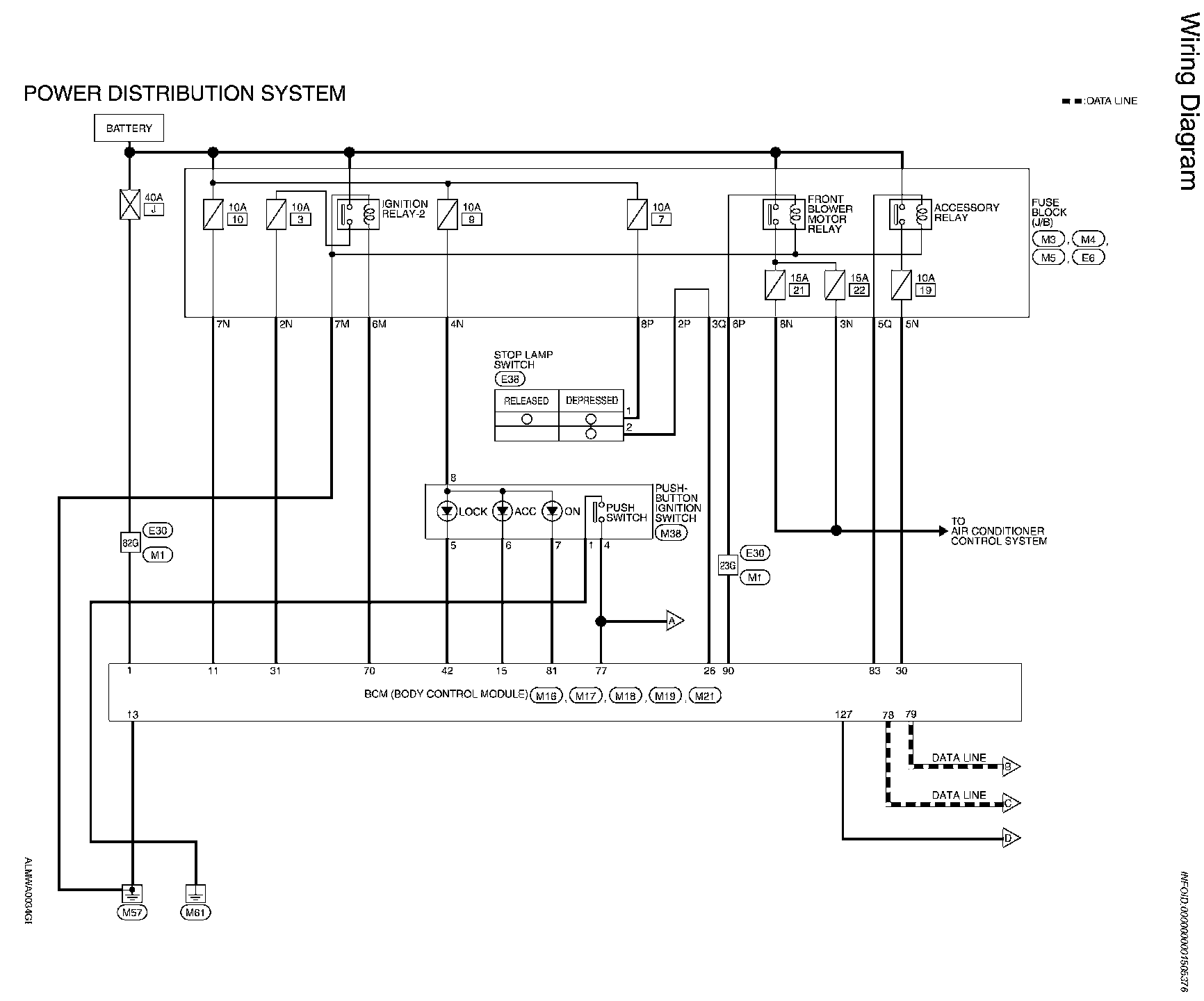

Wiring Diagram - Power Distribution System (Part 1):

Wiring Diagram - Power Distribution System (Part 2):

Wiring Diagram - Power Distribution System (Part 3):

Wiring Diagram - Power Distribution System (Part 4):

Wiring Diagram - Power Distribution System (Part 5):

Wiring Diagram - Power Distribution System (Part 6):
