Pinout Values and Diagnostic Parameters

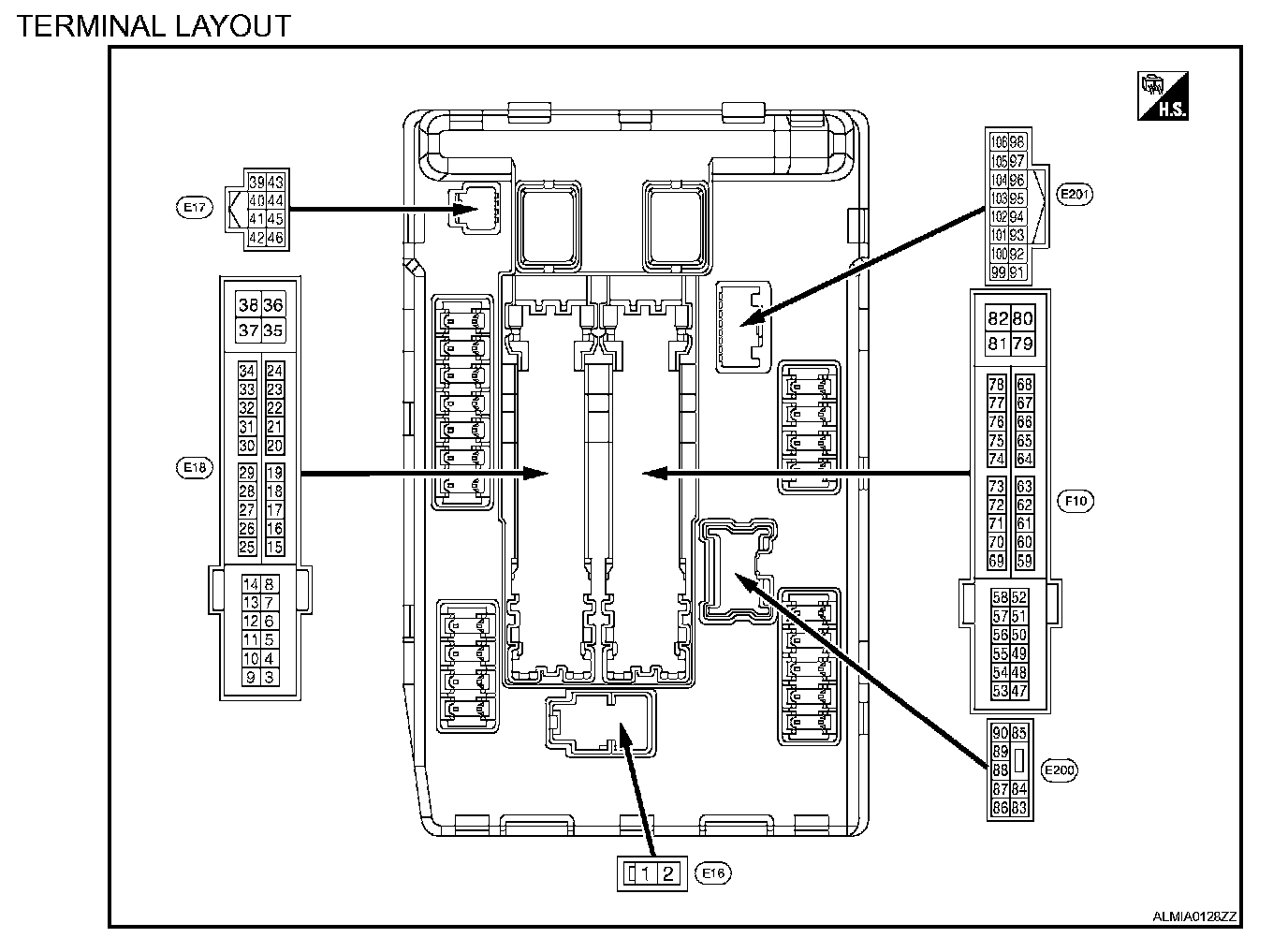

Power Distribution System Terminal Layout:

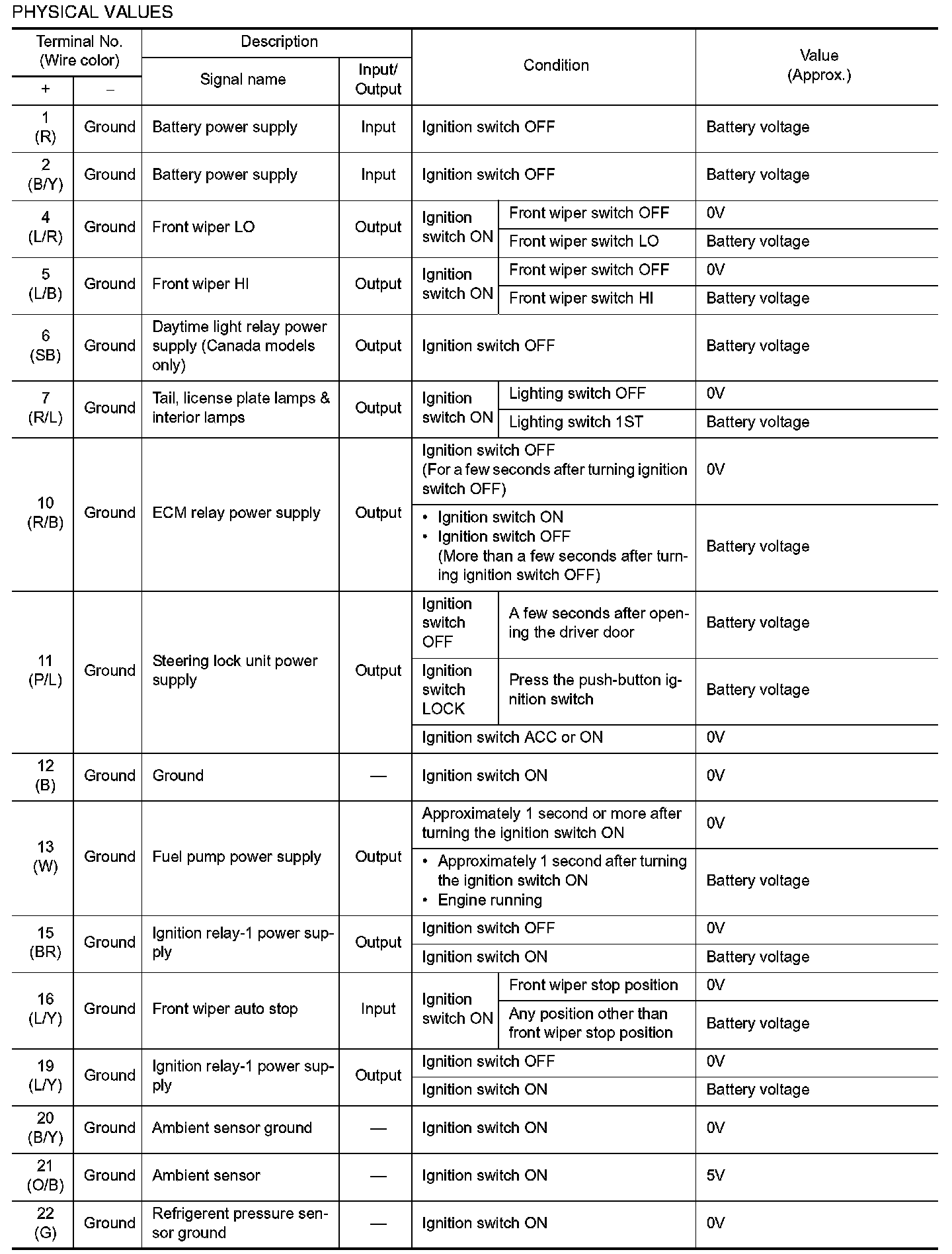

Terminals And Reference Values (Part 1):

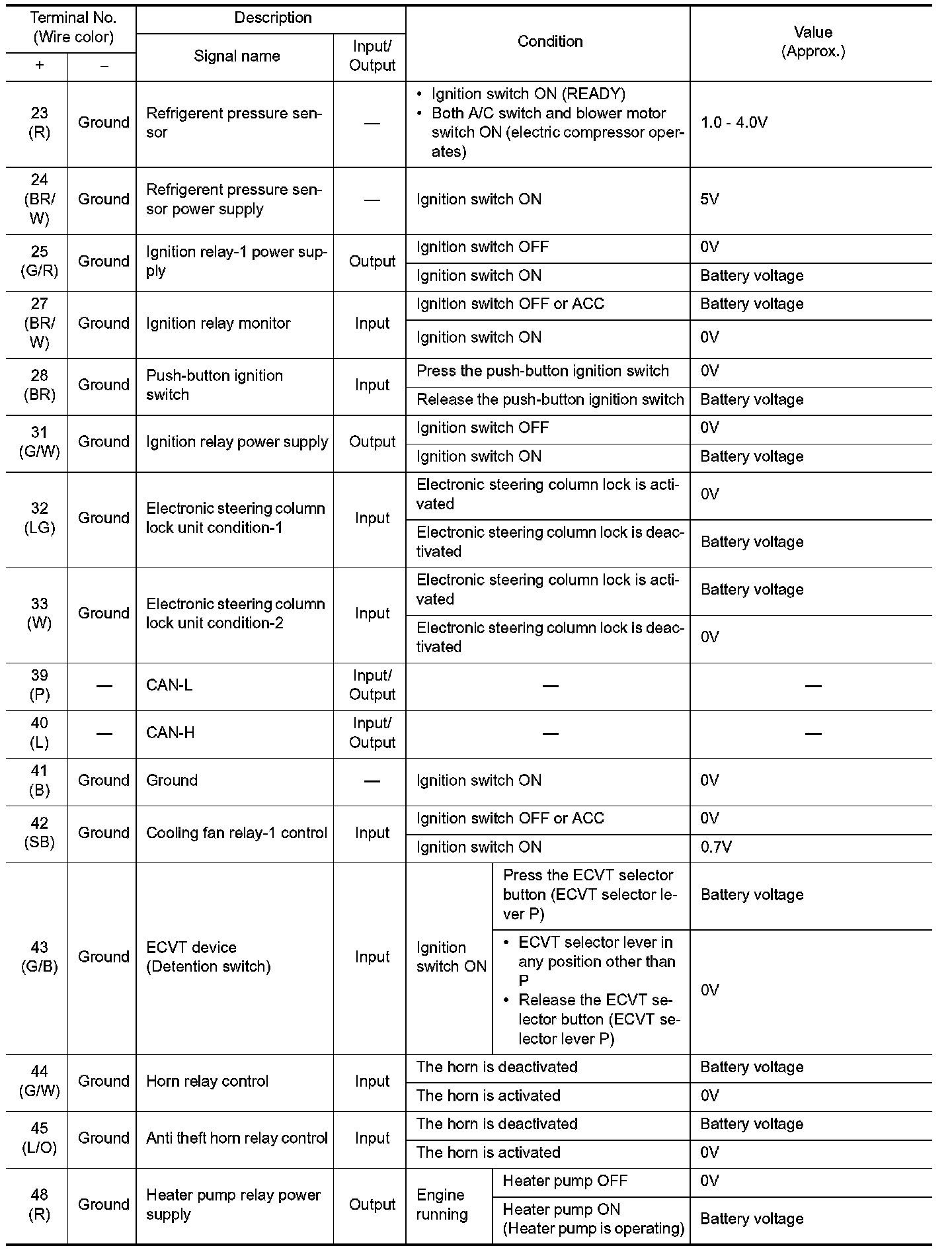

Terminals And Reference Values (Part 2):

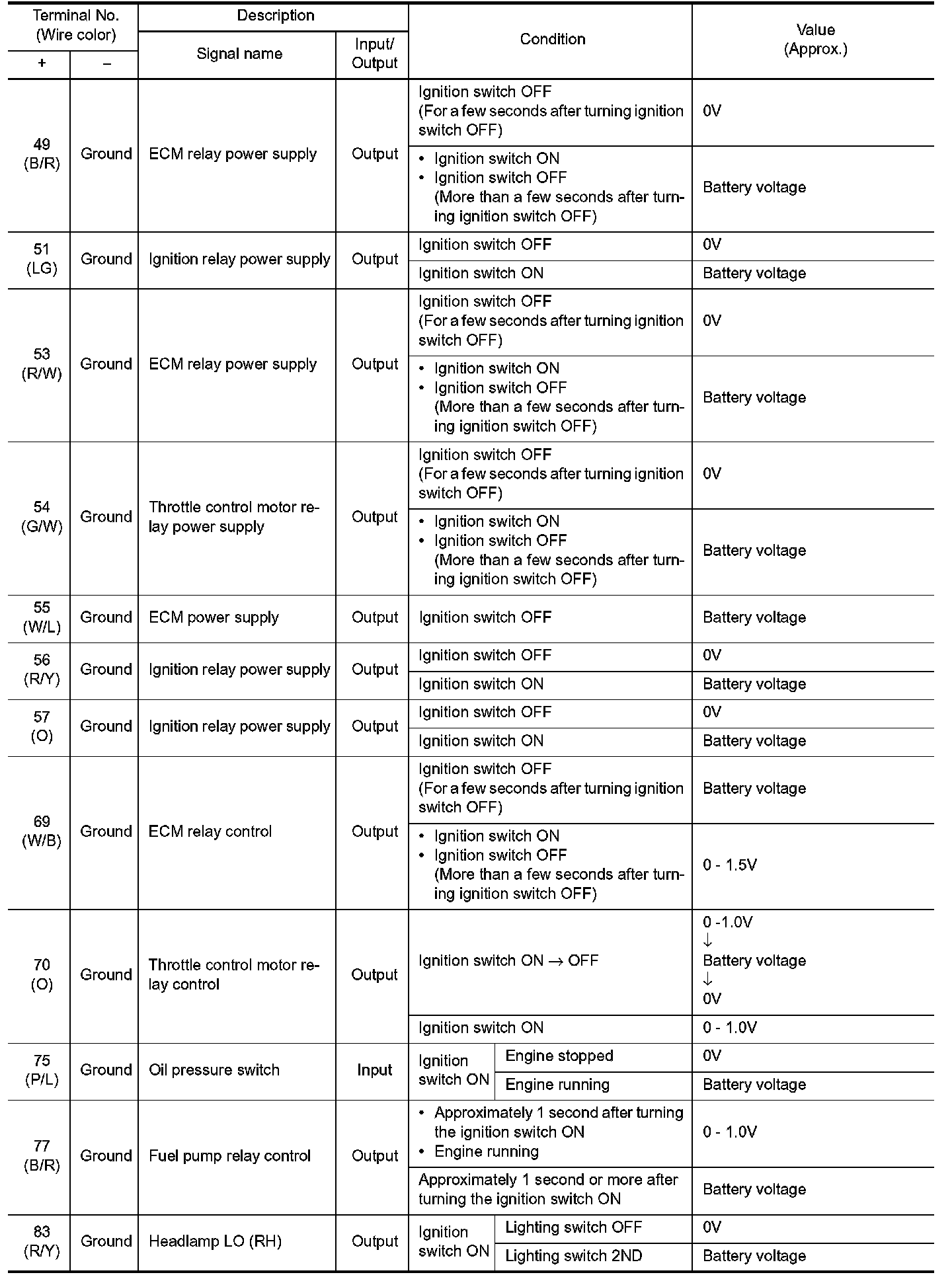

Terminals And Reference Values (Part 3):

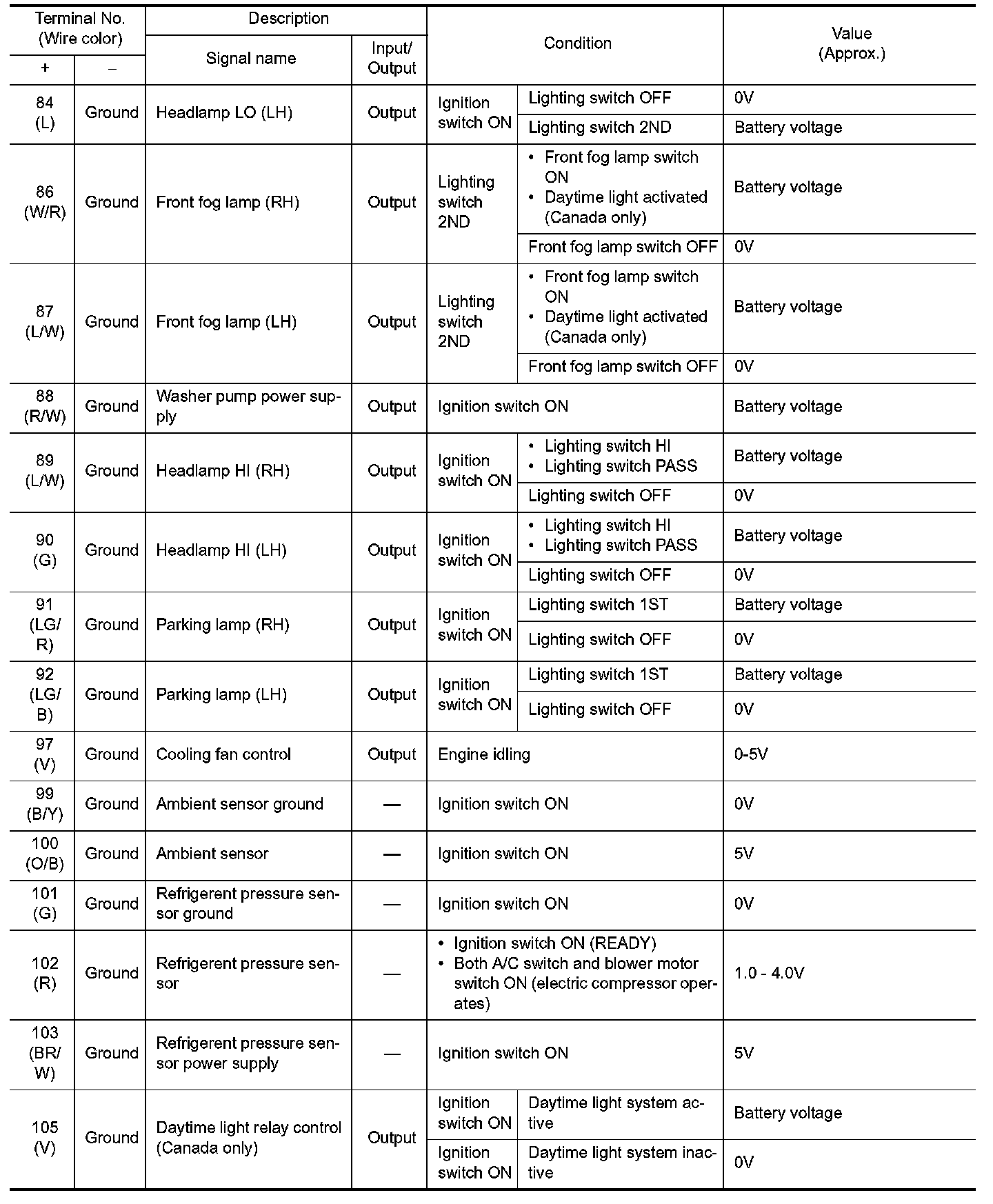

Terminals And Reference Values (Part 4):
