Intake Manifold

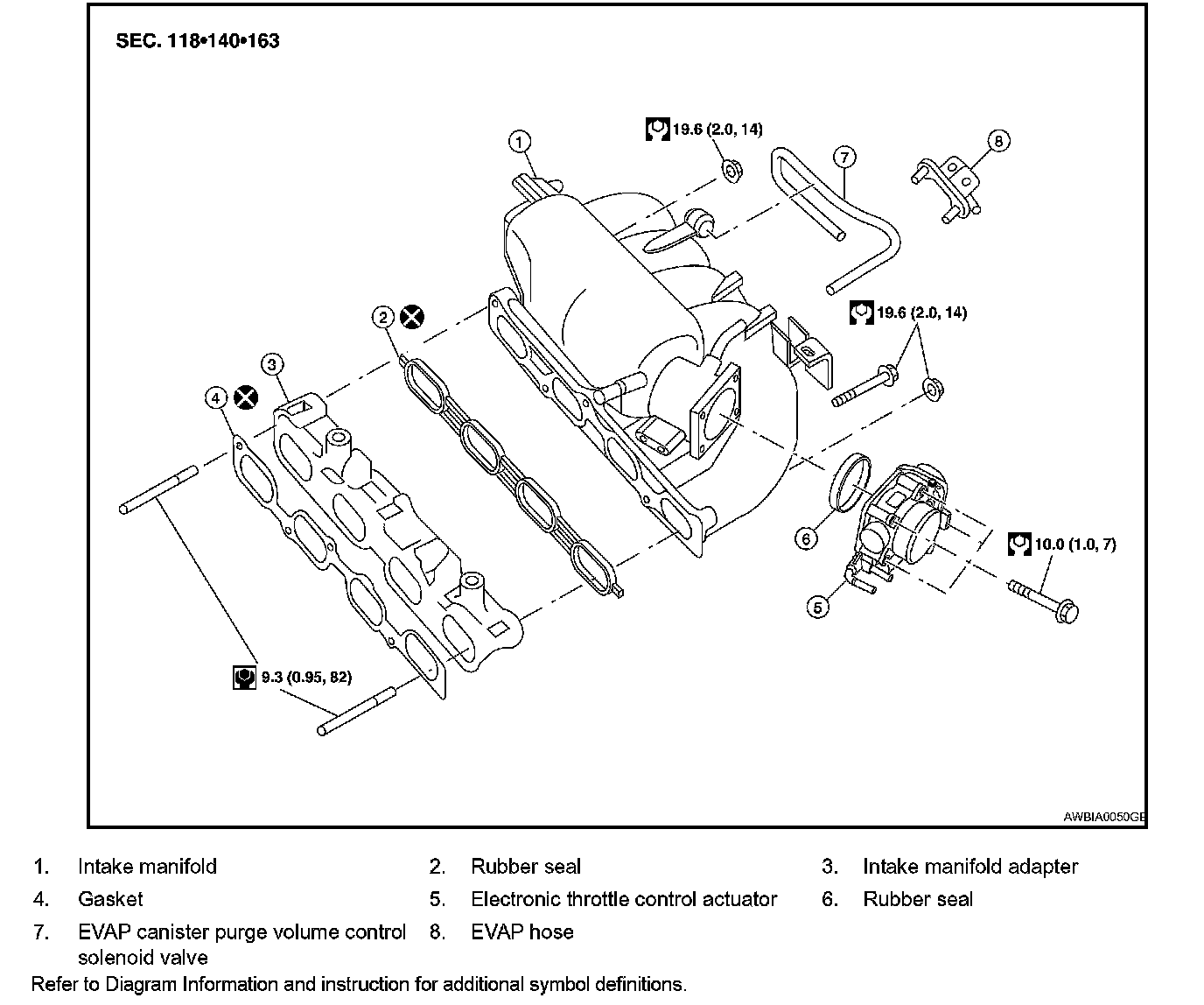

Exploded View EM-24:

Intake Manifold

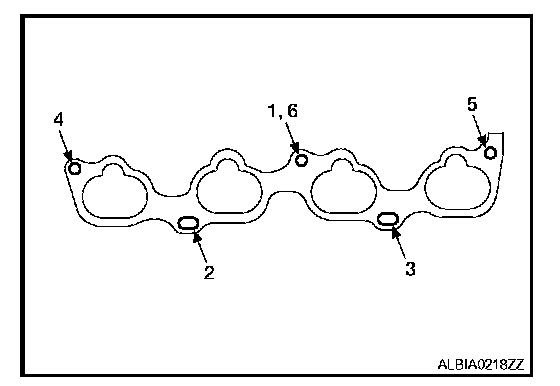

Tightening Intake Manifold Bolts and Nuts





^ Tighten in numerical order as shown.

CAUTION: After tightening No.6, retighten the No.1 bolt to specification.
