Encoder

ENCODER

DRIVER SIDE

DRIVER SIDE: Description
Detects condition of the front power window motor LH operation and transmits to main power window and door lock/unlock switch as pulse signal.

Step 1:

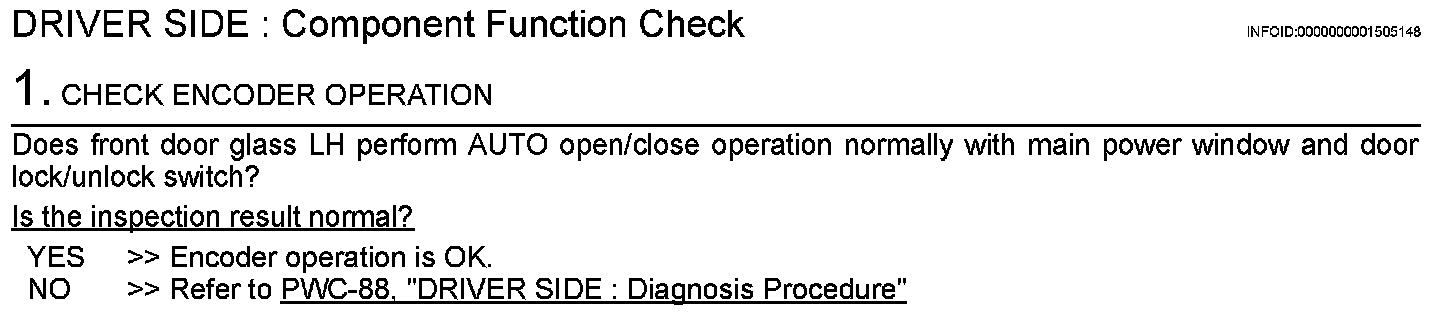

DRIVER SIDE: Component Function Check

Step 1-2:

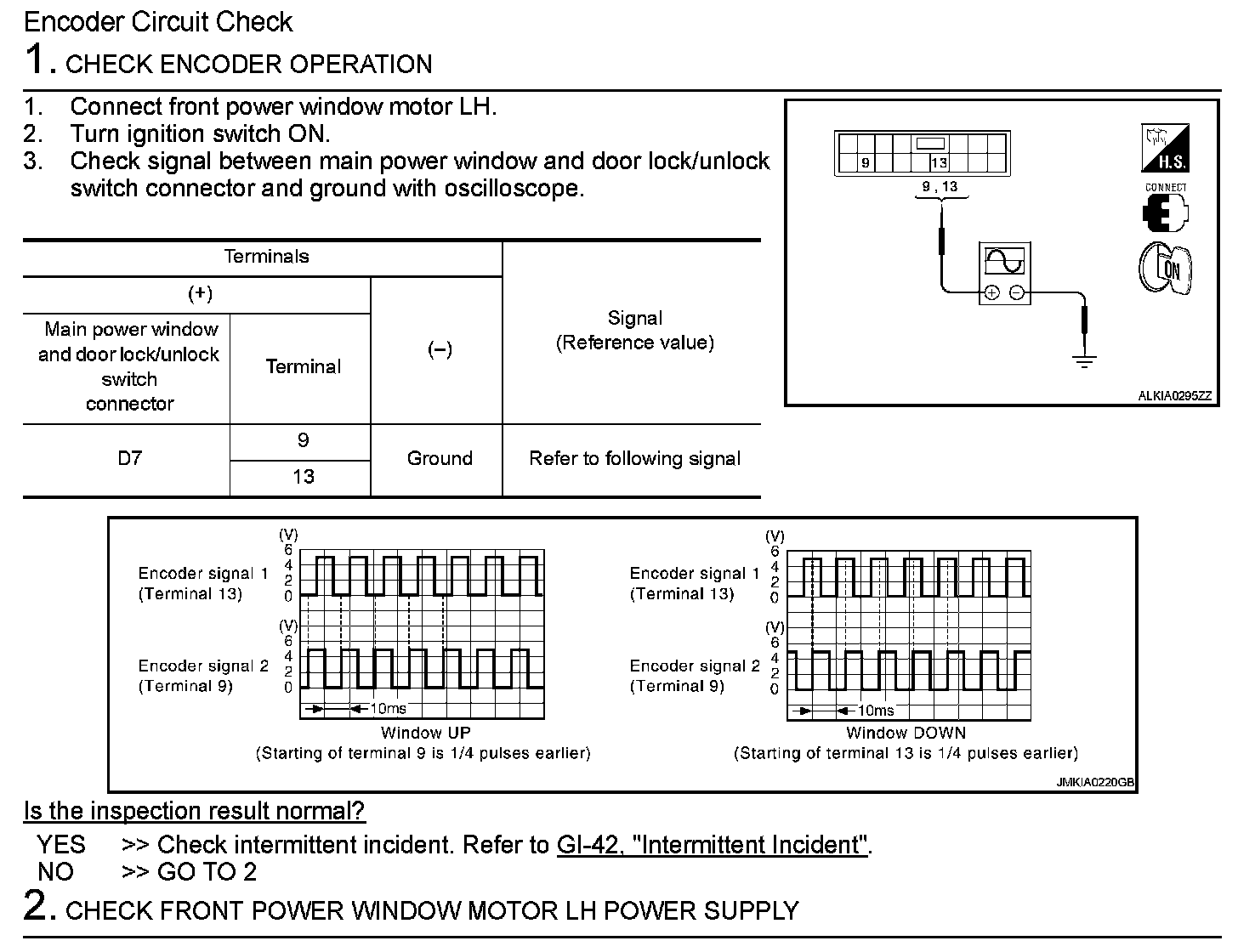

Step 2 (Continued)-5:

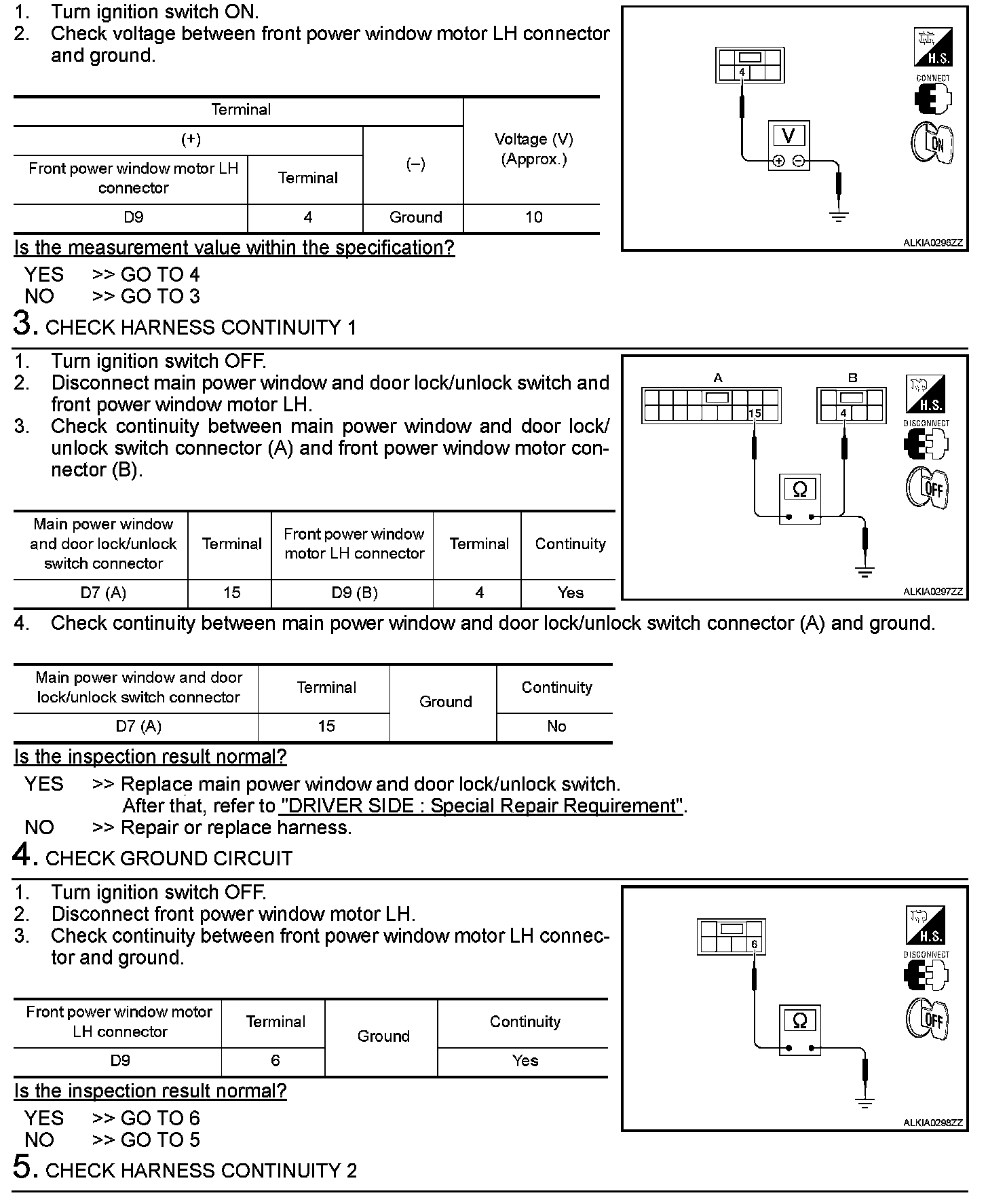

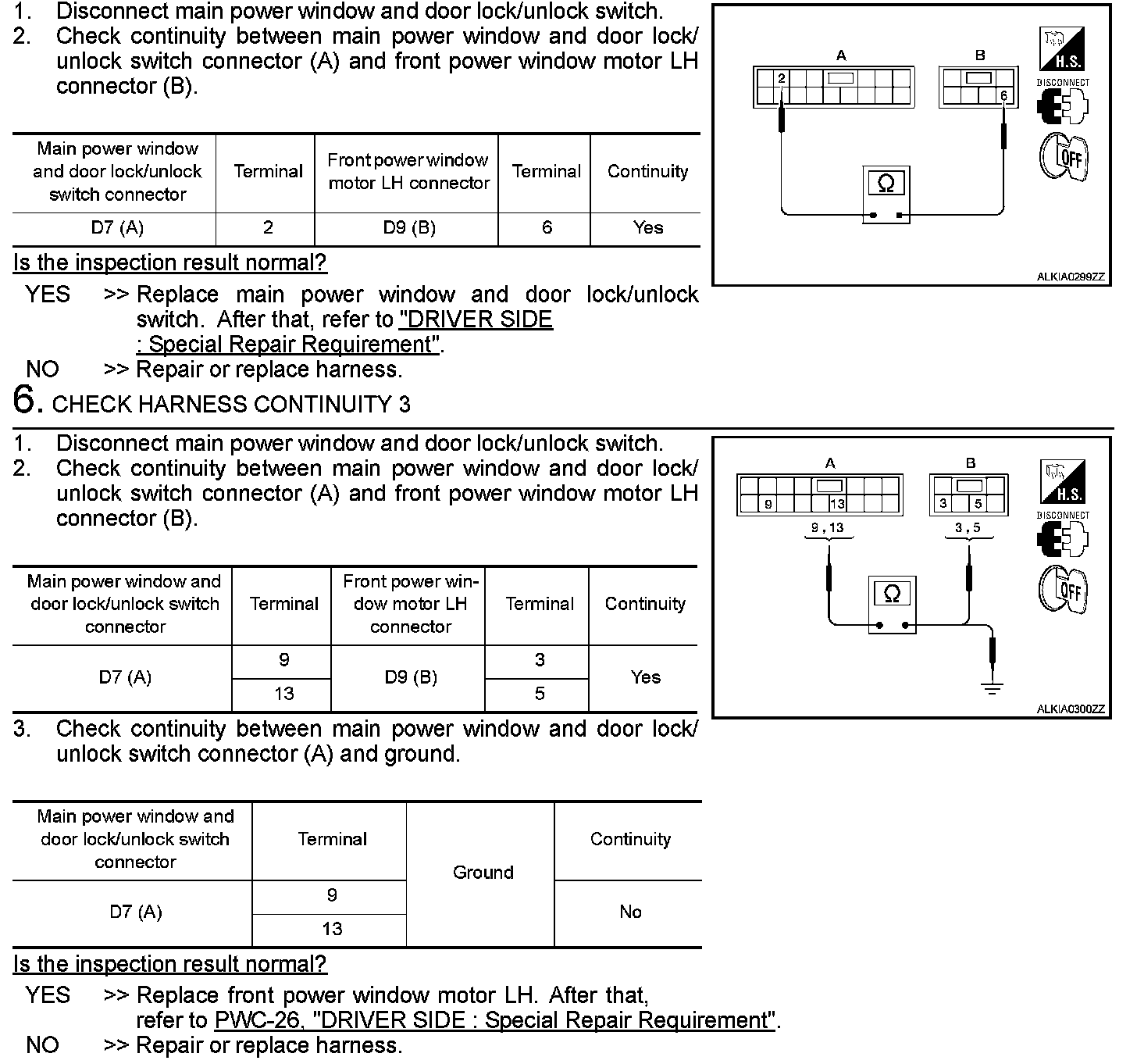

Step 5 (Continued)-6:

DRIVER SIDE: Diagnosis Procedure

Step 1:

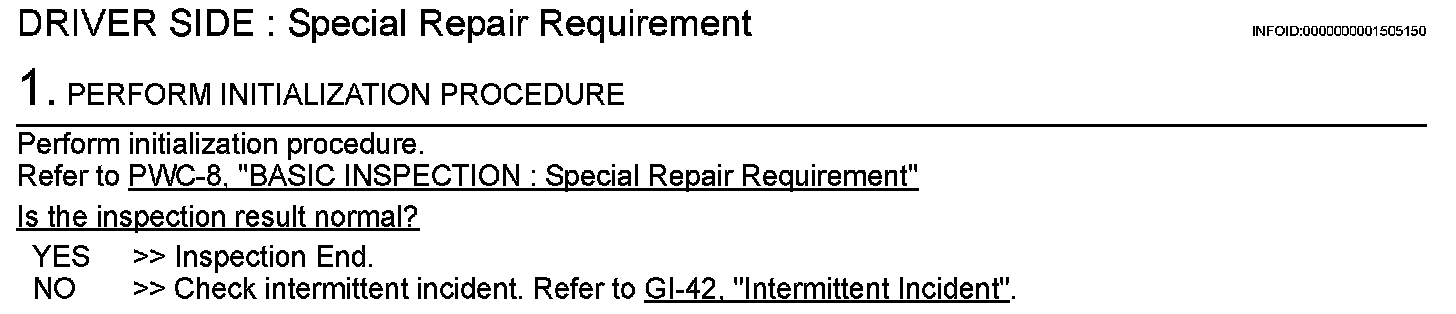

DRIVER SIDE: Special Repair Requirement
