Crankshaft, Engine

OUT-OF-ROUND AND TAPER OF CRANKSHAFT

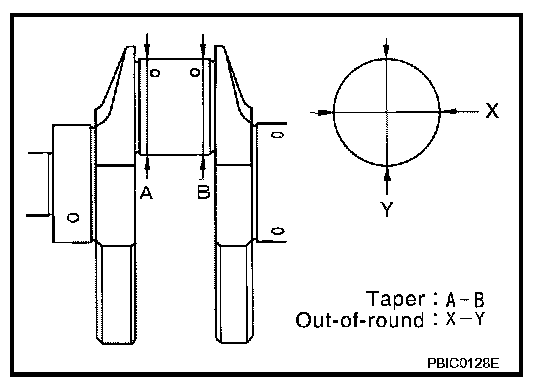

^ Measure the dimensions at four different points as shown on each journal and pin using a micrometer.
^ Out-of-round is indicated by the difference in dimensions between "X" and "Y" at "A" and "B".
^ Taper is indicated by the difference in dimension between "A" and "B" at "X" and "Y".

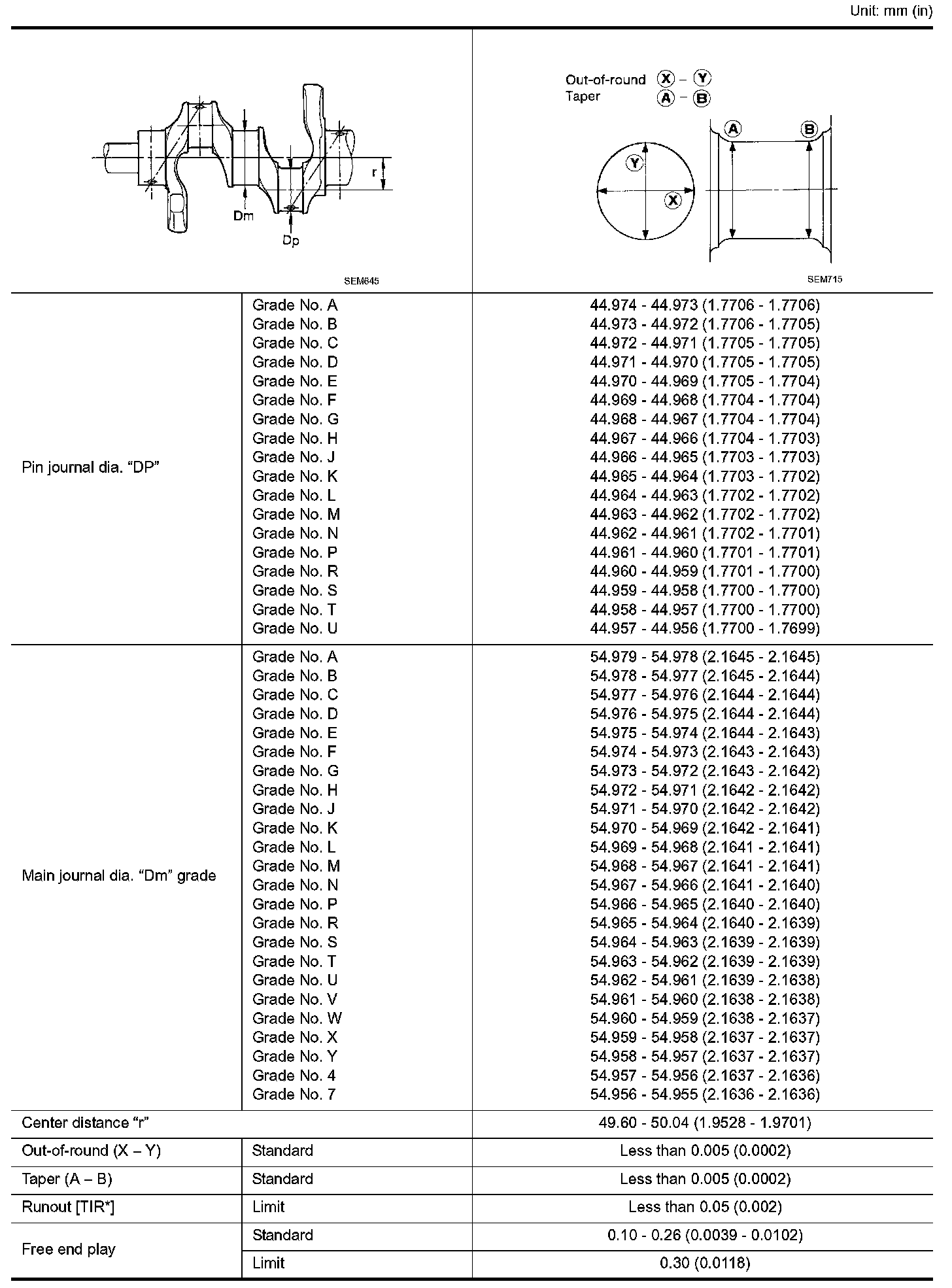

Limit
Out-of-round (X - Y): 0.005 mm (0.0002 in)
Taper (A - B): 0.005 mm (0.0002 in)

CRANKSHAFT RUNOUT

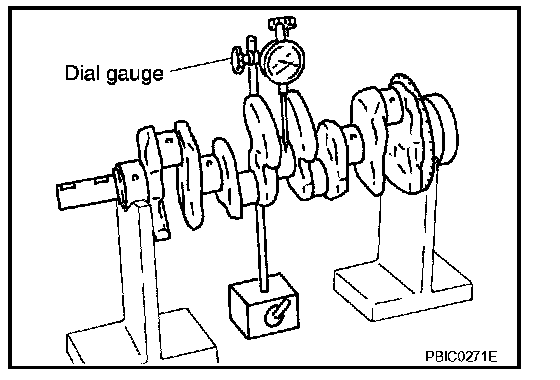

^ Place a V-block on a precise flat table to support the journals on both ends of the crankshaft.
^ Place a dial gauge straight up on the No. 3 journal.
^ While rotating the crankshaft, read the movement of the pointer on the dial gauge, the total indicator reading.
Limit: Less than 0.05 mm (0.002 in)

Part 1:

Part 2:

CYLINDER BLOCK





CRANKSHAFT
