Intake Manifold

Intake Manifold

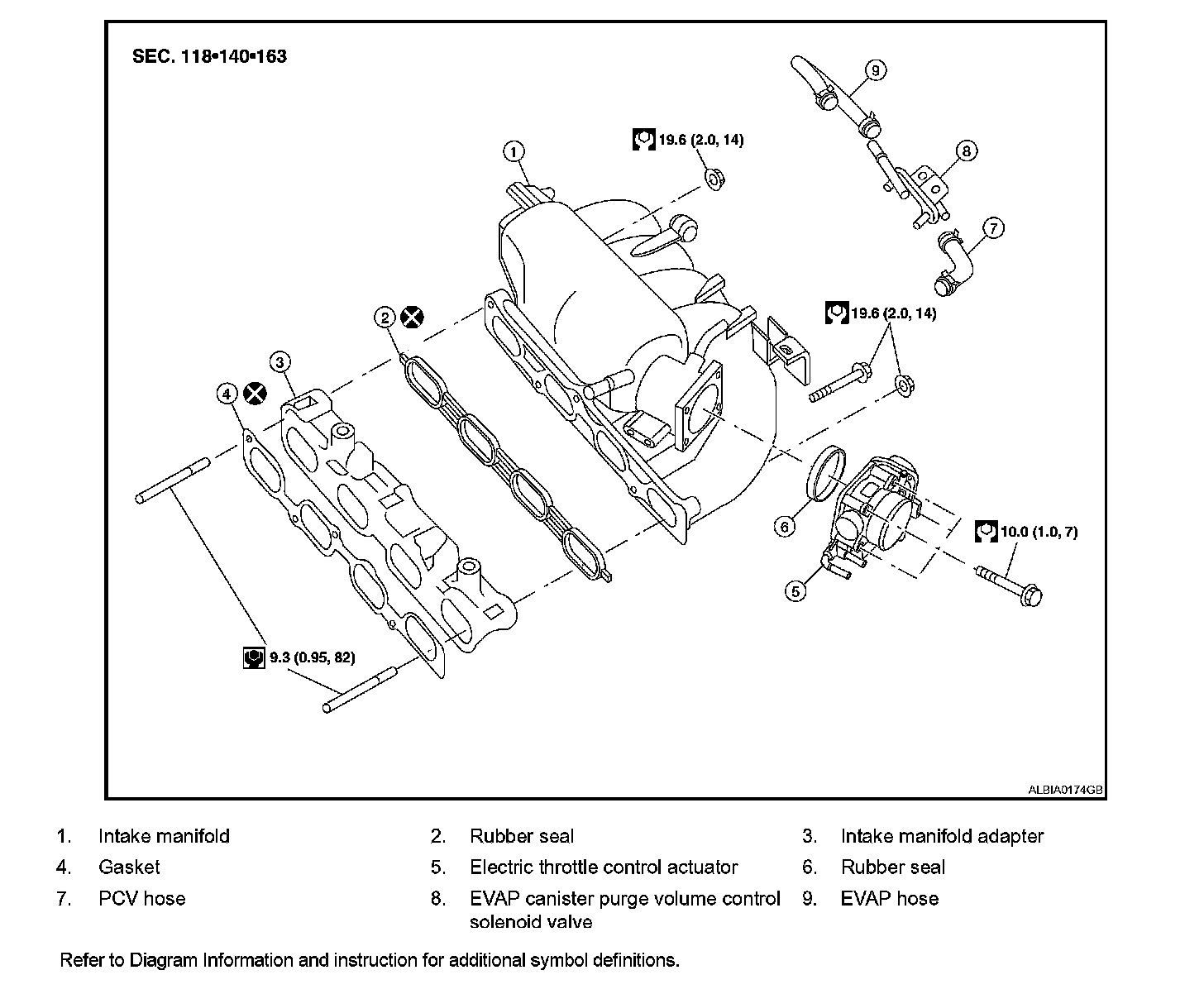

Exploded View EM-25:

^ Install the intake manifold bolts and nuts in the reverse order of removal, following the tightening sequences below.

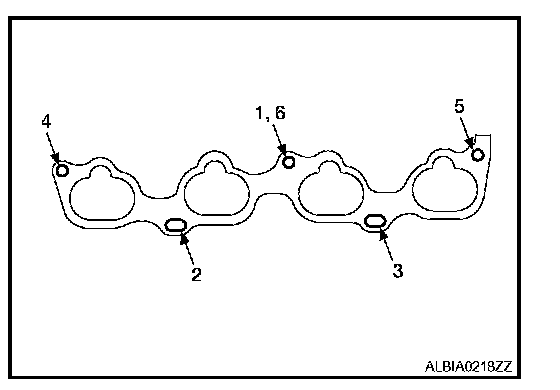

Tightening Intake Manifold Bolts and Nuts





^ Tighten in numerical order as shown.

CAUTION: After tightening No.6, retighten the No.1 bolt to specification.
