RE0F09B

Reference Value

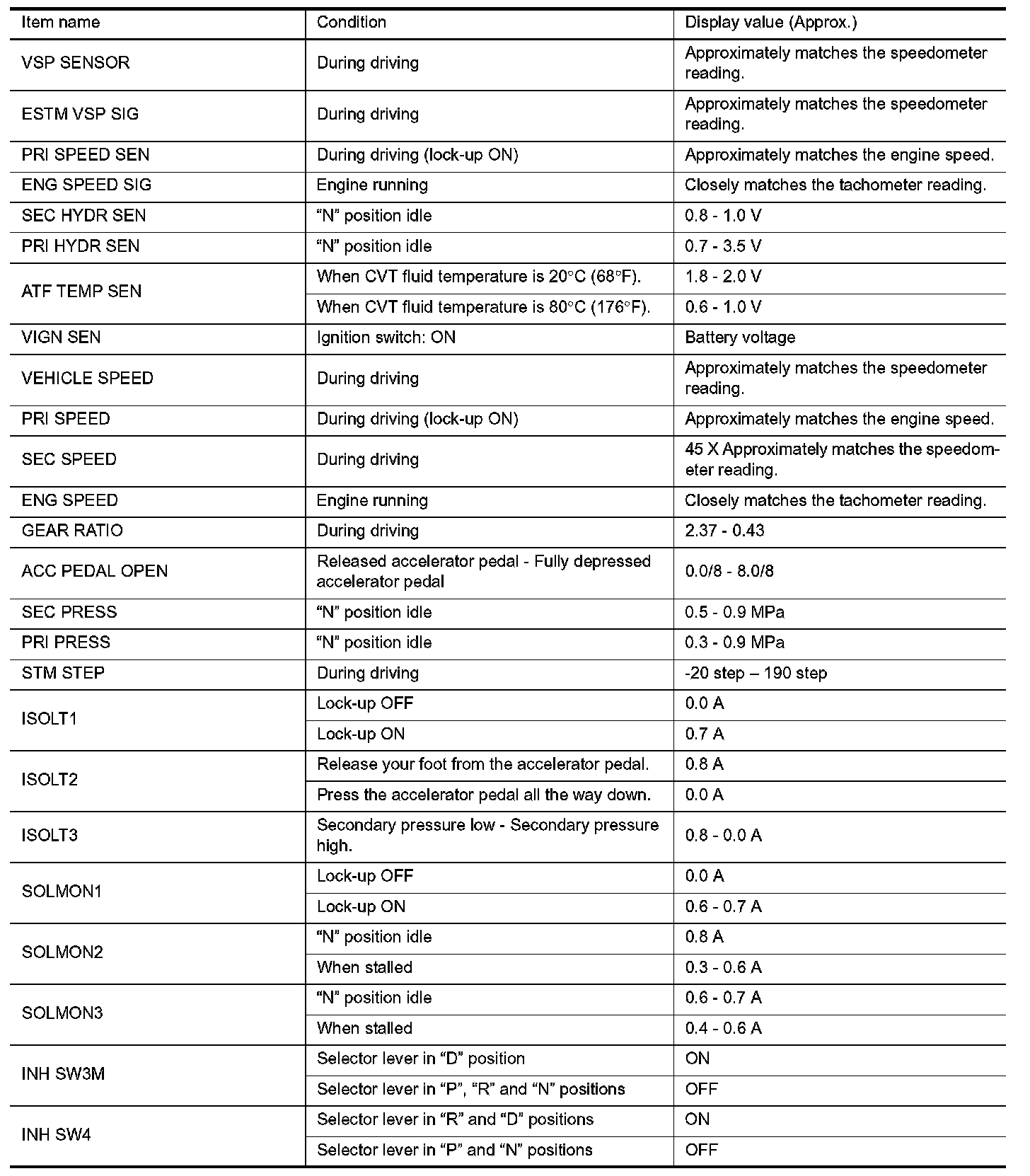

VALUES ON THE DIAGNOSIS TOOL (Part 1):

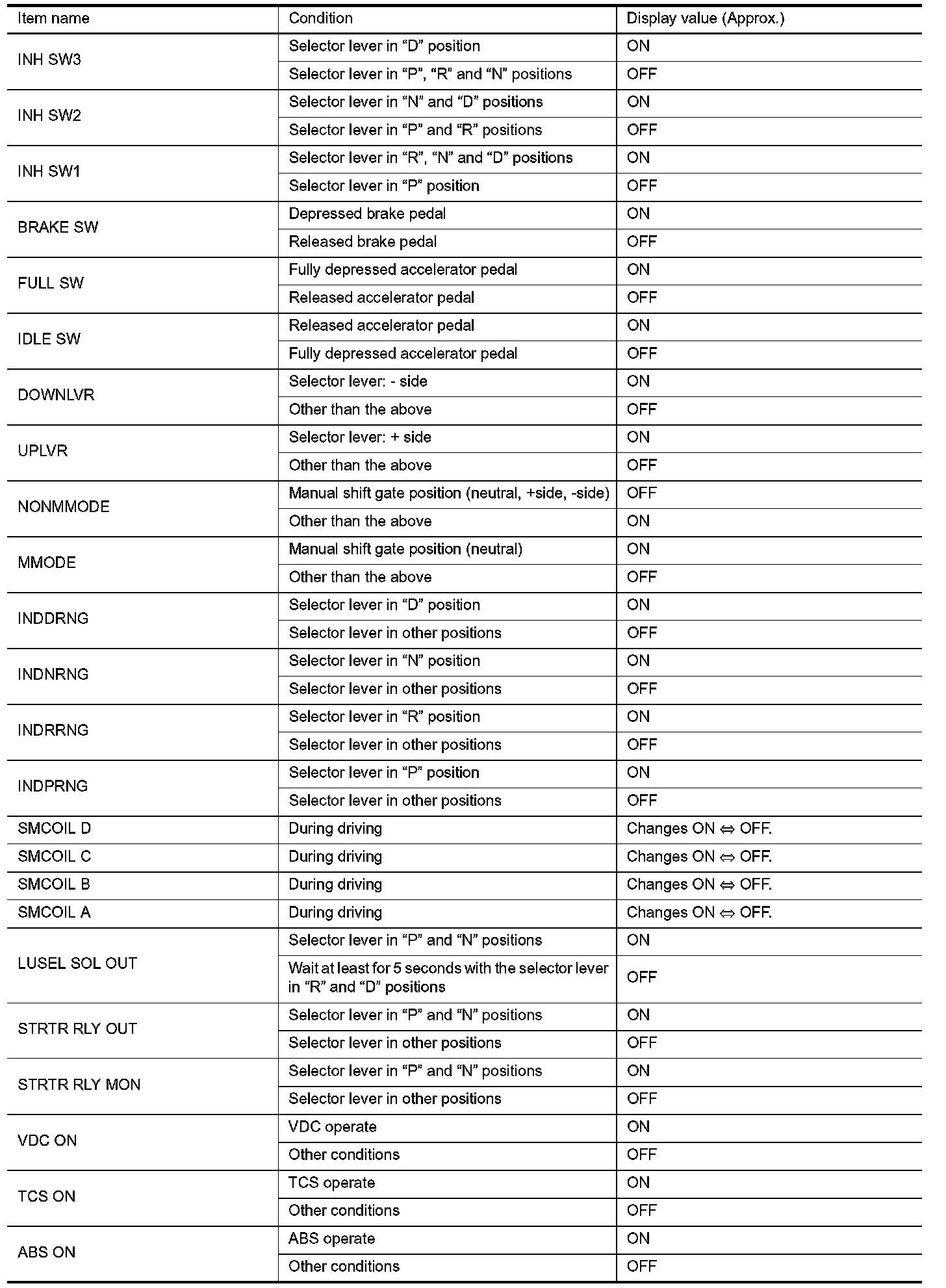

VALUES ON THE DIAGNOSIS TOOL (Part 2):

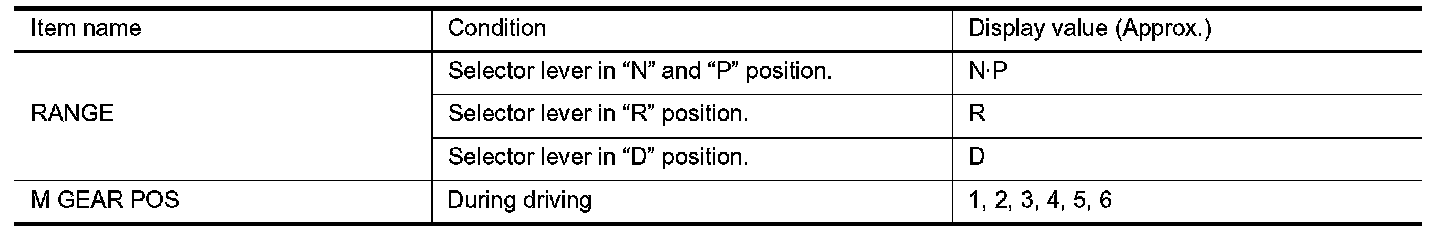

VALUES ON THE DIAGNOSIS TOOL (Part 3):

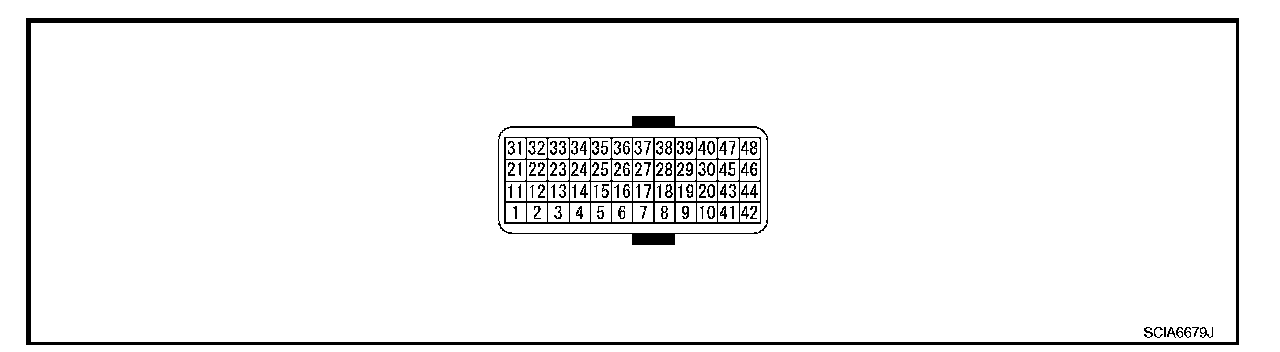

TERMINAL LAYOUT:

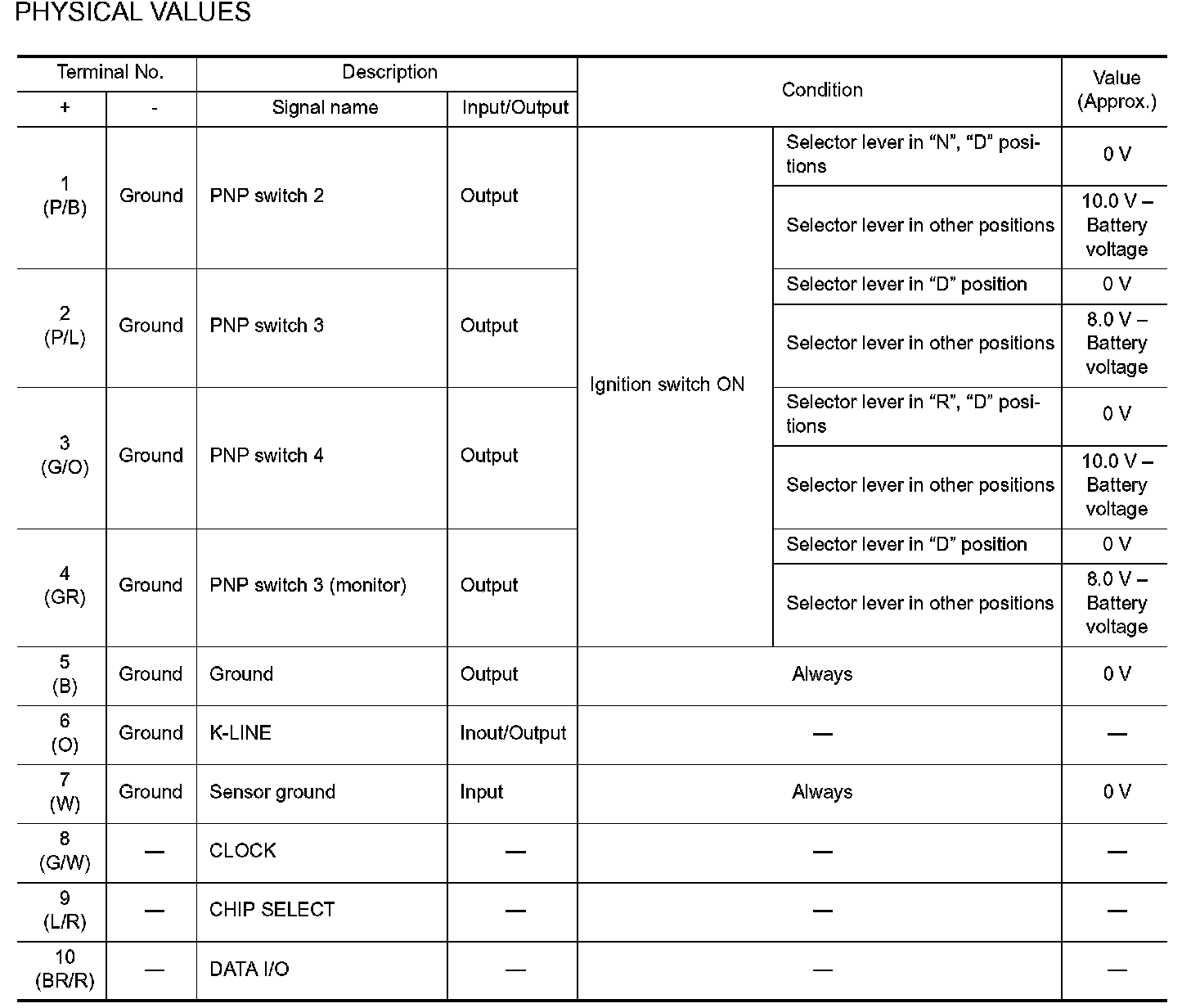

PHYSICAL VALUES (Part 1):

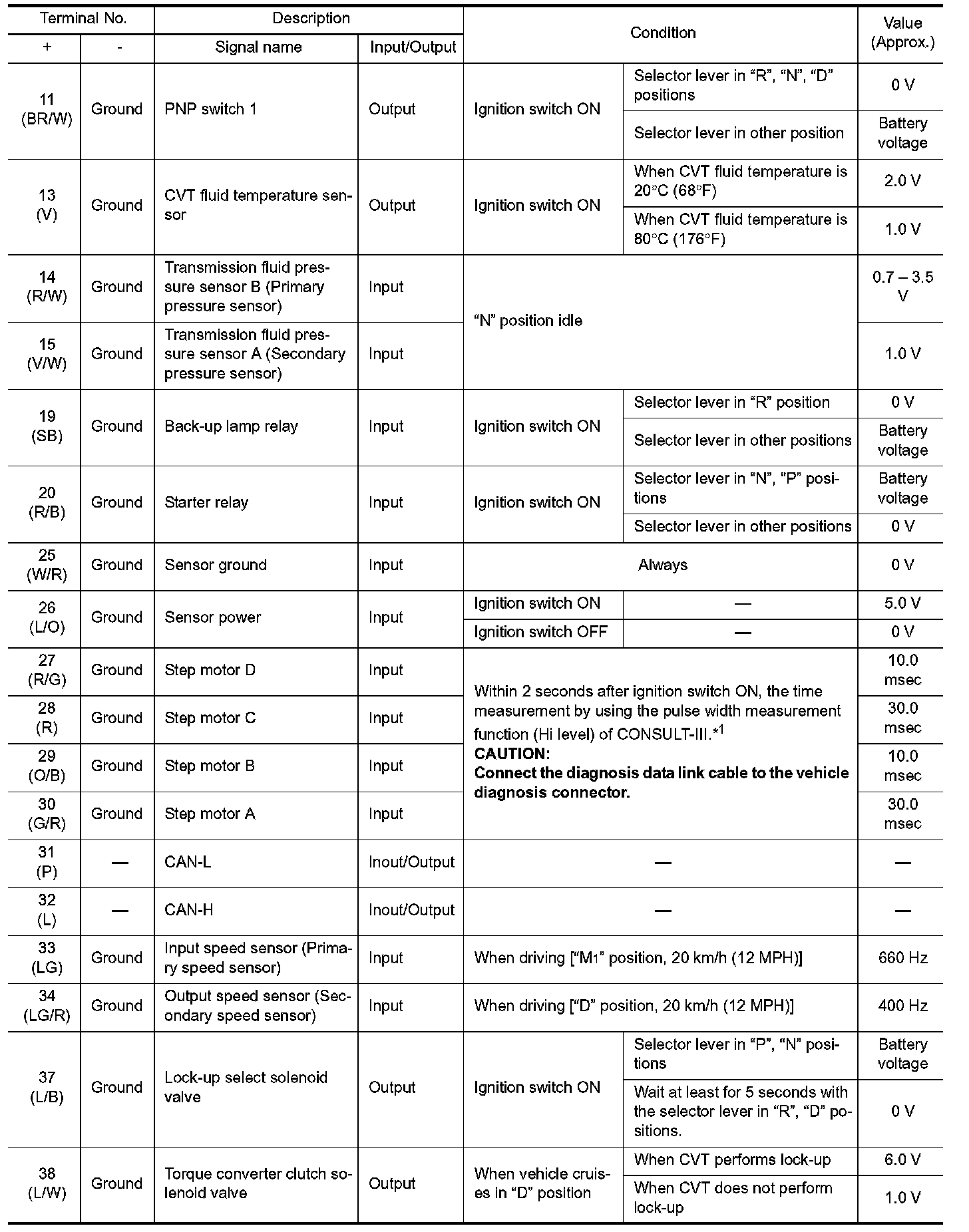

PHYSICAL VALUES (Part 2):

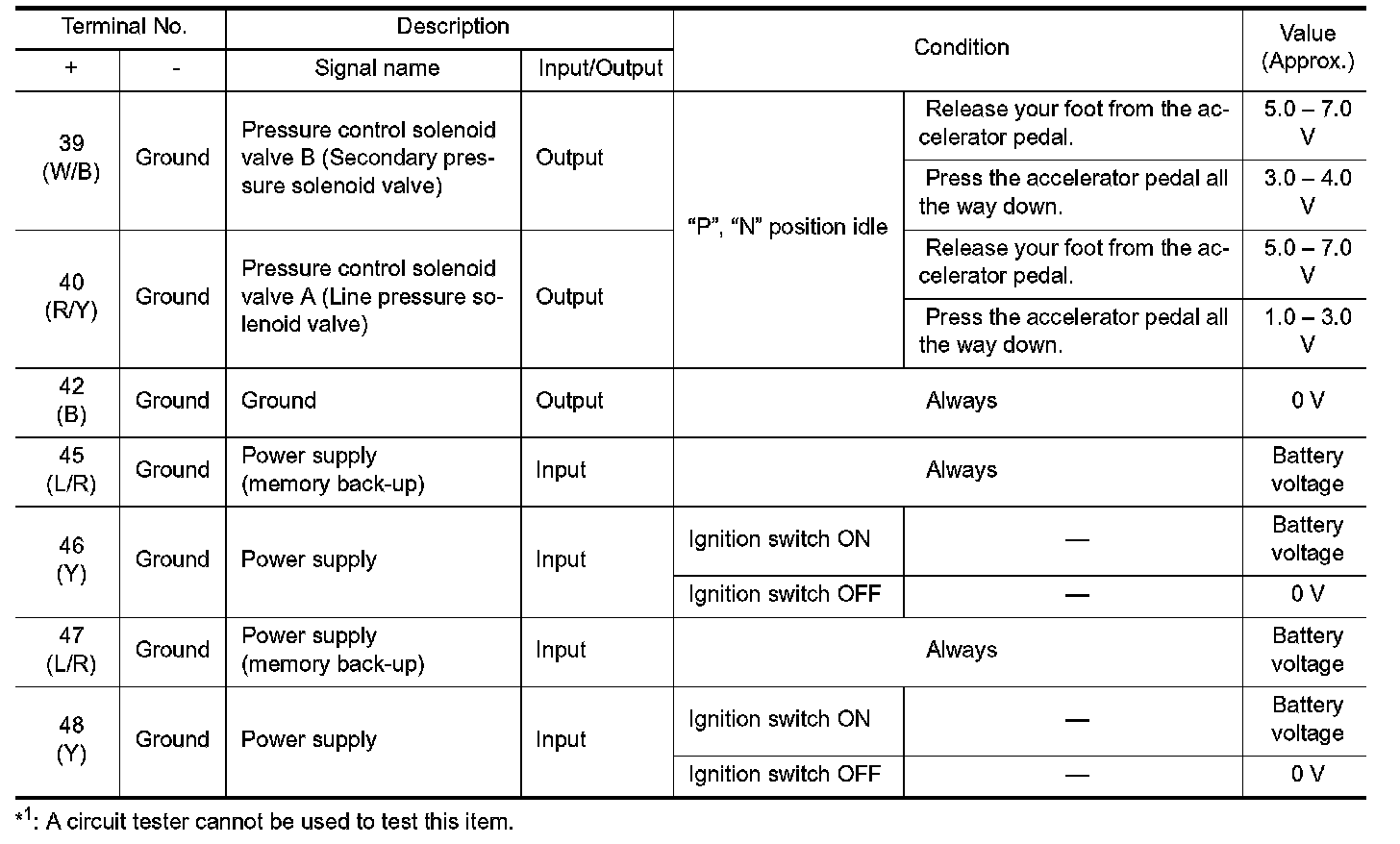

PHYSICAL VALUES (Part 3):
