Transmission Position Sensor/Switch: Service and Repair

PARK/NEUTRAL POSITION (PNP) SWITCH

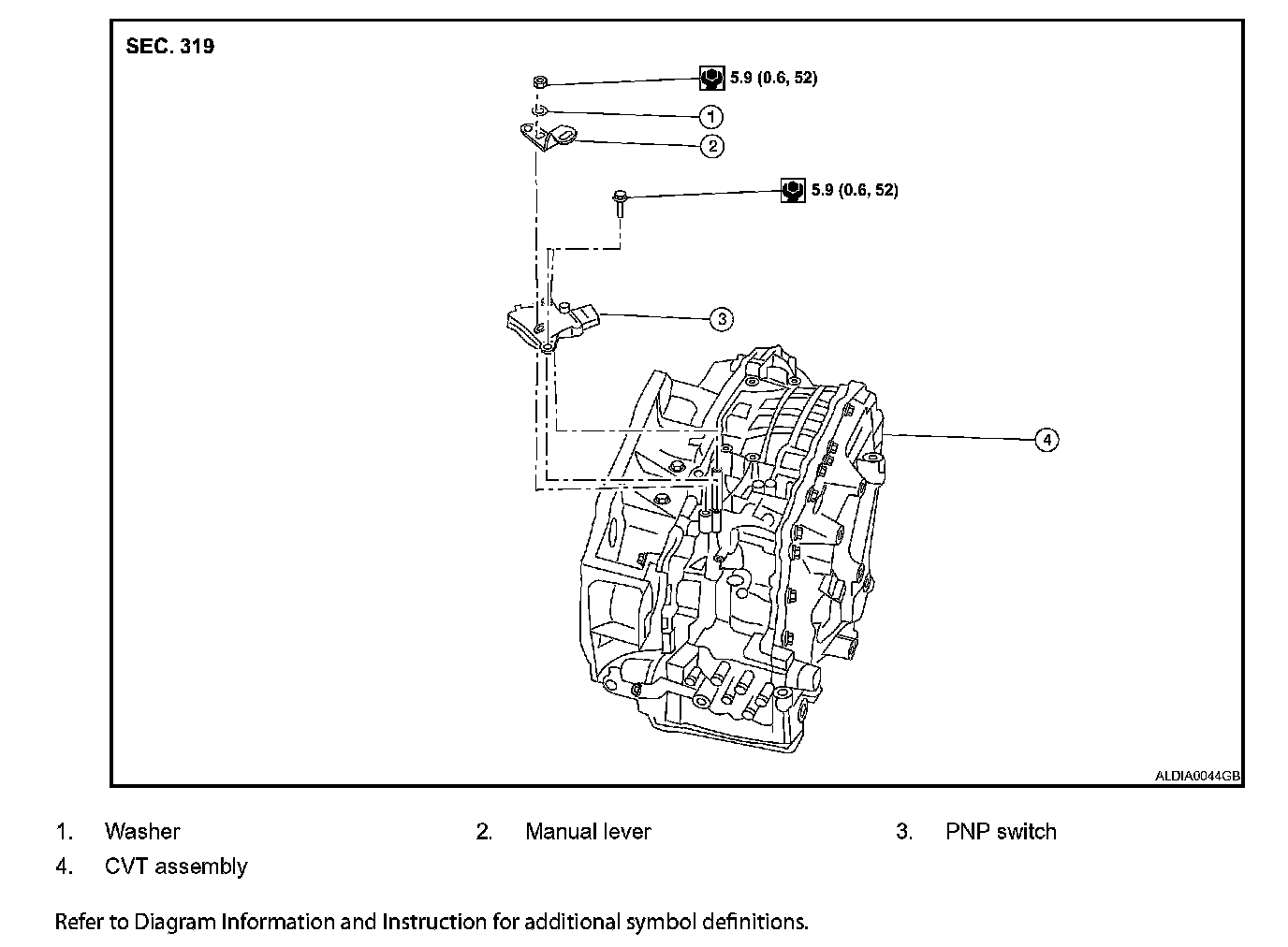

Exploded View TM-389:

Removal and Installation
Refer to the figure for removal and installation.

NOTE:
^ Align PNP switch position when installing.
^ After installation of PNP switch, check the continuity of PNP switch.
^ After installation is complete, adjust and check CVT position.
