Electronic Brake Control Module: Service and Repair

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

Removal and Installation

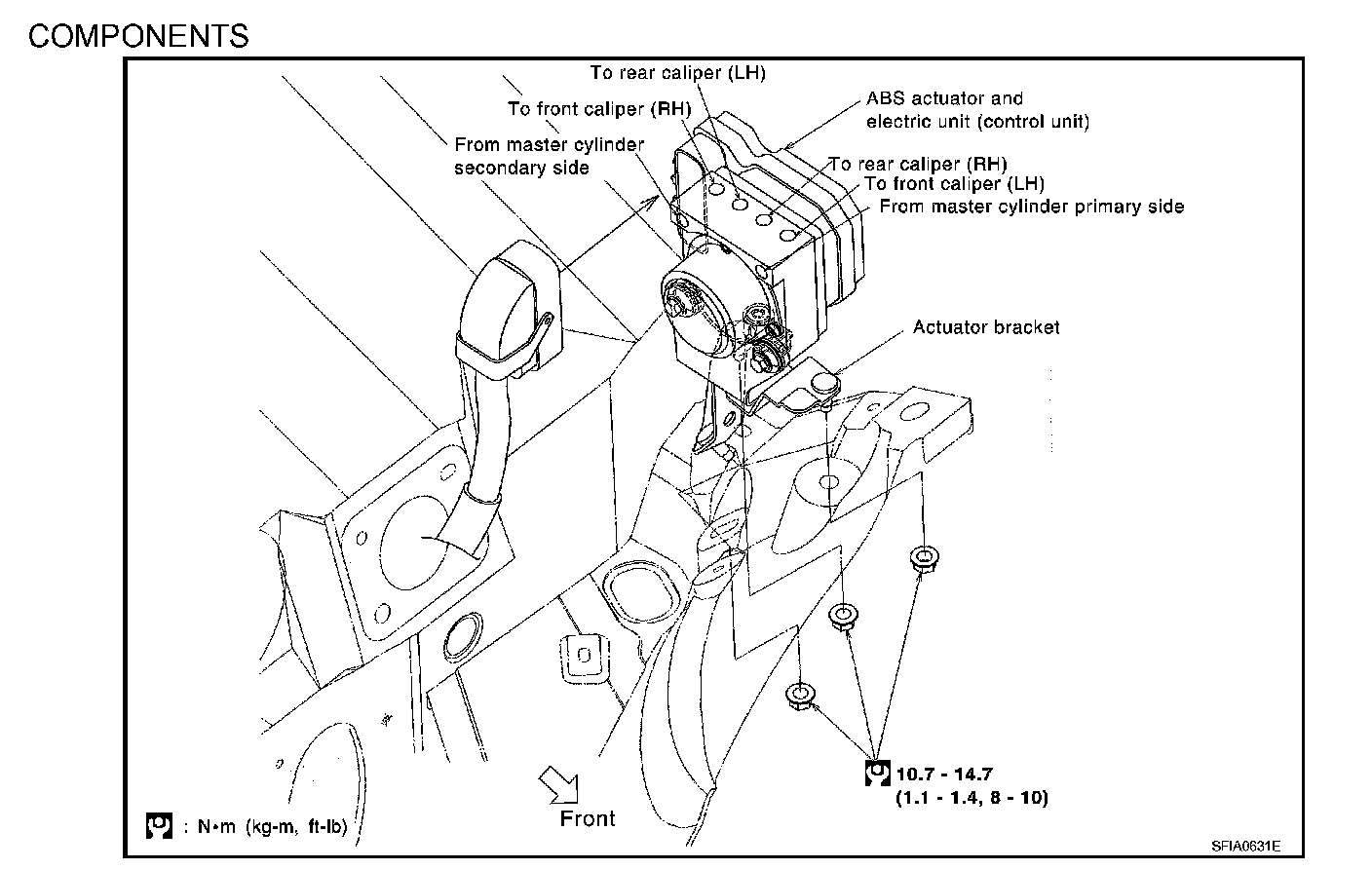

BRC-35 COMPONENTS:

Pay attention to the following when removing actuator.

CAUTION:
- Before servicing, disconnect battery cables.
- To remove brake tube, use flare nut wrench to prevent flare nuts and brake tube from being damaged. To install, use flare nut wrench (commercial service tool).
- Do not remove and install actuator by holding harness.
- After work is completed, bleed air from brake piping.
- Be sure to securely connect the ground cable.
