CONSULT-III Function

CONSULT-III MAIN FUNCTION

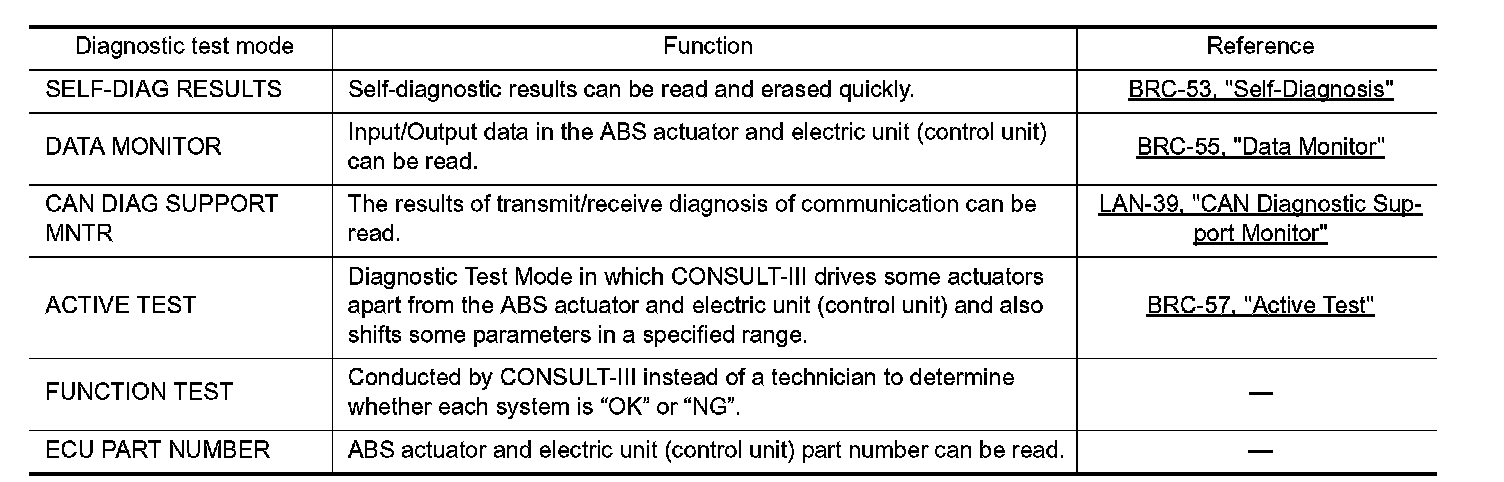

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
