A/C CONTROLLER

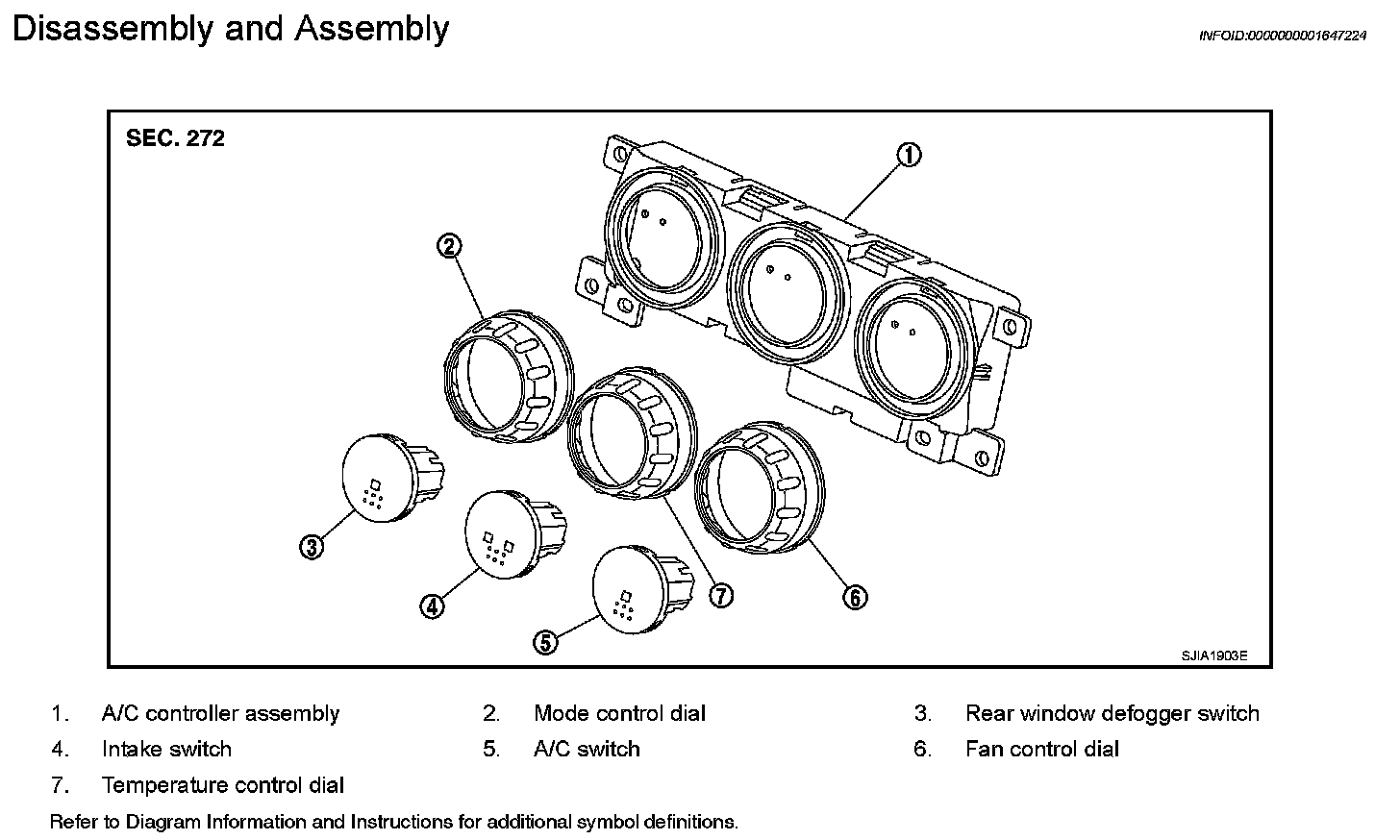

Exploded View ATC-89:
Disassembly and Assembly
NOTE
: When disassembling controller, wind gummed tape around each dial assembly and pull out the dial assembly together with switch from the A/C controller assembly.
