Intake Manifold
Intake ManifoldIf stud bolts were removed, install them and tighten to the specified torque below.
Torque 9.8 Nm (1.0 kg-m, 87 in-lb)

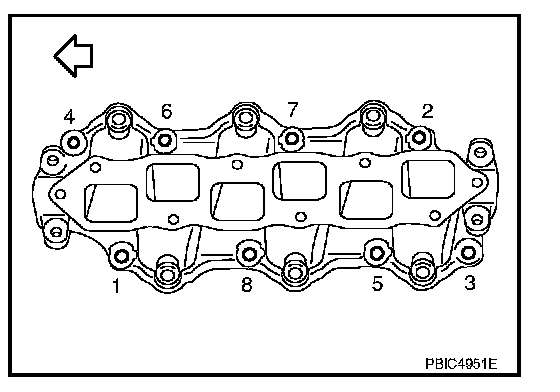

Tighten all mounting nuts and bolts to the specified torque in two or more steps in numerical order shown in the figure.
The arrow points toward the engine front.
CAUTION:
Install intake manifold with the marks (put on the intake manifold and the cylinder head before removal) aligned.
Tighten mounting bolts and nuts from the outside of manifold to the inside.
1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)
