Starter Motor: Service and Repair

Removal and Installation QR25DE

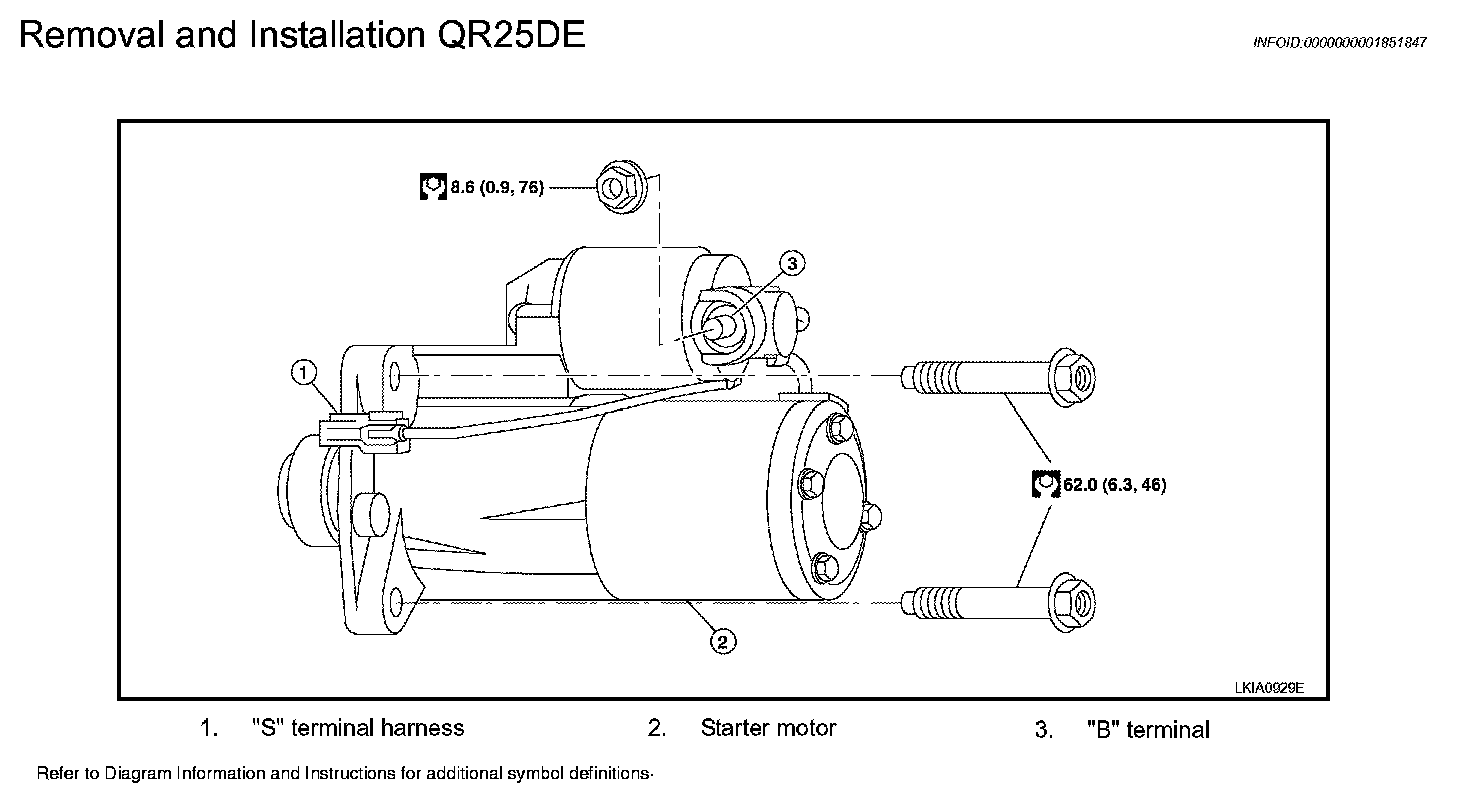

Exploded View SC-21:

REMOVAL
1. Disconnect the battery negative terminal.
2. Raise vehicle.
3. Remove "S" terminal connector.
4. Remove "B" terminal nut.
5. Remove starter motor bolts.
6. Remove starter motor.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Be sure to tighten "B" terminal nut carefully.
