Terminal and Reference Value For Main Power Window and Door Lock/Unlock Switch(With Automatic Close)
Terminal and Reference Value For Main Power Window and Door Lock/Unlock Switch(With Automatic Close)

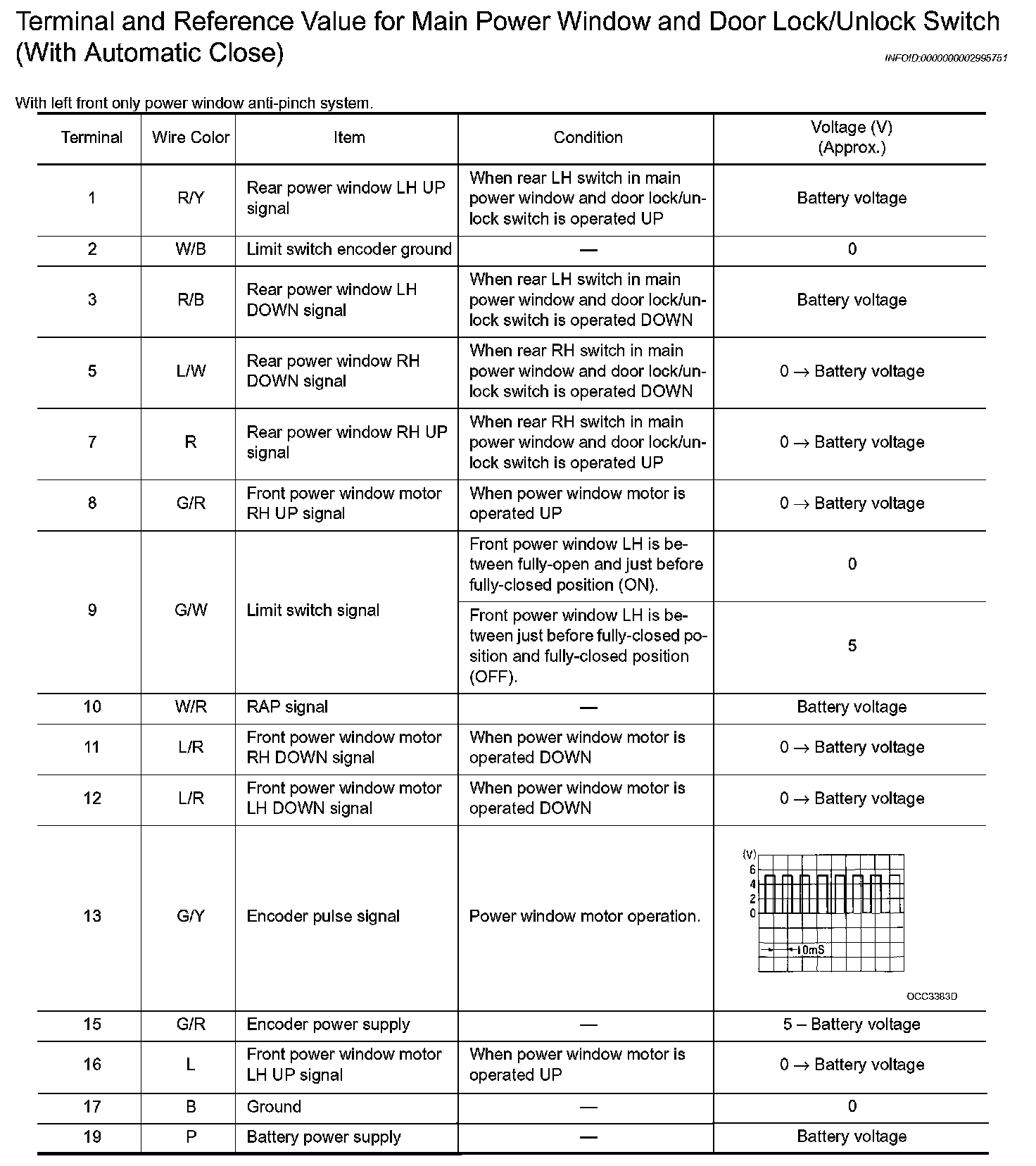

Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch (With Automatic Close):
