Removal And Installation Sedan With Intelligent Key

PUSH BUTTON IGNITION SWITCH


Removal and Installation


REMOVAL

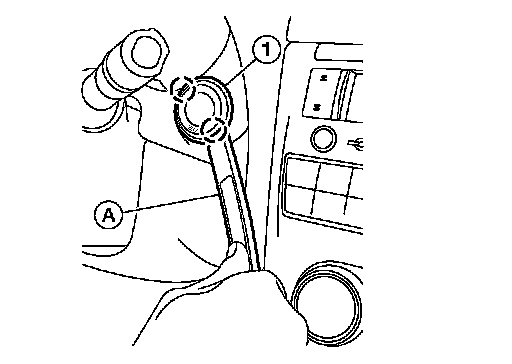

1. Remove the push button ignition switch (1) from cluster lid A using suitable tool (A).
Broken Circle Indicates Pawl
2. Disconnect the electrical harness connector and remove the push button ignition switch.

INSTALLATION
Installation is in the reverse order of removal.
