Connecting Rod, Engine

Connecting Rod Nut

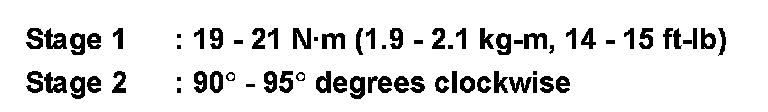

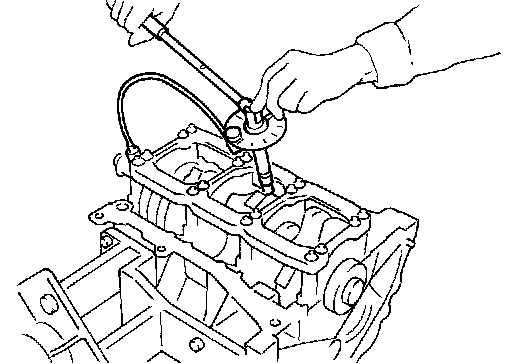

Tighten the connecting rod nuts in two stages using Tool:










CAUTION: Always use either an angle wrench or protractor. Avoid tightening based on visual check alone.








CONNECTING ROD
