Torque & Sequence

INTAKE MANIFOLD COLLECTOR

Intake manifold collector 11 N.m (1.1 kg-m, 8 ft-lb)






Tighten intake manifold collector bolts in the order as shown.



INTAKE MANIFOLD

Installation is in the reverse order of removal. Follow the procedure below for specific tightening sequences and procedures.

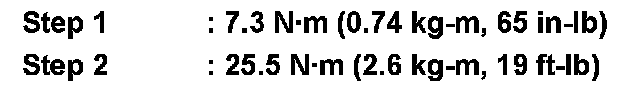

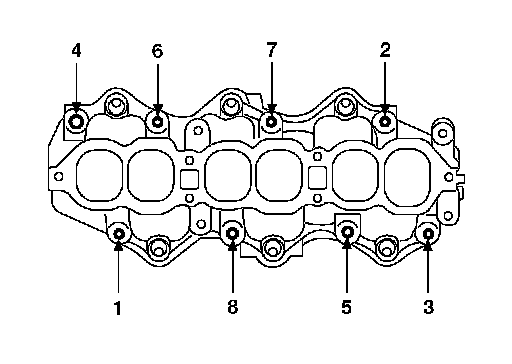

Install intake manifold bolts in two steps in the numerical order as shown.
