Timing Cover

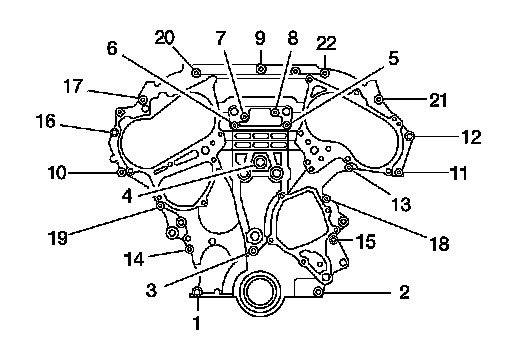

FRONT TIMING CHAIN CASE

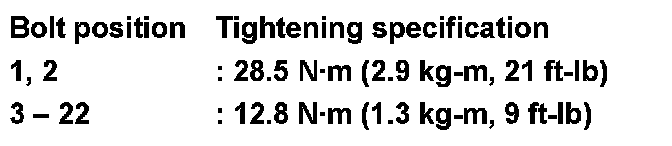

Tighten the front timing chain case bolts in the order as shown.
Retighten the front timing chain case bolts in the order as shown.

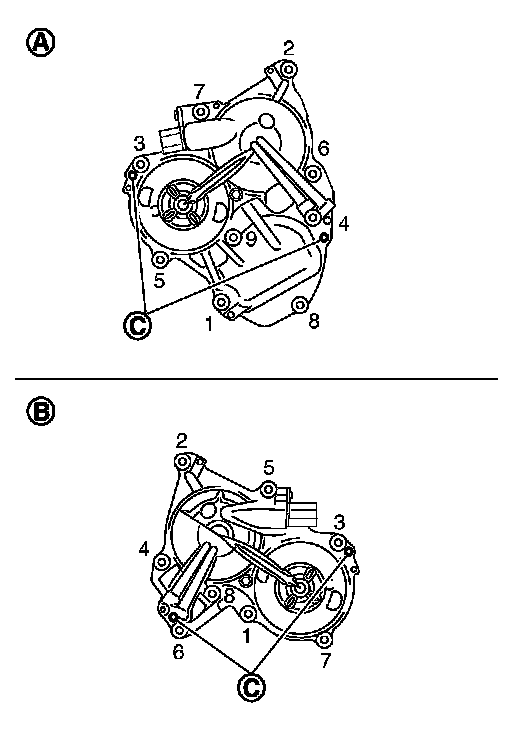

Intake Valve Timing Control Covers

Tighten bolts in the numerical order as shown.





A: Bank 1 (Conventional RH bank)
B: Bank 2 (Conventional LH bank)
C: Dowel pin hole

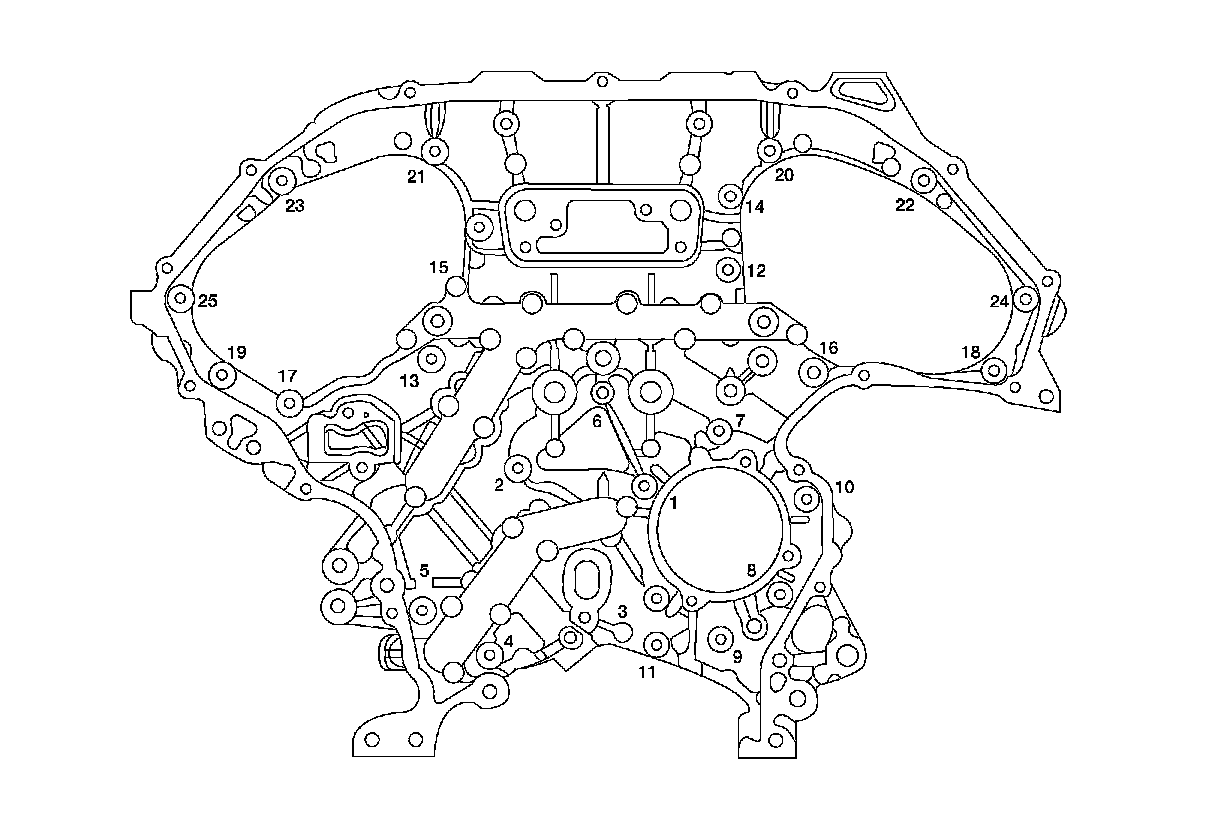

REAR TIMING CHAIN CASE

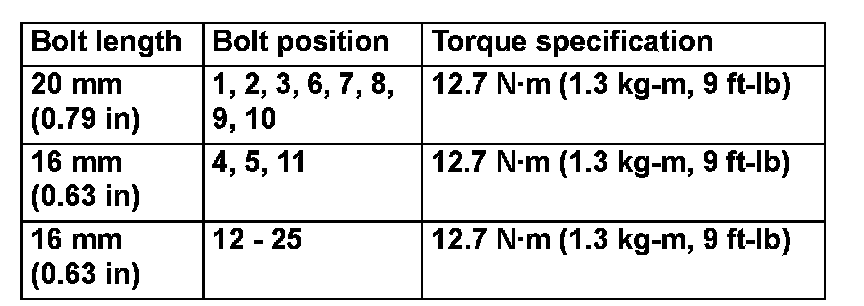

Tighten the bolts in the numerical order as shown. There are two bolt lengths used. Follow the chart below for proper bolt length specifications.









After all bolts are initially tightened, retighten them to the specification in the numerical order as shown.
