Key Slot

KEY SLOT


Removal and Installation


REMOVAL
1. Remove the instrument lower panel LH. Instrument Lower Panel LH.

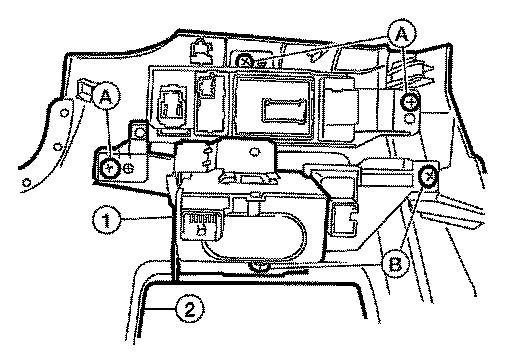

2. Remove the switch assembly screws (A), remove the key slot screws (B) and then remove key slot (1) from instrument lower panel LH (2).

INSTALLATION
Installation is in the reverse order of removal.
