Check Engine/Service Engine Indicator & Ignition

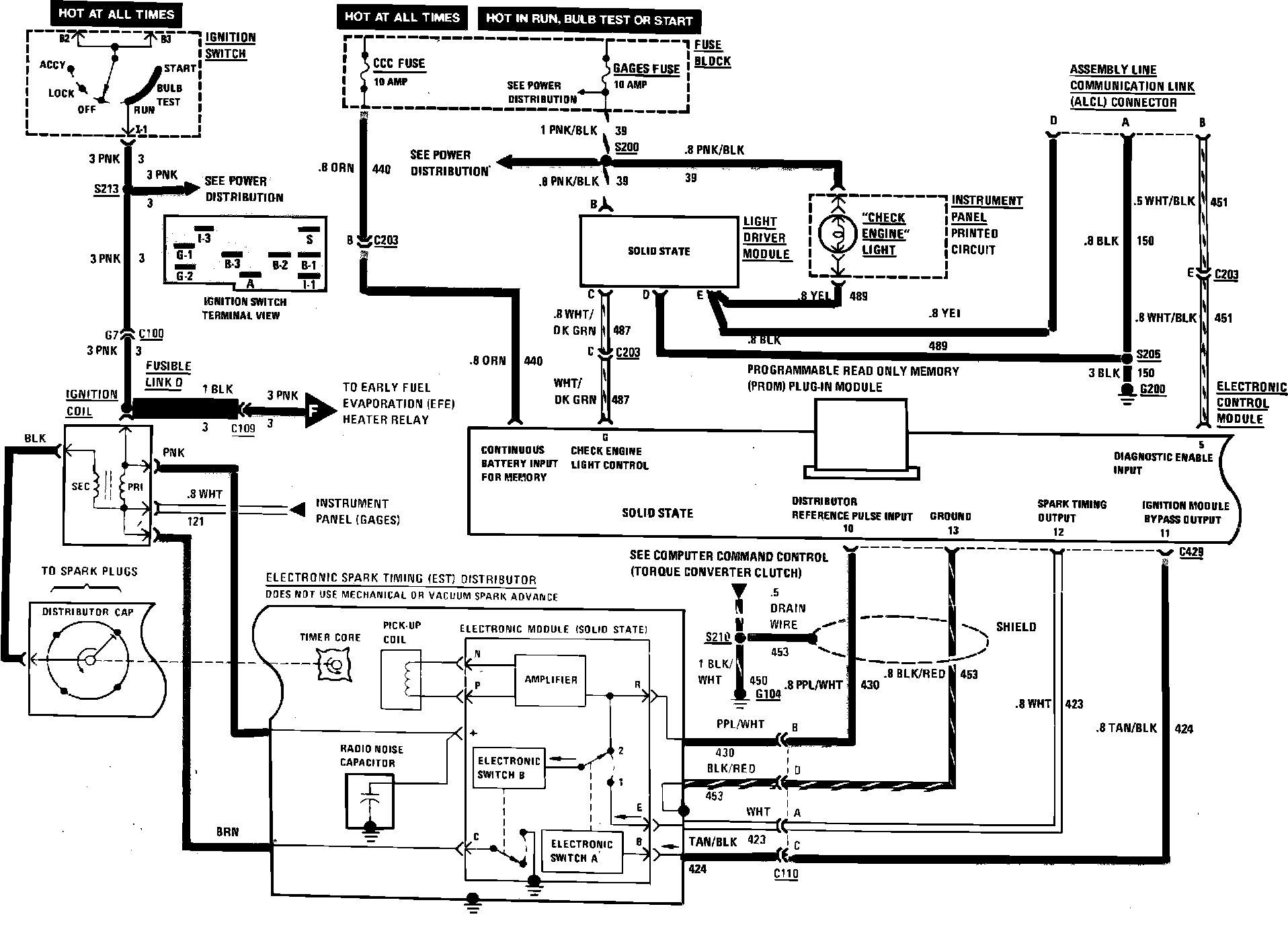

Computer Command control (Check Engine Light & Ignition System) Wiring Circuit:
