Home >> Oldsmobile >> 1986 >> Ciera V6-231 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

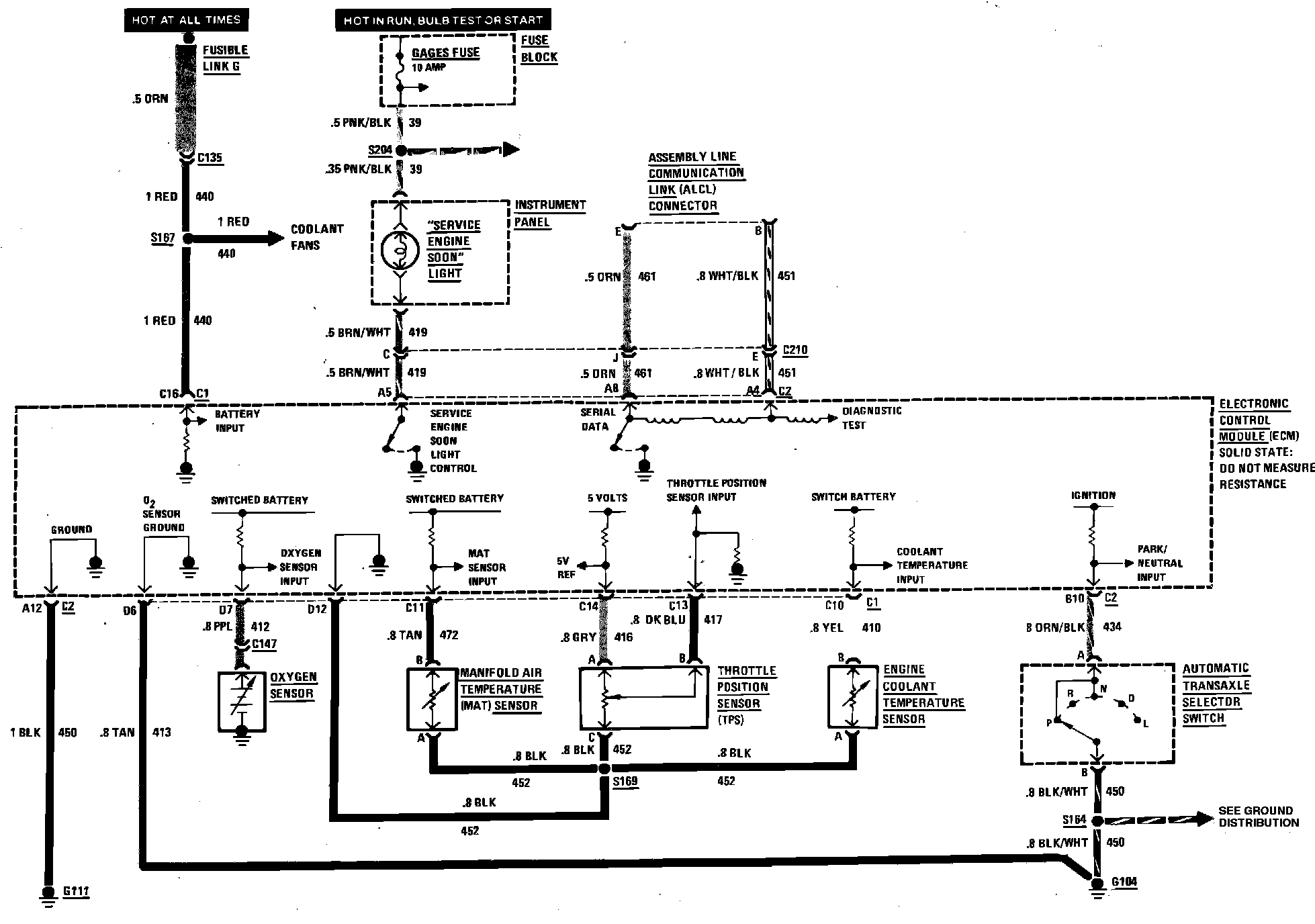

Sequential Fuel Injection Wiring Circuit (Auto. Trans. Selector Switch, Engine Data Sensors & Service Engine Soon Lamp):
