Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1987
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
A/C Fuse and Turn Fuse
A/C Fuse and Turn Fuse

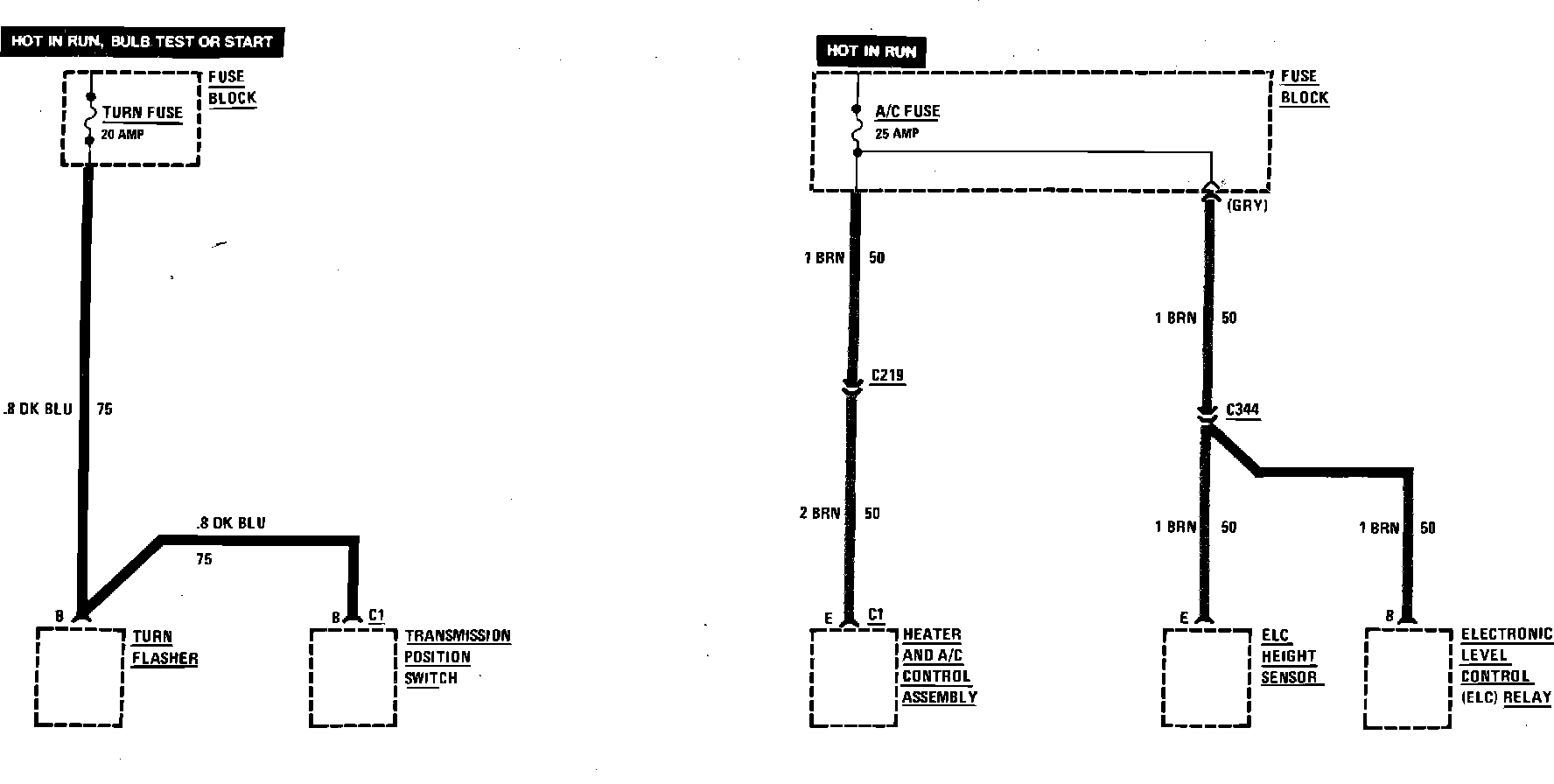

Fuse Block Details (A/C Fuse & Turn Fuse):
