- Flow of Diagnosis - Start Here

Flow Of Diagnosis:

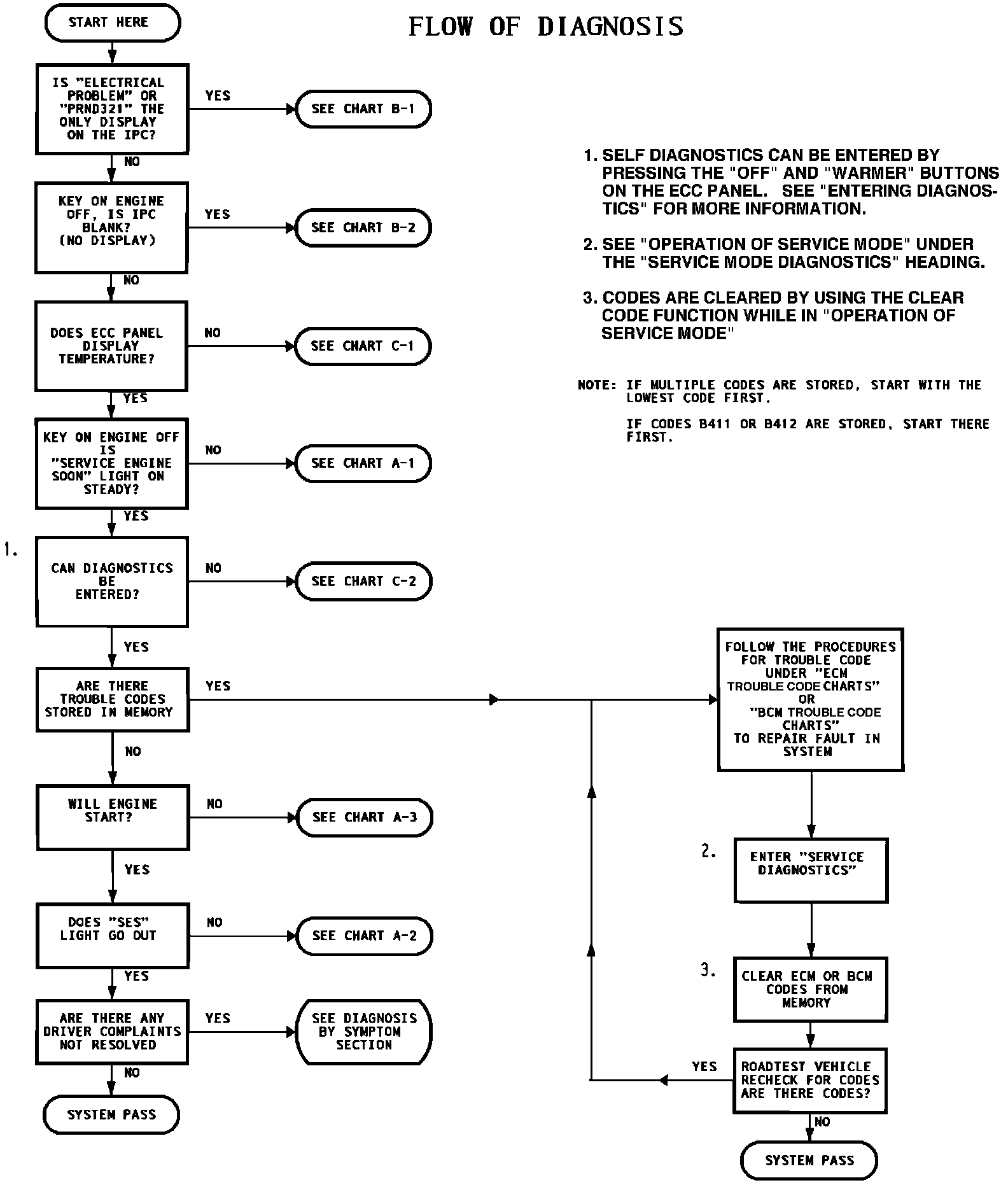

This section will be used as the starting point in the diagnosis of the BCM or its sub-systems. The "FLOW OF DIAGNOSIS" chart will provide a systematic aproach to the diagnosis. It will guide you to the appropriate section in the service manual to continue your diagnosis. The procedures outlined will direct you to the proper diagnostic chart for problems which are not detected by the self diagnostic system. The flow chart will also indicate "SYSTEM PASS" if there are no faults found within the computer system.
