Home >> Oldsmobile >> 1988 >> Calais FWD V6-181 3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 13

Fuse 13

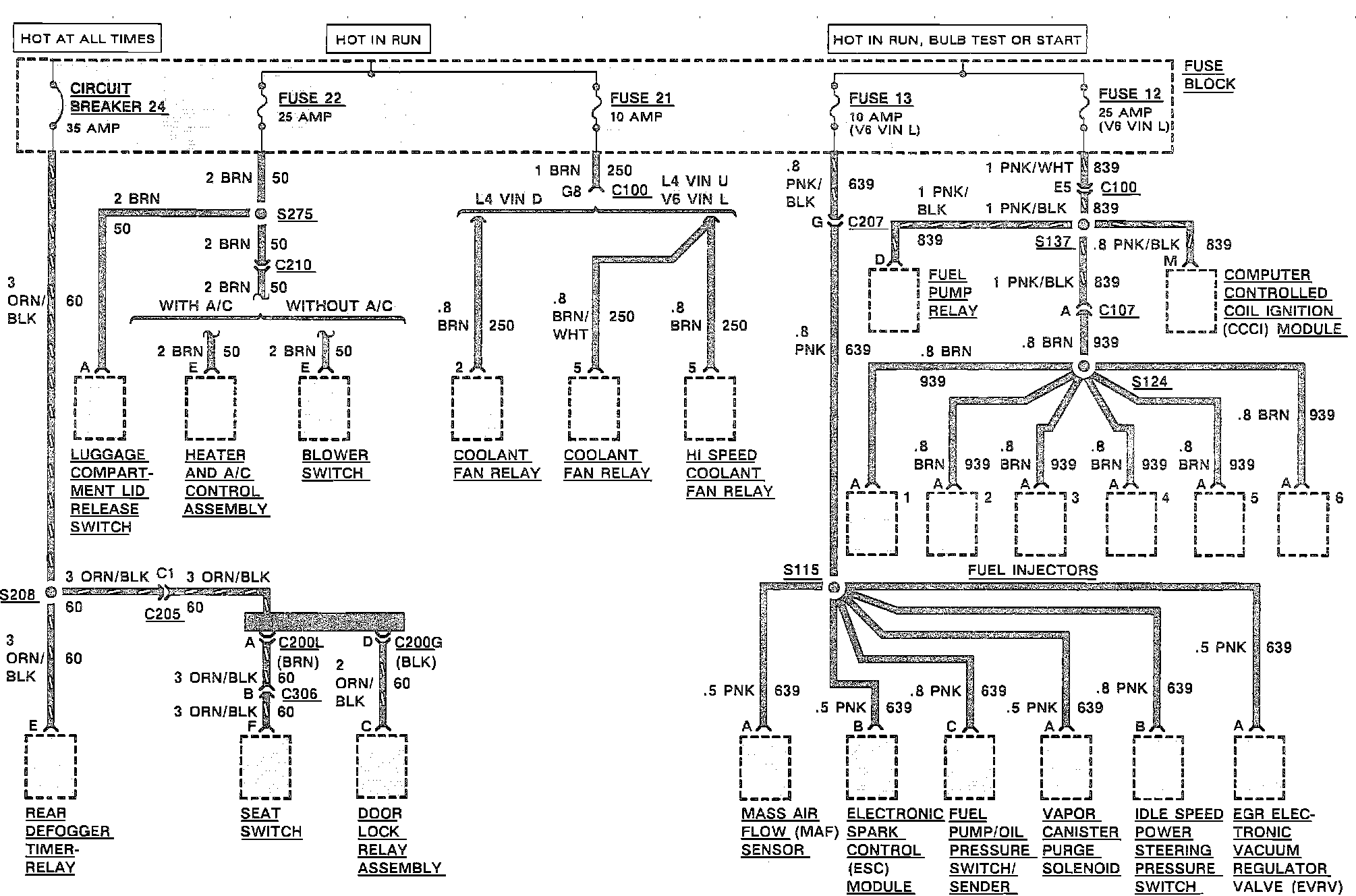

Circuit Breaker 24 & Fuses 12, 13, 21 & 22:
