87olds7SUBJECT: 1988 BRAKE SYSTEM CHANGES
MODELS/YEARS: 1988 FIRENZA AND CUTLASS CALAIS
NUMBER: 88-T-04A
DATE: Nov. 13, 1987
SECTION: 5
This bulletin supersedes Dealer Technical Bulletin 88-T-04 which may be discarded.
1988 Firenza and Cutlass Calais models produced beginning with the following vehicle identification numbers (VIN) at the assembly plants listed will be equipped with a different brake master cylinder, brake booster assembly and brake caliper assemblies.
Assembly Plant Model VIN Breakpoint
Lansing (M) Cutlass Calais 1G3NK14D9JM216877
Leeds (K) Firenza 1G3JC51K7JK304666
The changes to the brake system were incorporated to provide an improved pedal feel and increased booster assist on initial brake apply.
PARTS USAGE
The new caliper part numbers listed below must be used to service ALL 1988 Firenza and Cutlass Calais models.
The NEW brake booster and master cylinder part numbers listed in this bulletin MUST be used to service only those Firenza and Cutlass Calais models produced beginning with the VIN breakpoints provided.
NOTICE: Vehicles built prior to the VIN breakpoints MUST be serviced with the prior brake booster and brake master cylinder part numbers listed in this bulletin. Mixing the new booster and master cylinder parts with prior parts on early built (prior to VIN breakpoints) vehicle may result in a brake application requiring increased pedal travel to stop the car.
1988 New 1988 Old
Part Number Part Number
Caliper 18015752 (Left) 18011667 (Left)
18015753 (Right) 18011668 (Right)
Booster 18015498 (Code NT) 18013875 (Code LF)
Master Cylinder 18015760 (Code NT) 18014370 (Code DL)
PARTS IDENTIFICATION

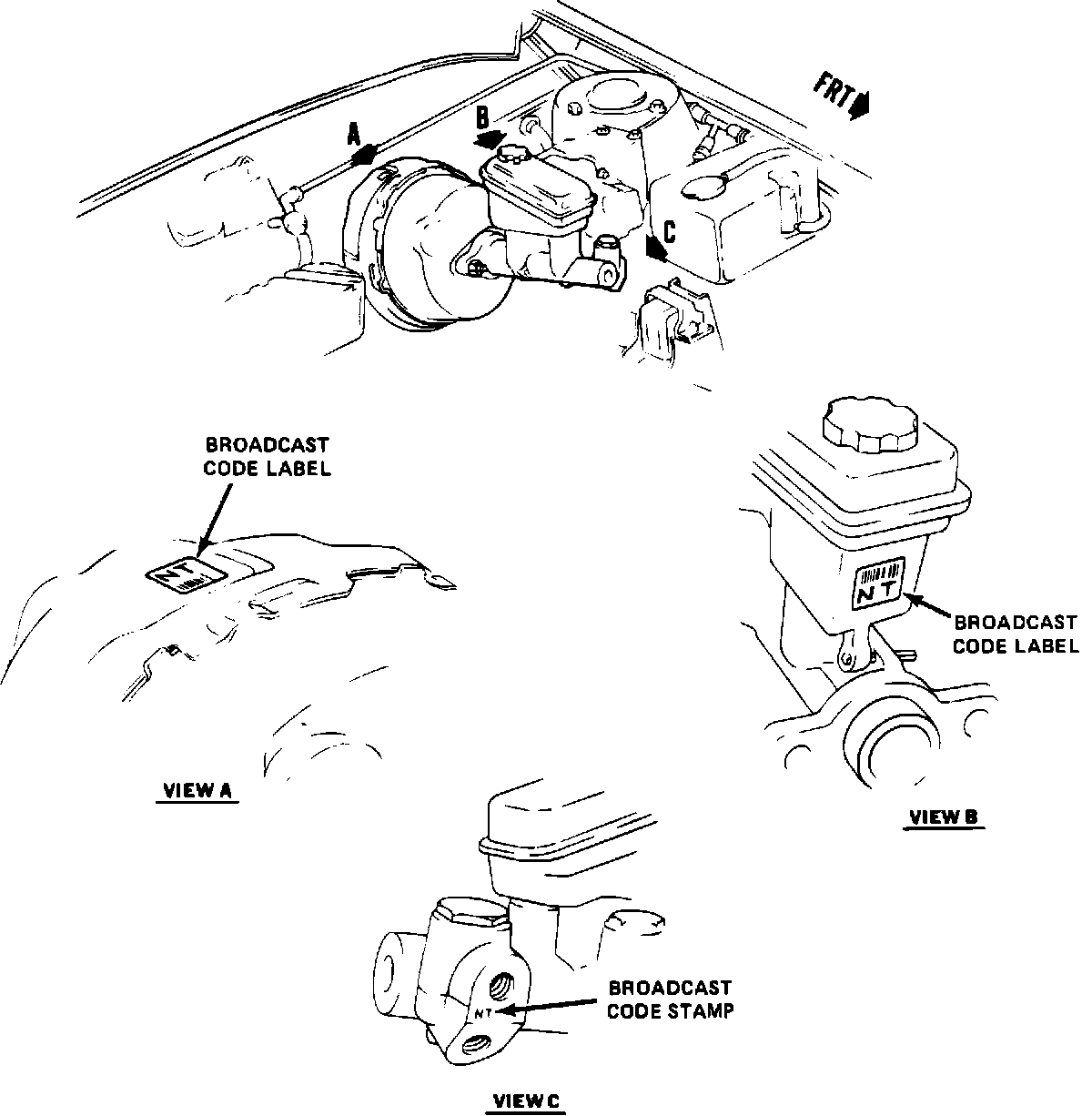

The new brake booster part number listed in this bulletin can be identified by the broadcast code "NT" printed on the bar code label which is attached to the part. See illustration, View A.
The new master cylinder part number listed in this bulletin can be identified by a broadcast code of "NT" stamped on the aluminum housing. See View C. The broadcast code of "NT" is also printed on the bar code label attached to the rear of the brake fluid reservoir, View B. The brake booster, master cylinder, and brake fluid reservoir MUST all have a broadcast code of "NT" on all vehicles built after the VIN breakpoints listed in this bulletin.
WARRANTY INFORMATION
When submitting a warranty claim, use existing labor operation and times.
