Electrical Diagrams

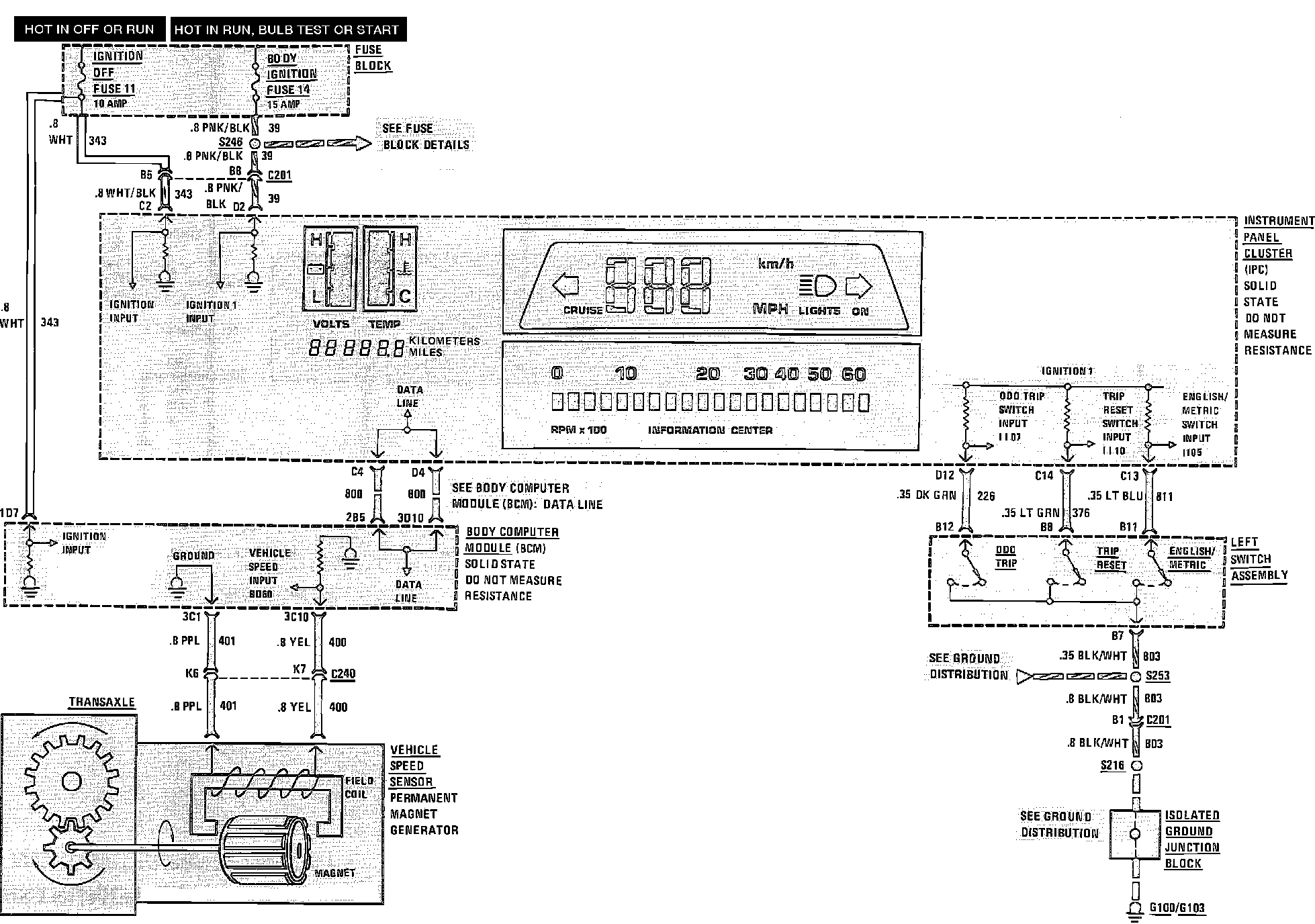

Instrument Panel Cluster Wiring Circuit (Speedometer, Odometer & Trip Odometer):
