Home >> Oldsmobile >> 1989 >> Cutlass Ciera L4-151 2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Air Conditioning

Air Conditioning

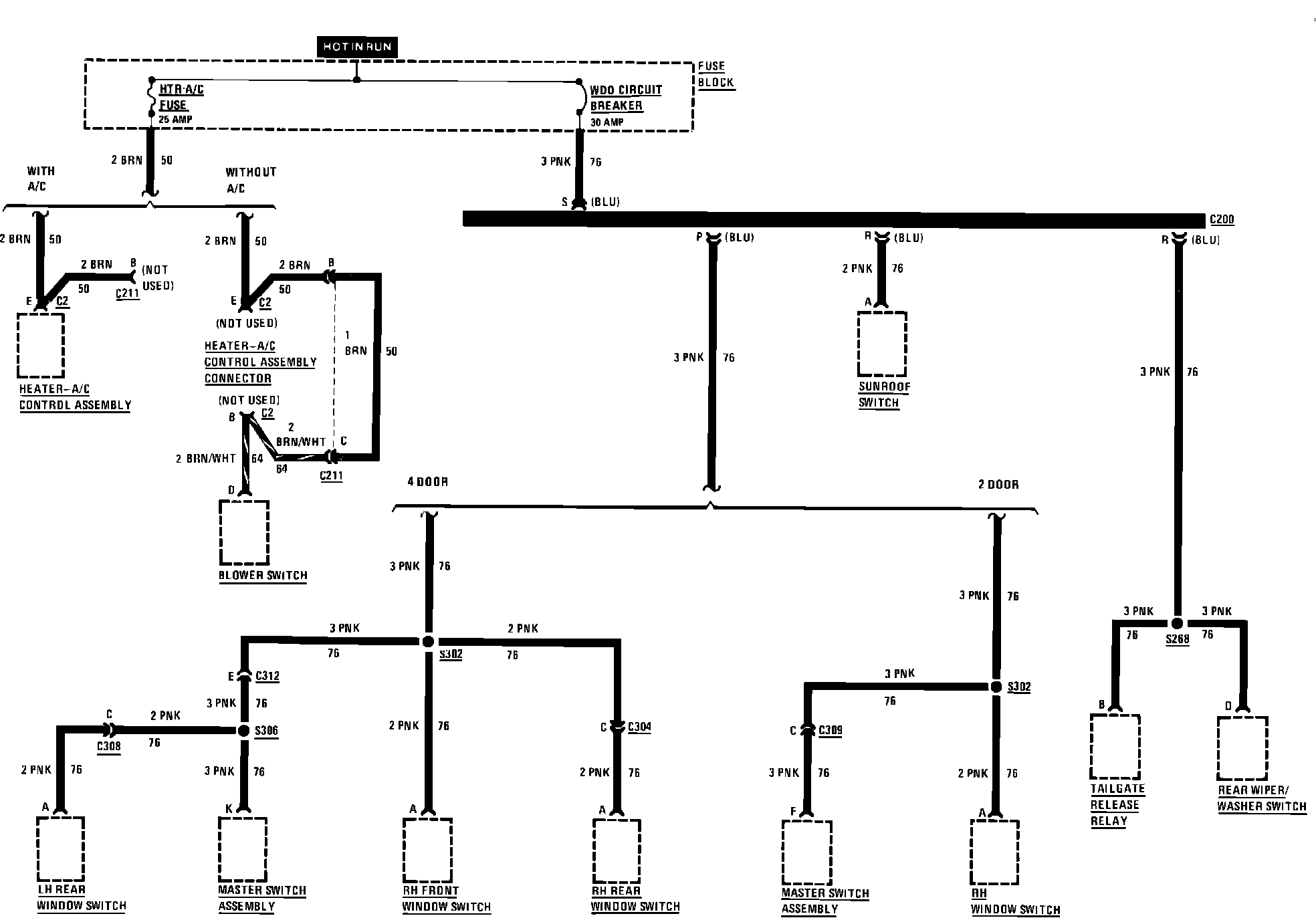

Fuse Block Details (Window Circuit Breaker & Heater-A/C):
