EGR Valve: Service and Repair

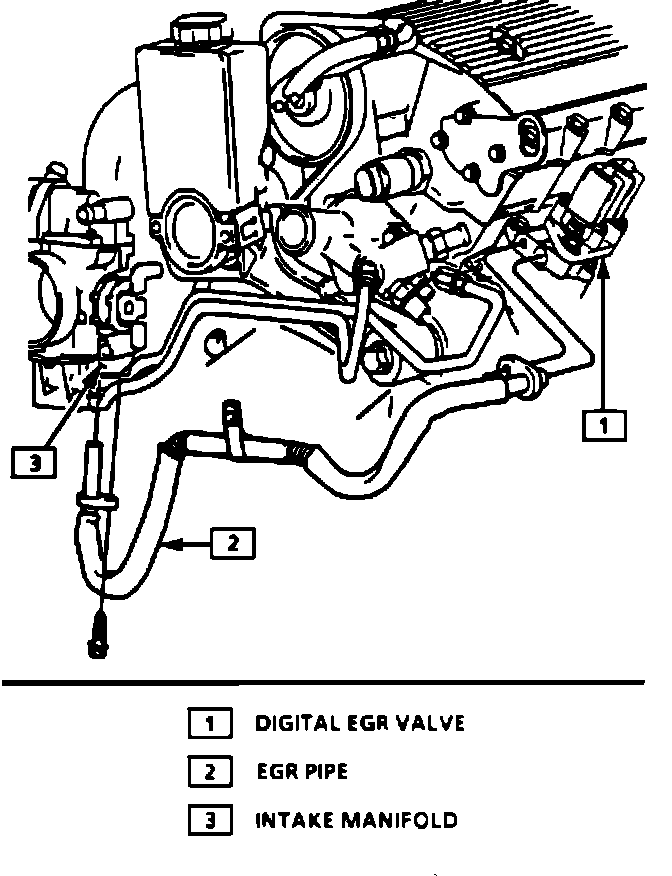

EGR Components:

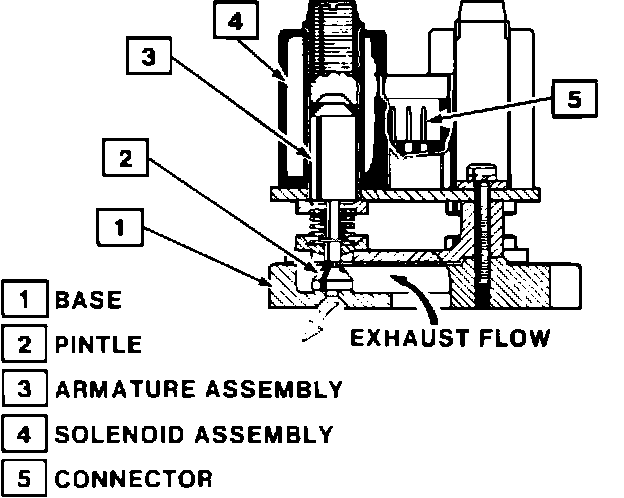

Digital EGR Valve:

EGR AND ADAPTER REMOVAL:

1. Remove EGR electrical connector.
2. Remove attaching nuts, valve, and gasket.
3. Remove the EGR pipe to adapter attaching bolt.
4. Remove the adapter attaching bolts, adapter, and seal.

INSTALLATION:

^ Install in reverse order of removal.
