Home >> Oldsmobile >> 1991 >> Cutlass Ciera Cruiser L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Reclining >> Split-Bench

Split-Bench

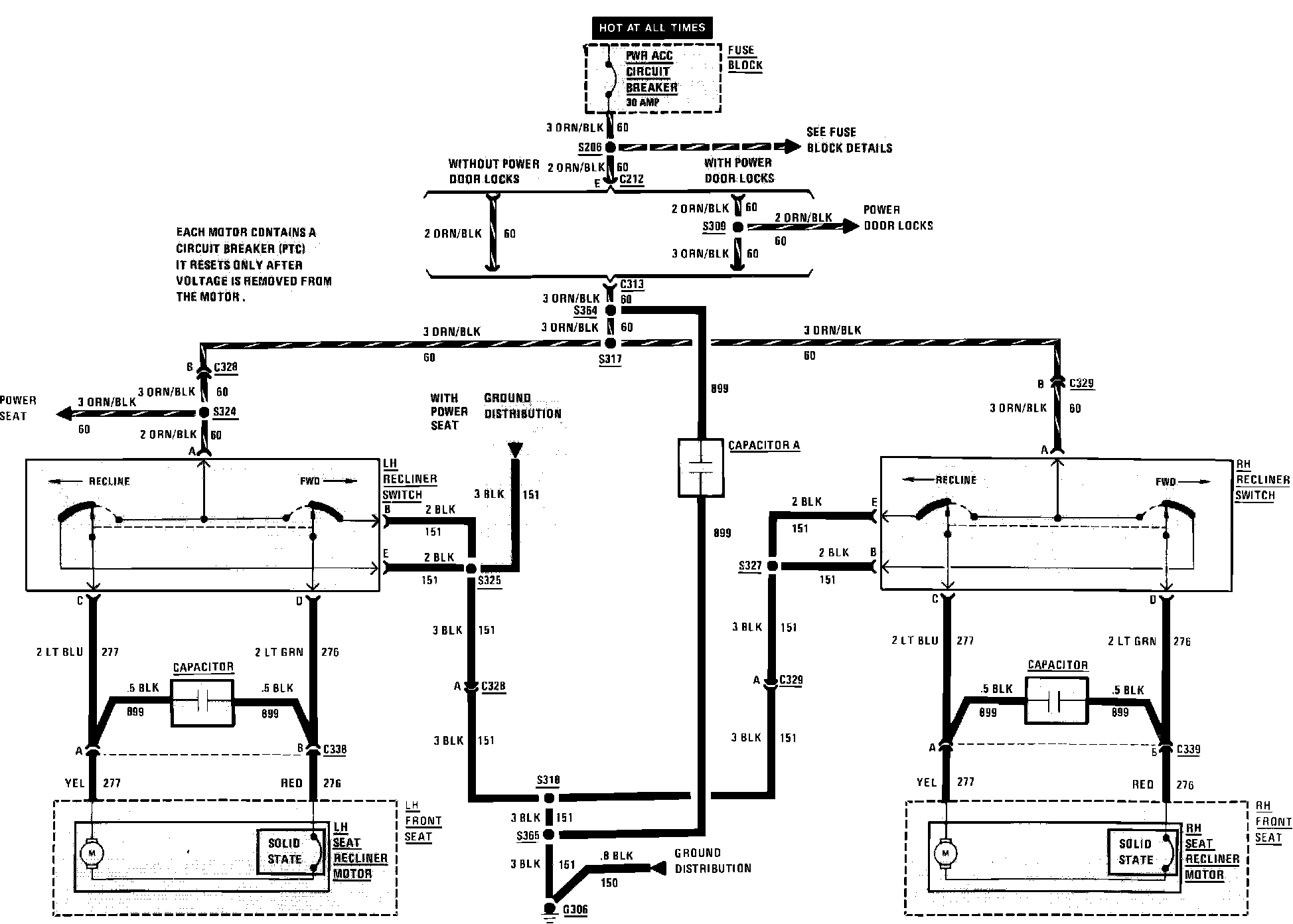

Reclining Seats: Split-Bench Seats:
