ECC/Cruise Control - Erratic Operation

91oldsmobile04

NUMBER: 91-T-152

CORP.REF.NO.: 116801R

DATE: June 1991

SECTION: 1B, 9B


SUBJECT ERRATIC ECC MODE CHANGE OR
CRUISE CONTROL UNABLE TO MAINTAIN SET
SPEED ON HILLS - ENSURE HOSE CONNECTION

MODELS/YEARS 1991 TORONADO AND TROFEO

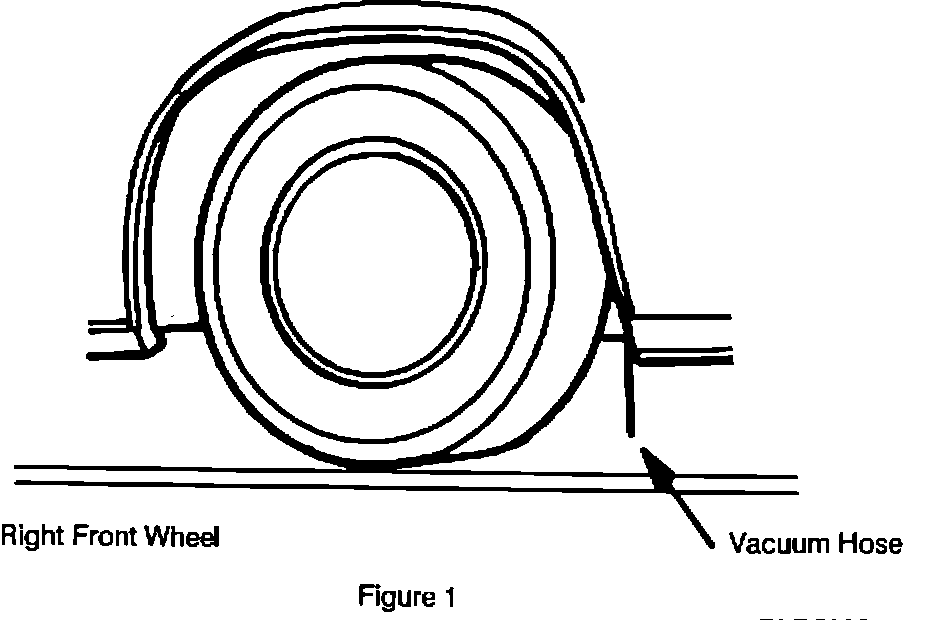

Figure 1:

Some 1991 Toronado and Trofeo models may exhibit erratic Electronic Climate Control (ECC) mode change or cruise control that will not maintain a set speed on a hill. These conditions may be due to a disconnected vacuum hose. The hose which connects to the vacuum reserve tank, in the front wheel well area may become disconnected from snow or ice build up or underbody car wash. See Figure 1.

To repair this condition ensure that the vacuum hose is seated a minimum of 15 mm (approx 9/16 in.) onto the vacuum reserve tank connecting nipple.
1. Measure 15 mm (approx 9/16 in.) from the end of the hose and mark a reference line with tape or white paint.
2. Push the hose onto the nipple until the reference line is flush with the edge of the nipple protector.

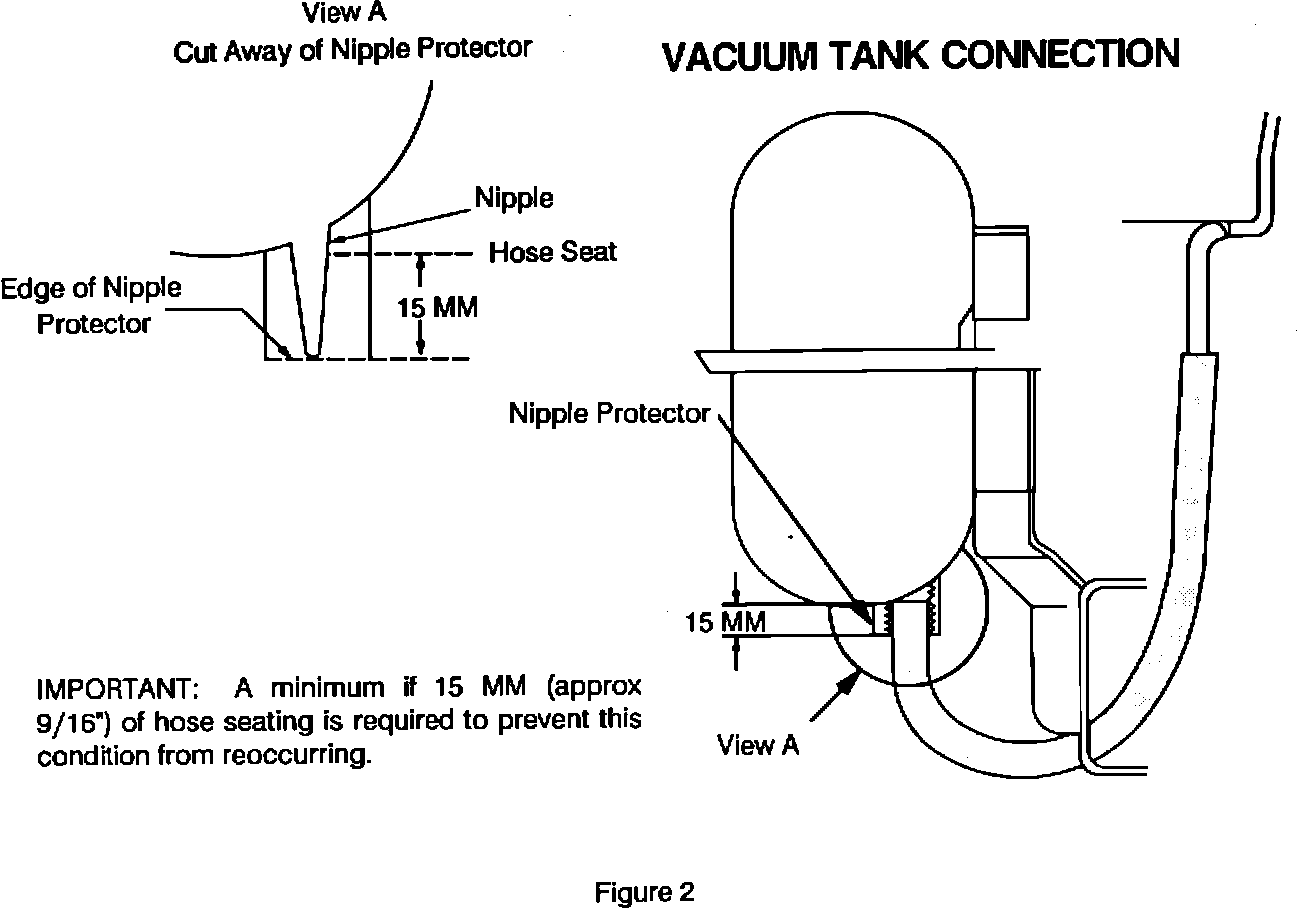

Figure 2:

Refer to Figure 2 and Figure 2 view A.
3. Ensure the proper seat with a moderate tug downward on the hose. If properly seated, the hose should remain secure.

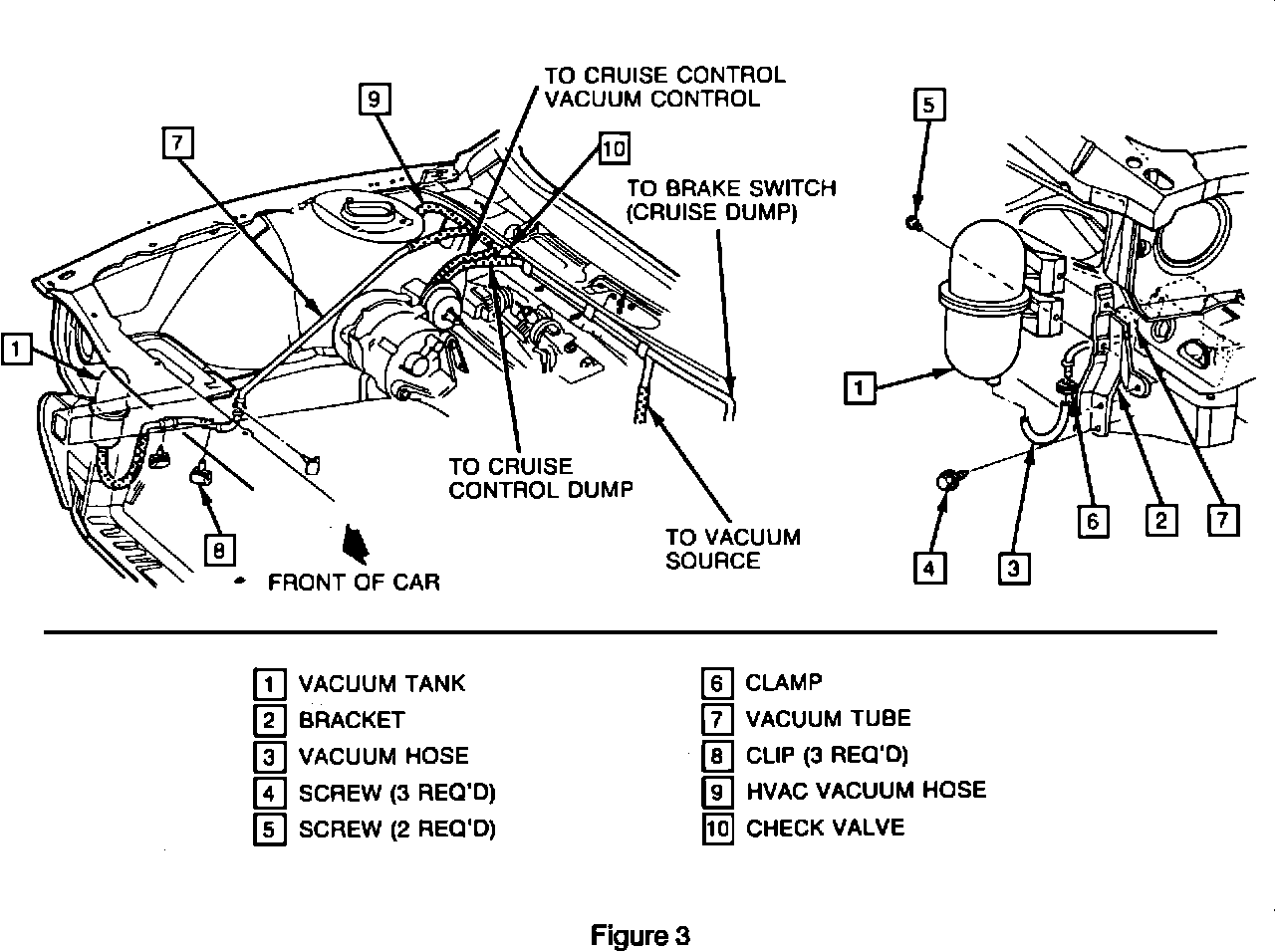

Figure 3:

The vacuum reserve tank location shown in the 1991 Toronado/Trofeo Service Manual on page 1B-31, Figure 30 is incorrect. For the correct location refer to Figure 3 in this bulletin.

WARRANTY INFORMATION:
Labor Operation: T6546
Labor Time: 0.2 hour.
Trouble Code: 92
