Home >> Oldsmobile >> 1991 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G310

G310

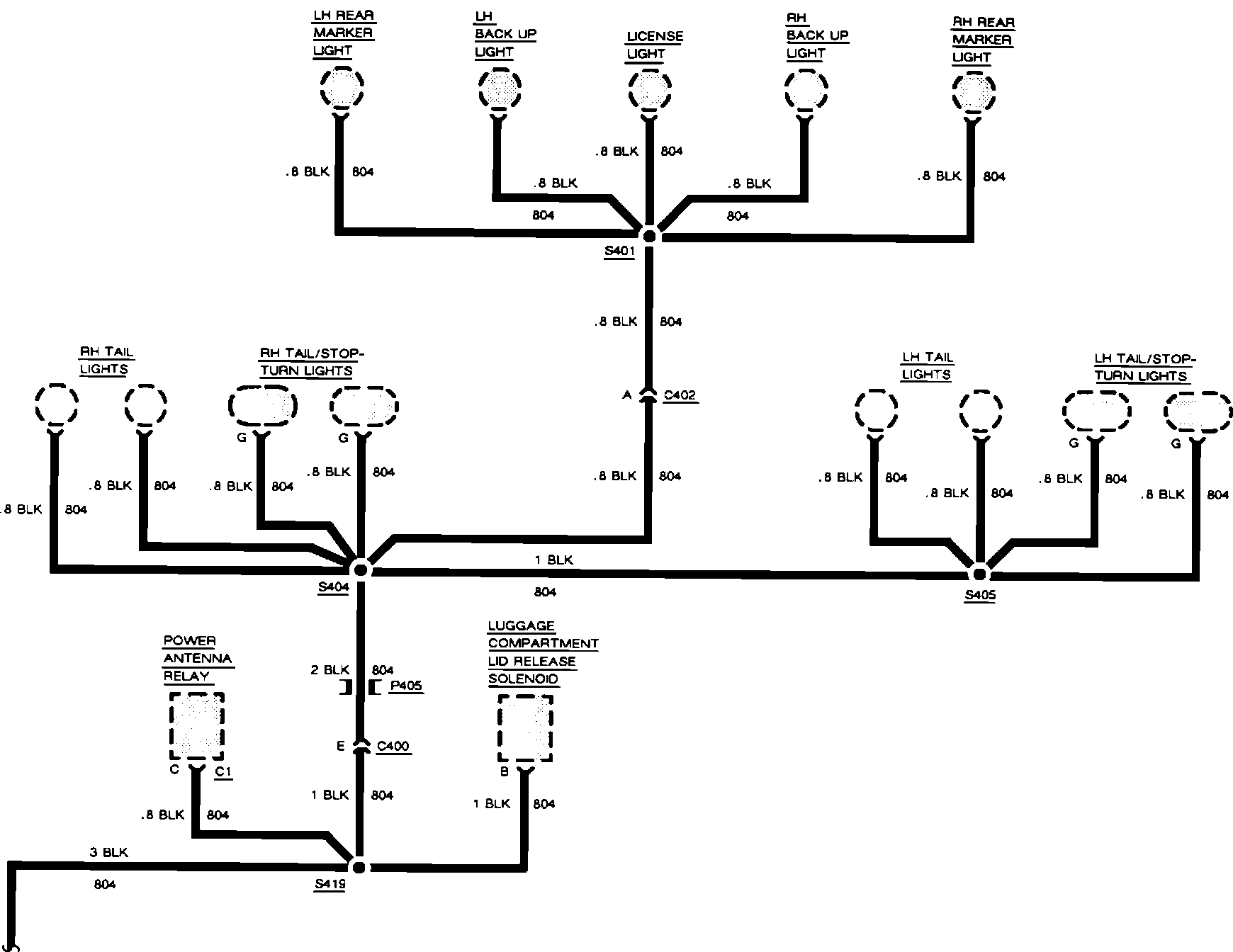

Ground Distribution. G310:



Ground Distribution. G310:
