Home >> Oldsmobile >> 1993 >> Achieva L4-138 2.3L VIN A MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Electrical Diagrams

Electrical Diagrams

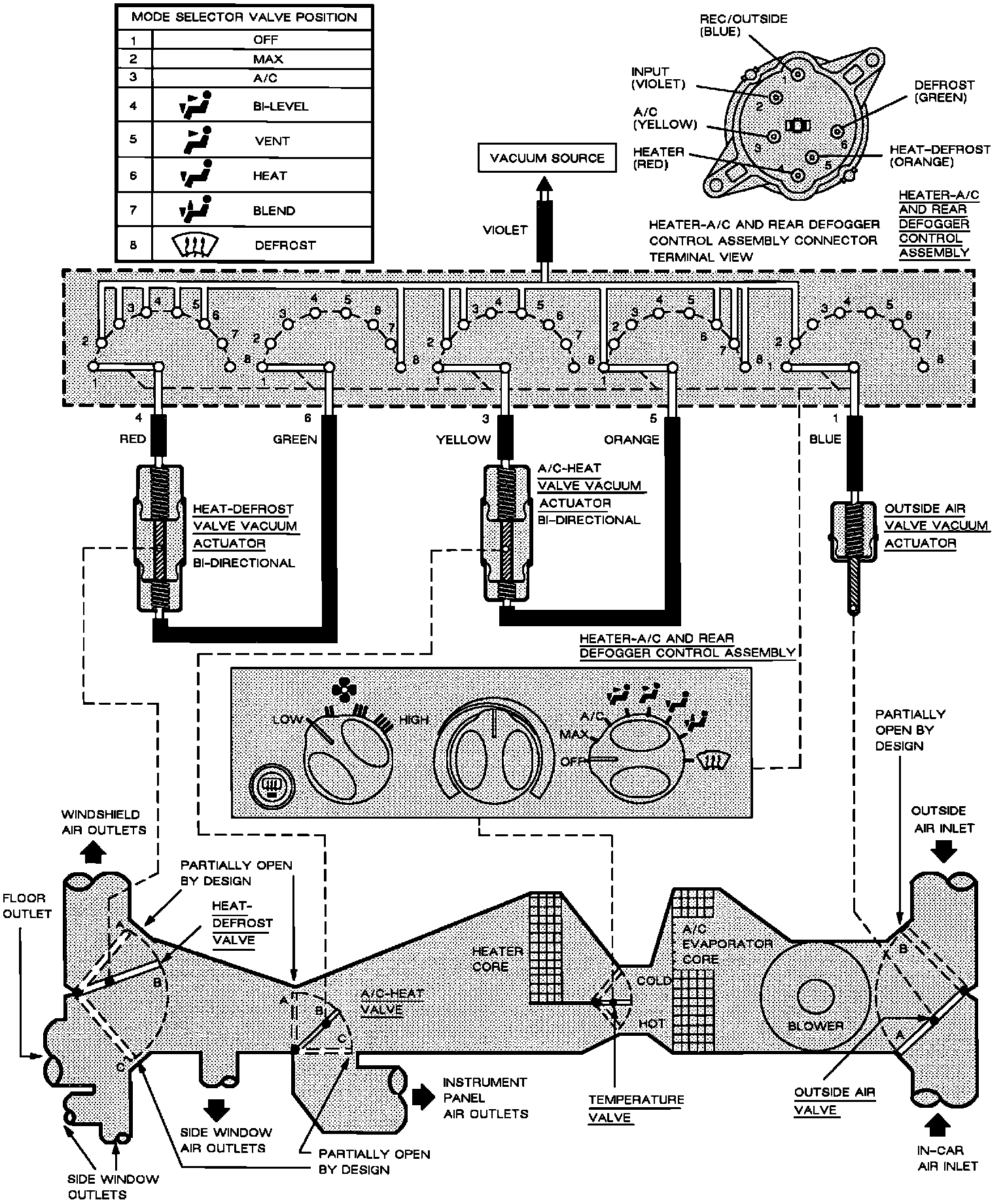

HVAC: Air Delivery:
