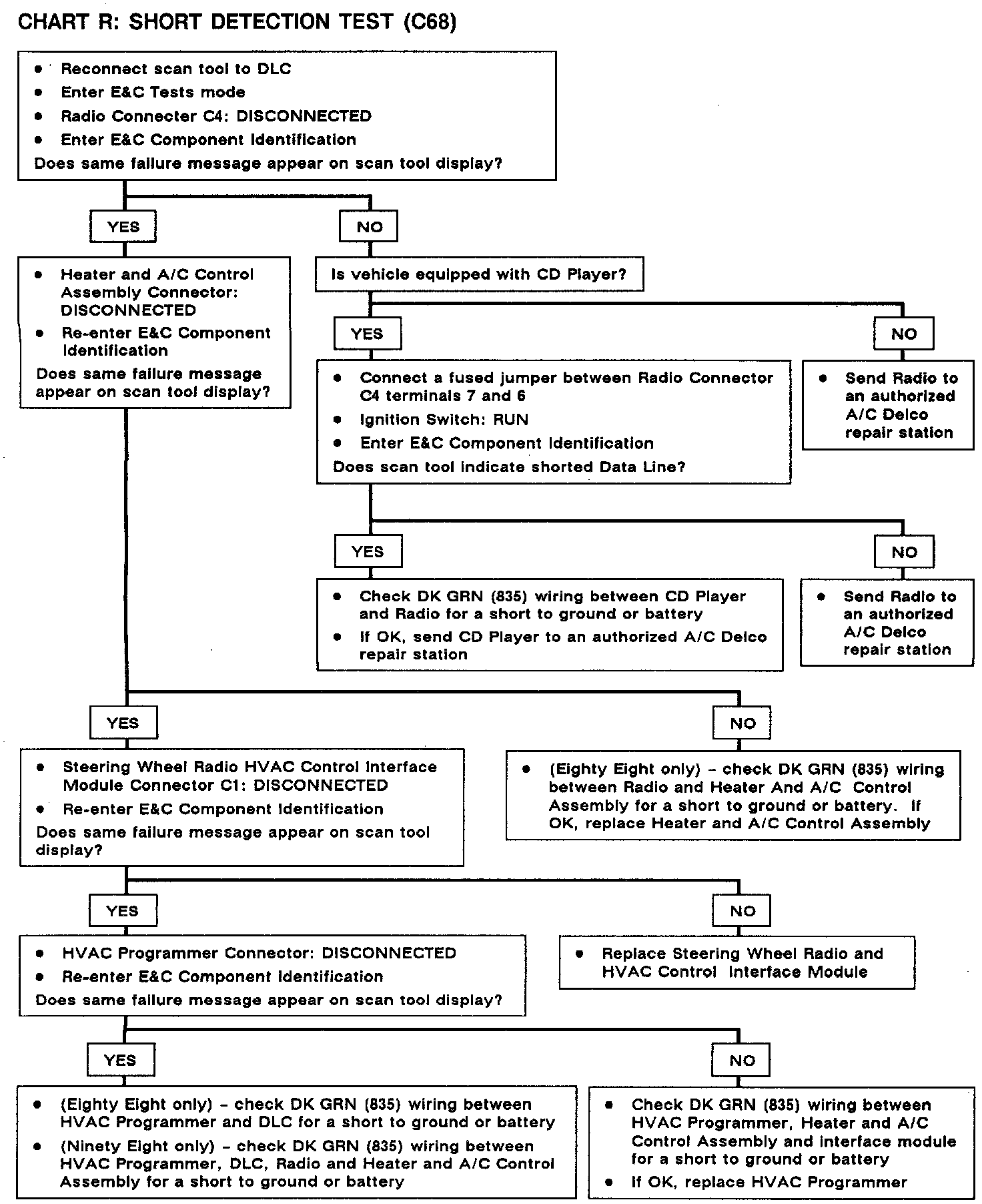

Chart R: Short Detection Test
Chart R: Short Detection Test
Diagnostic Chart:
Electrical Chart:
Electrical Chart:
Electrical Chart:
