Home >> Oldsmobile >> 1993 >> Ninety-Eight V6-3800 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> - Symptom Table >> With Dual Zone Climate Controls >> Table A: Compressor Controls

Table A: Compressor Controls

Diagnostic Chart:

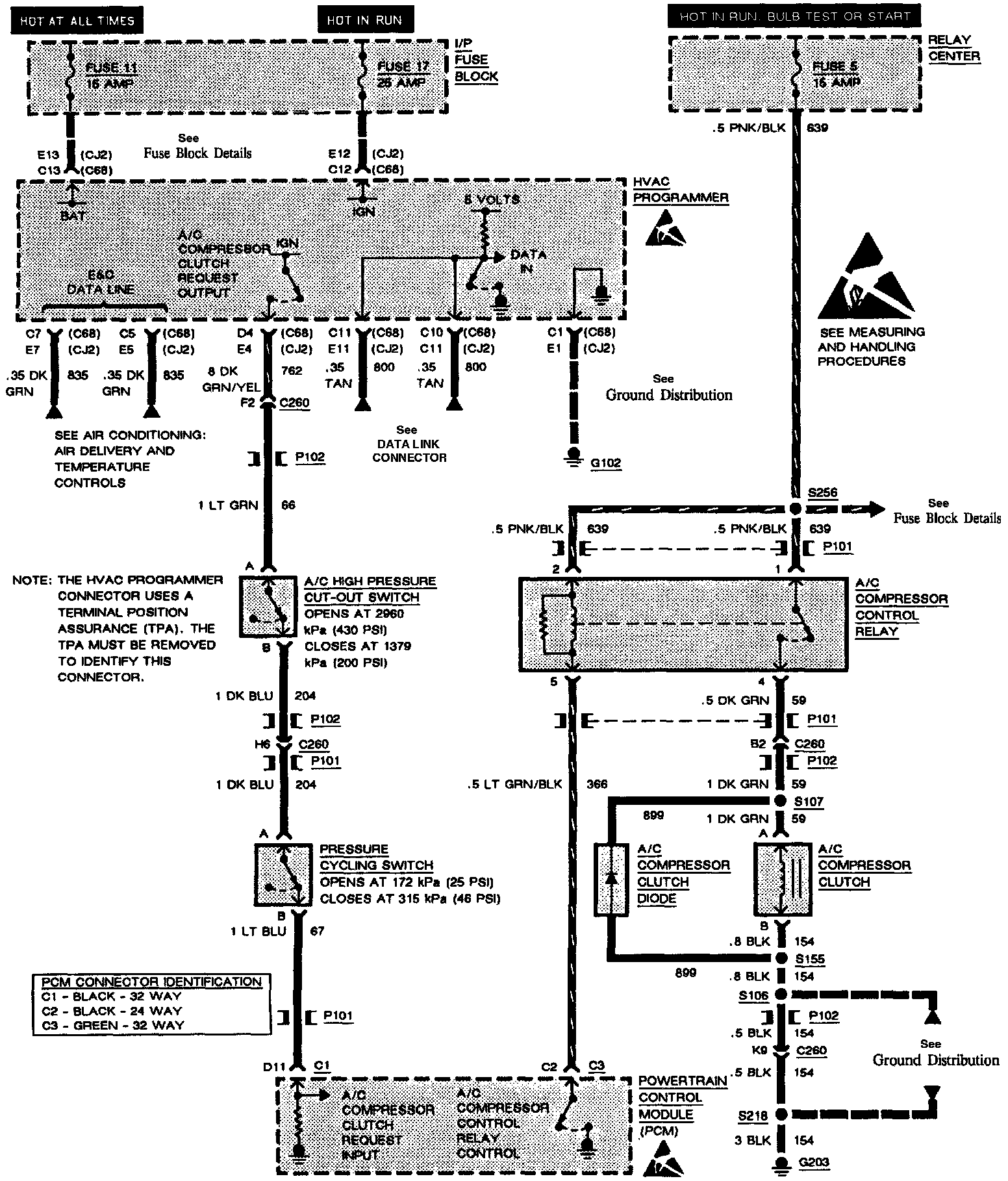

Electrical Chart:
