A/C Compressor Clutch Relay

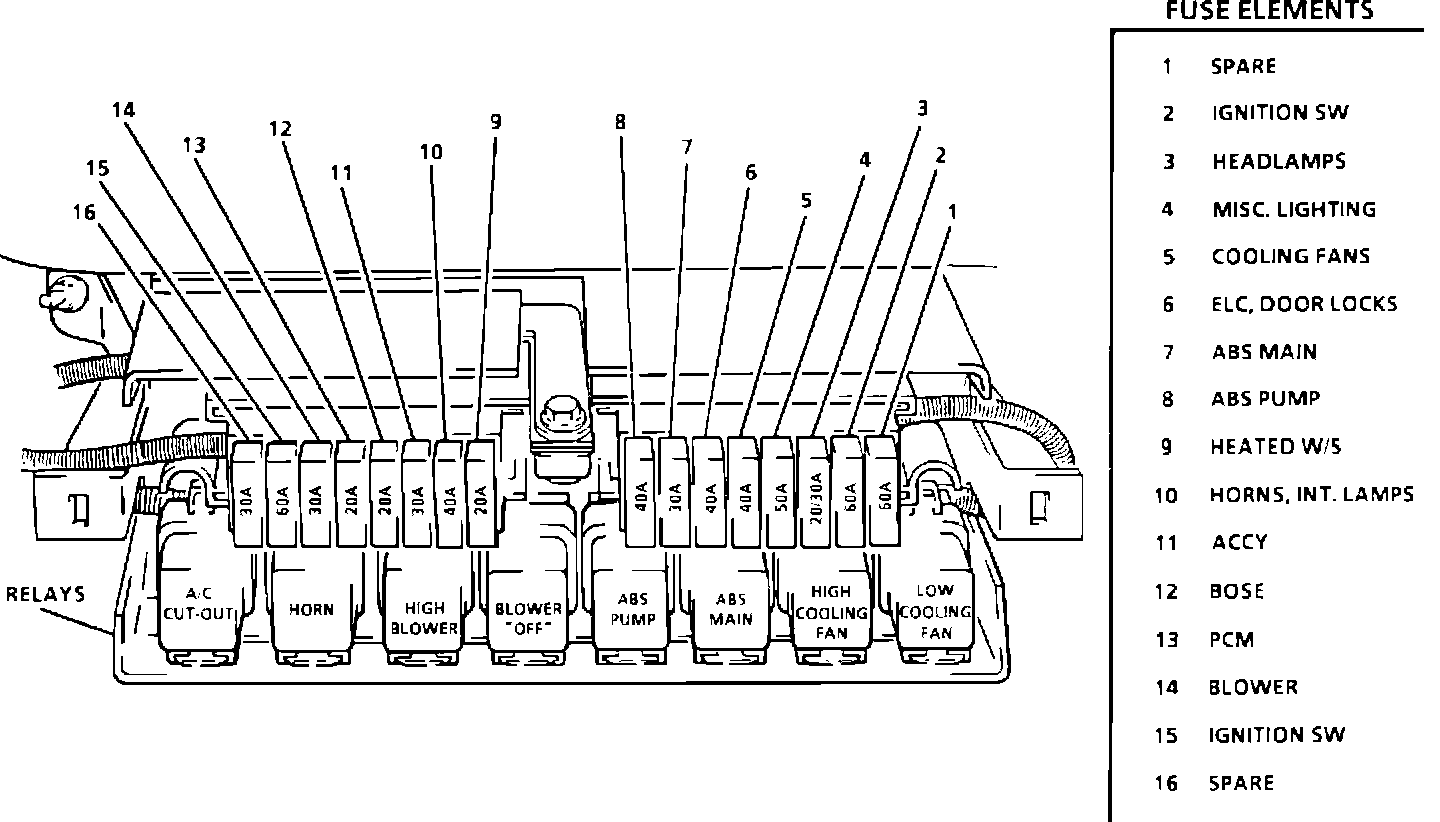

Underhood Fuse/Relay Panel:

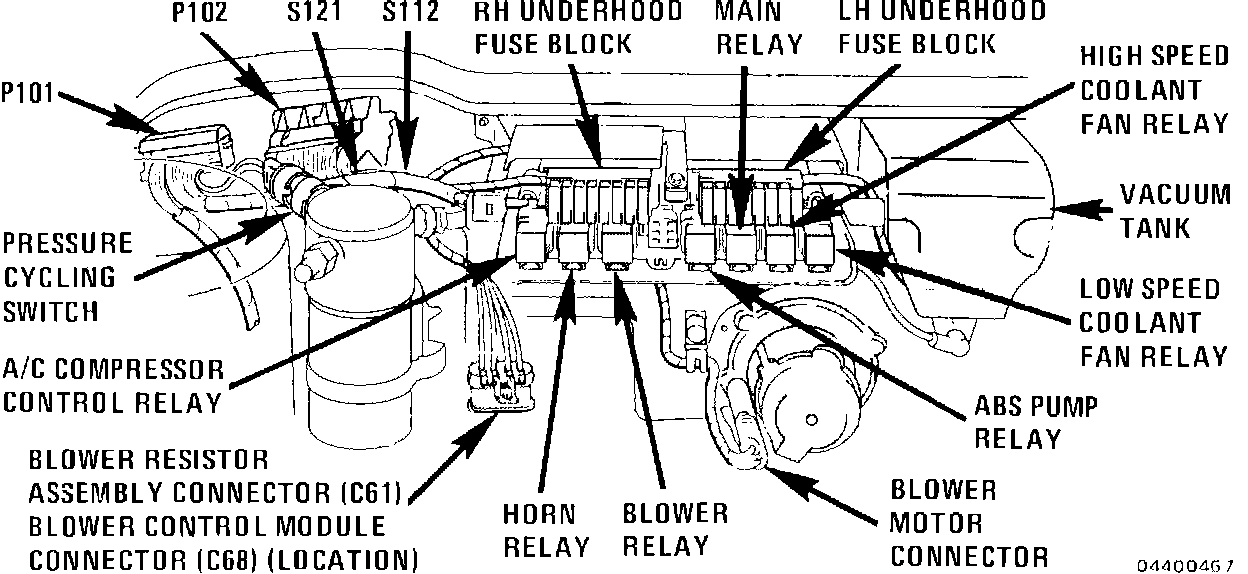

Underhood Fuse/Relay Panel Details:

REAR OF ENGINE COMPARTMENT

CLOCKWISE FROM TOP

Right Fuse Block
Main Relay
Left Fuse Block
High Speed Cooling Fan Relay
Vacuum Tank
Low Speed Cooling Fan Relay
ABS Pump Relay
Blower Motor Connector
Blower Relay
Horn Relay
Blower Resistor And Control Module Connector
A/C Compressor Clutch Relay
A/C Low Pressure Cycling Switch
