ABS/TCS - Ground Distirbution Schematics Revised

NUMBER: 93-U-20

CORP.REF.NO: 208123

DATE: January 1993

SECTION: 8A

SUBJECT:
ELECTRICAL DIAGNOSTIC REVISIONS

MODELS/YEARS:
1993 NINETY EIGHT AND EIGHTY EIGHT

This bulletin provides late production and design change information ranging from wire gauge and color changes to changing connector pinout identification and wiring routing changes.

The following information reflects current changes and revisions to Section 8A of the 1993 Oldsmobile Ninety Eight and Eighty Eight Electrical Systems/Service Manual Diagnostic Procedure:

Please mark reference to your service manual.

UPDATE CHANGE SUMMARY





CARLINE:
1993 NINETY EIGHT/EIGHTY EIGHT





GROUND DISTRIBUTION:
G104

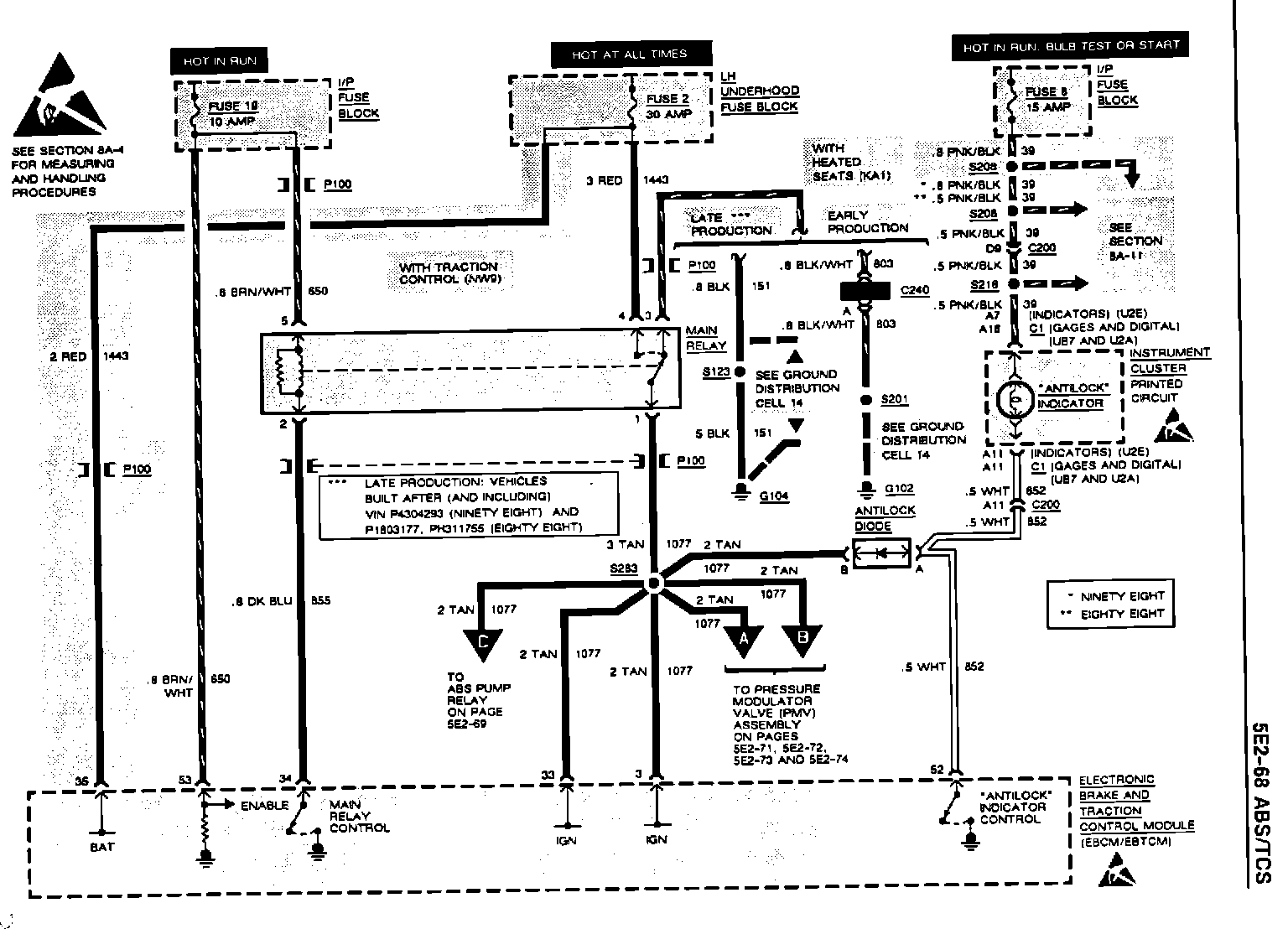

5E2-68 ABS/TCS

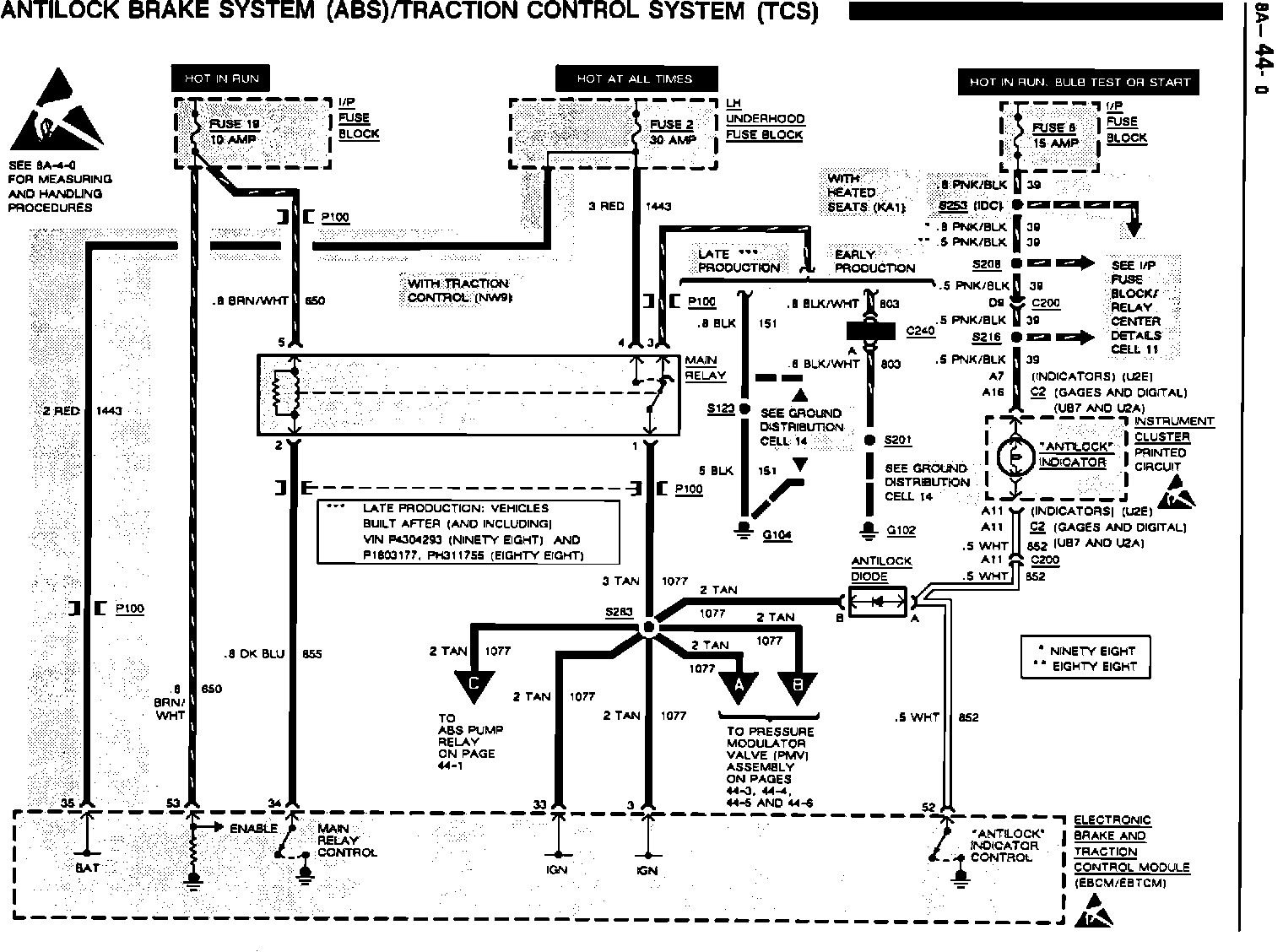

Antilock Brake System (ABS)/Traction Control System (TCS)
