Coupe

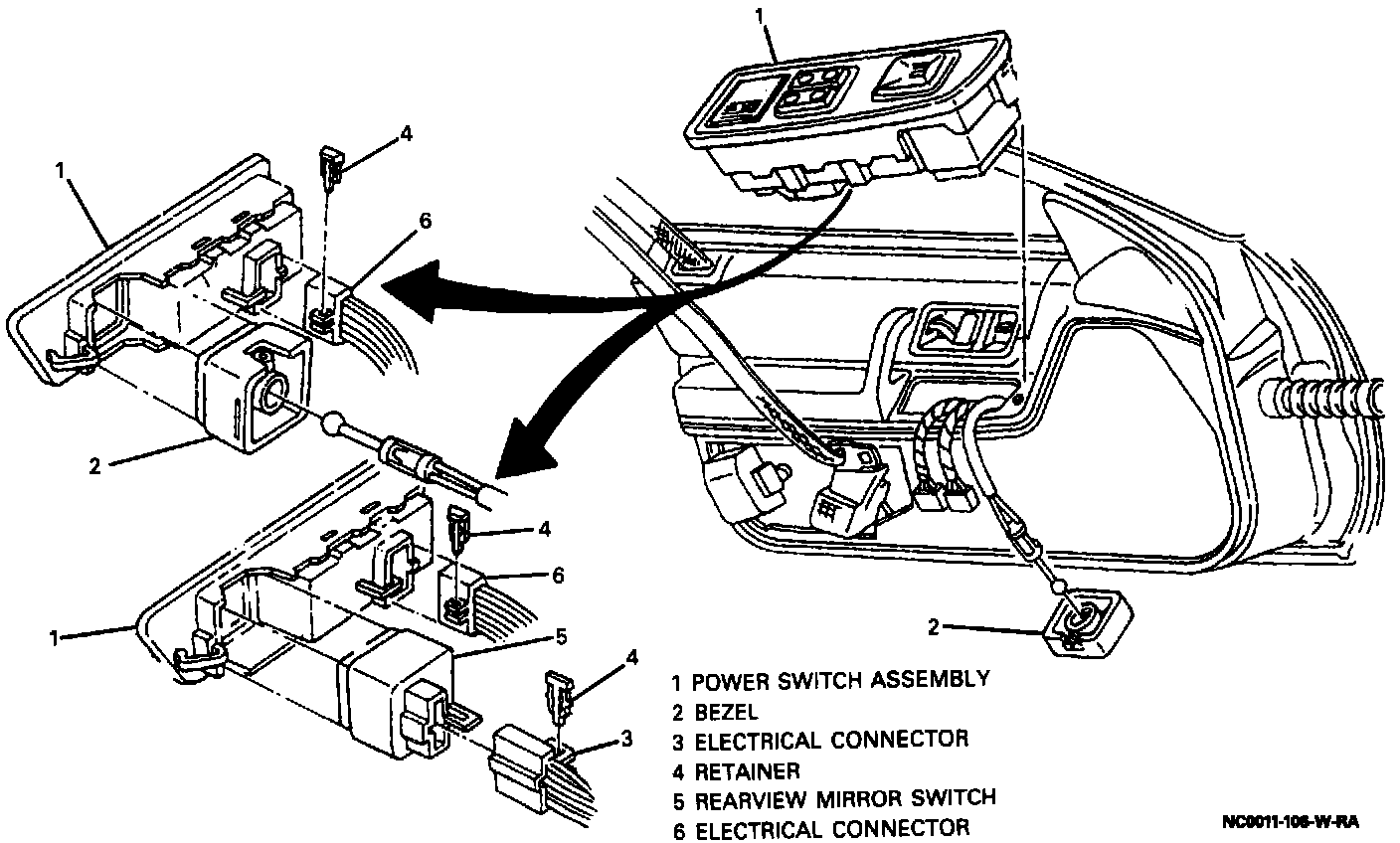

Power Switch Assembly Removal:

NOTICE: When removing a door trim panel or switch plate, the ignition switch must be in the off position. This will eliminate the possibility of shorting out the switch if a screwdriver, awl or metal object is used to remove the switch from the harness.

Remove or Disconnect

1. Retractor cover.
2. Switch assembly by prying up with a flat-bladed tool.
3. Clips.
4. Connectors.
5. Switch from assembly if necessary.

Install or Connect

1. Switch to assembly if removed.
2. Connectors.
3. Clips.
4. Switch assembly by pressing in place.
5. Retractor cover.
