Power Seat Switch: Service and Repair

REMOVAL PROCEDURE

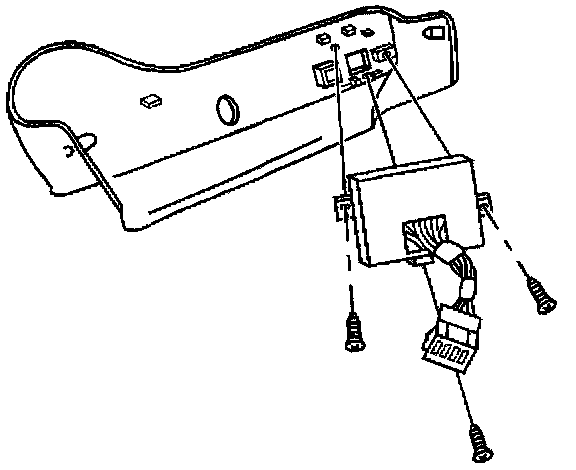

Seat Switch Replacement: Power (Six-Way Power Seat Switch) - Removal Procedure:

1. Remove the finish trim panel.
2. Remove the power seat switch screws.
3. Remove the power seat switch from the finish trim panel.

INSTALLATION PROCEDURE

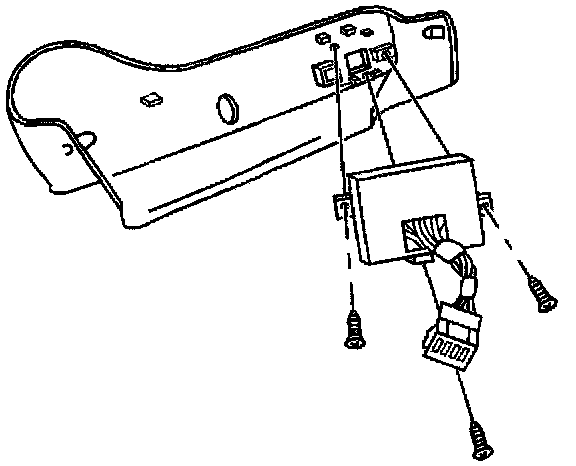

Seat Switch Replacement: Power (Six-Way Power Seat Switch) - Installation Procedure:

1. Install the power seat switch to the finish trim panel.
2. Install the power seat switch screws.

Tighten
Tighten the power seat switch screws to 3 N.m (27 lb in).

3. Install the finish trim panel.
