Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Switch
>>
Ajar Indicator Switch
>>
LF
LF

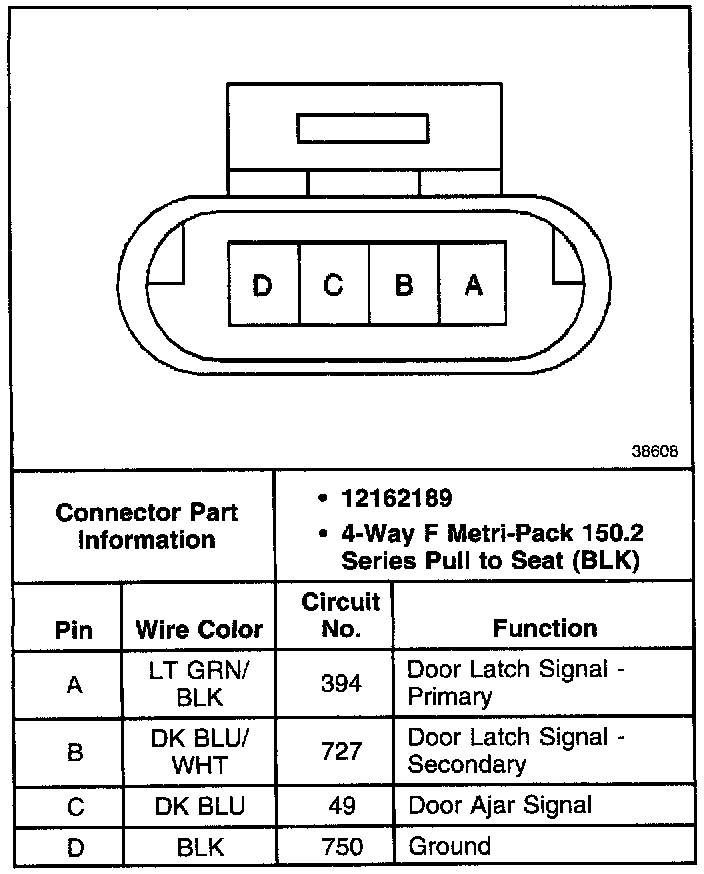

Door Lock (LF): C1 - Ajar Indicator Switch:
