Fuel Pressure Sensor/Switch: Service and Repair

Fuel Tank Pressure Sensor Replacement




Removal Procedure

Caution: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the spare tire cover, the jack, and the spare tire.
3. Remove the trunk liner.




4. Remove the (7) nuts retaining the fuel sender access panel.
5. Remove the fuel sender access panel.
6. Disconnect the electrical connector from the fuel tank vapor pressure sensor.

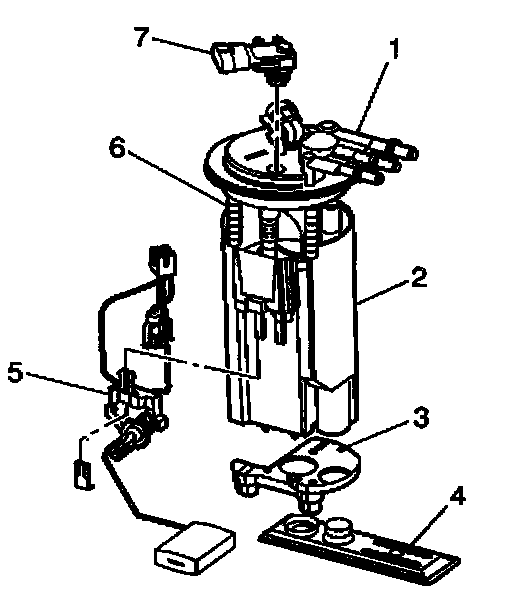

7. Remove the fuel tank vapor pressure sensor (7) from modular fuel sender assembly.

Installation Procedure
1. Install the new fuel tank vapor pressure sensor (7) to modular fuel sender.
2. Connect the electrical connector to fuel tank vapor pressure sensor.




3. Reinstall the fuel sender access panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

4. Reinstall the (7) nuts retaining the fuel sender access panel.
- Tighten the fuel sender access panel nuts to 10 N.m (8 lb ft)
5. Reinstall the trunk liner.
6. Reinstall the spare tire the jack, and the spare tire cover.
7. Connect the negative battery cable.
