Lower Control Arm Bushings Replacement (Frame-Mounted Bushing)

REMOVAL PROCEDURE
^ Tools Required:
- J 21474-18 Nut
- J 21474-5 Bushing Receiver
- J 21474-13 Bushing Driver
- J 21474-19 Bolt Assembly

1. Remove the control arm from the vehicle. Refer to LOWER CONTROL ARM REPLACEMENT.

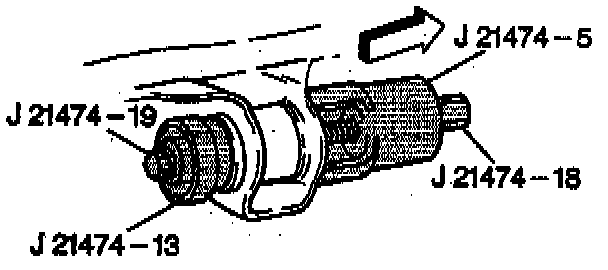

2. Assemble the bushing tool as follows:
2.1. Assemble the J 21474-19 through the J 21474-13 with the small end facing the bushing.
2.2. Assemble J 21474-5 on the front of the bushing.
3. Tighten the bog until the bushing is driven out of the frame.
4. Remove the bushing driver tool.

INSTALLATION PROCEDURE

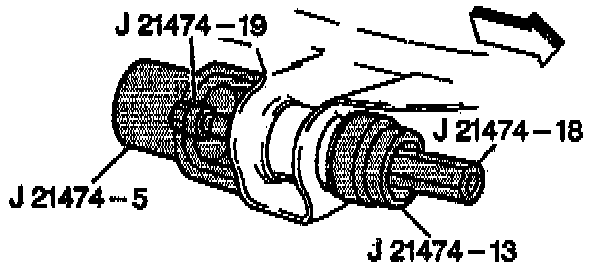

1. Install the bushing to the frame as follows:
1.1. Assemble the J 21474-19 through J 21474-5 with the large end facing the bushing.
1.2. Assemble the large end of the J 21474-13 facing the bushing.
1.3. Connect the J 21474-18 to the threads.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Install the J 21474-19.

Tighten
Tighten bolt J 21474-19 until the bushing is fully seated.

3. Remove the bushing driver tool.
4. Install the control arm to the frame. Refer to LOWER CONTROL ARM REPLACEMENT.
