A/T Mount Replacement (Trans Mount)

REMOVAL PROCEDURE
^ Tools Required
- J 28467-360 Engine Support Fixture.





1. Remove the engine frame.

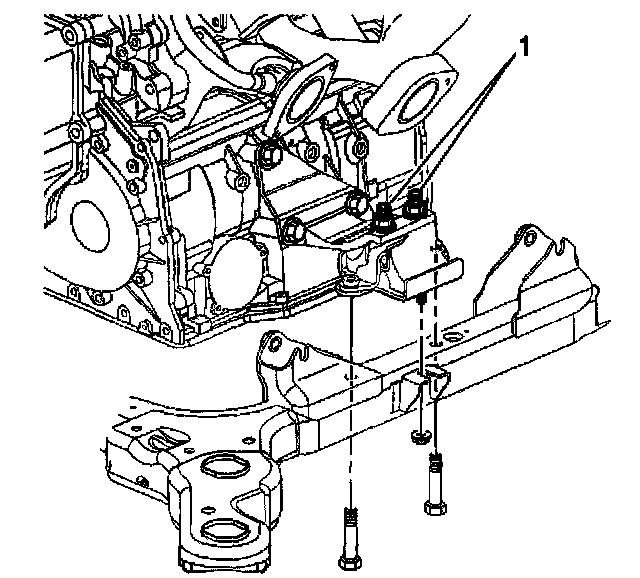

2. Remove the mount (1) from the mount bracket.

INSTALLATION PROCEDURE

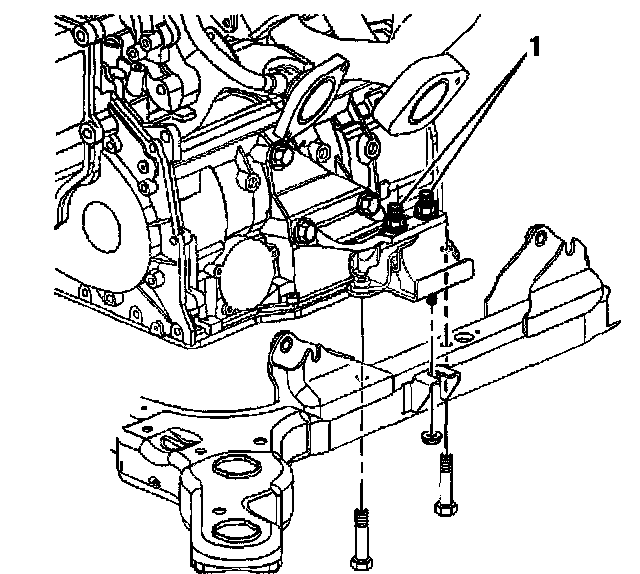

1. Install the right transmission mount (1) into the mount bracket and install the mount nuts.
^ Tighten the mount nuts to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the engine frame.
