B1369

DTC B1369 Ignition 0 Fault:

CIRCUIT DESCRIPTION
This is the hardware ignition 0, CKT 1600 input to the body control module (BCM) or the instrument cluster. They can be either in the ON or OFF position from the ignition switch.

CONDITIONS FOR SETTING THE DTC
All of the following conditions must be met:
1. Ignition 0 is not active.
2. Ignition 1 is active for twenty seconds.

ACTION TAKEN WHEN THE DTC SETS
DTC B1369 is stored in the body control module (BCM) memory.

CONDITIONS FOR CLEARING THE DTC
^ The BCM goes to sleep. The controller reinitializes with the fault cleared.
^ All BCM history codes will be cleared after 100 ignition cycles (from OFF to RUN) with no current codes active during the 100 ignition cycles.
^ Use the scan tool.

DIAGNOSTIC AIDS
^ If the fuel gauge is always reading empty, the problem lies within the BCM or the wiring to the BCM.
^ The instrument cluster will not function if Ignition 0 is not present in the vehicle.
^ If the DTC is a history DTC, the problem may be intermittent. Perform the tests shown while wiggling the wiring and connectors. This can often cause the malfunction to appear.

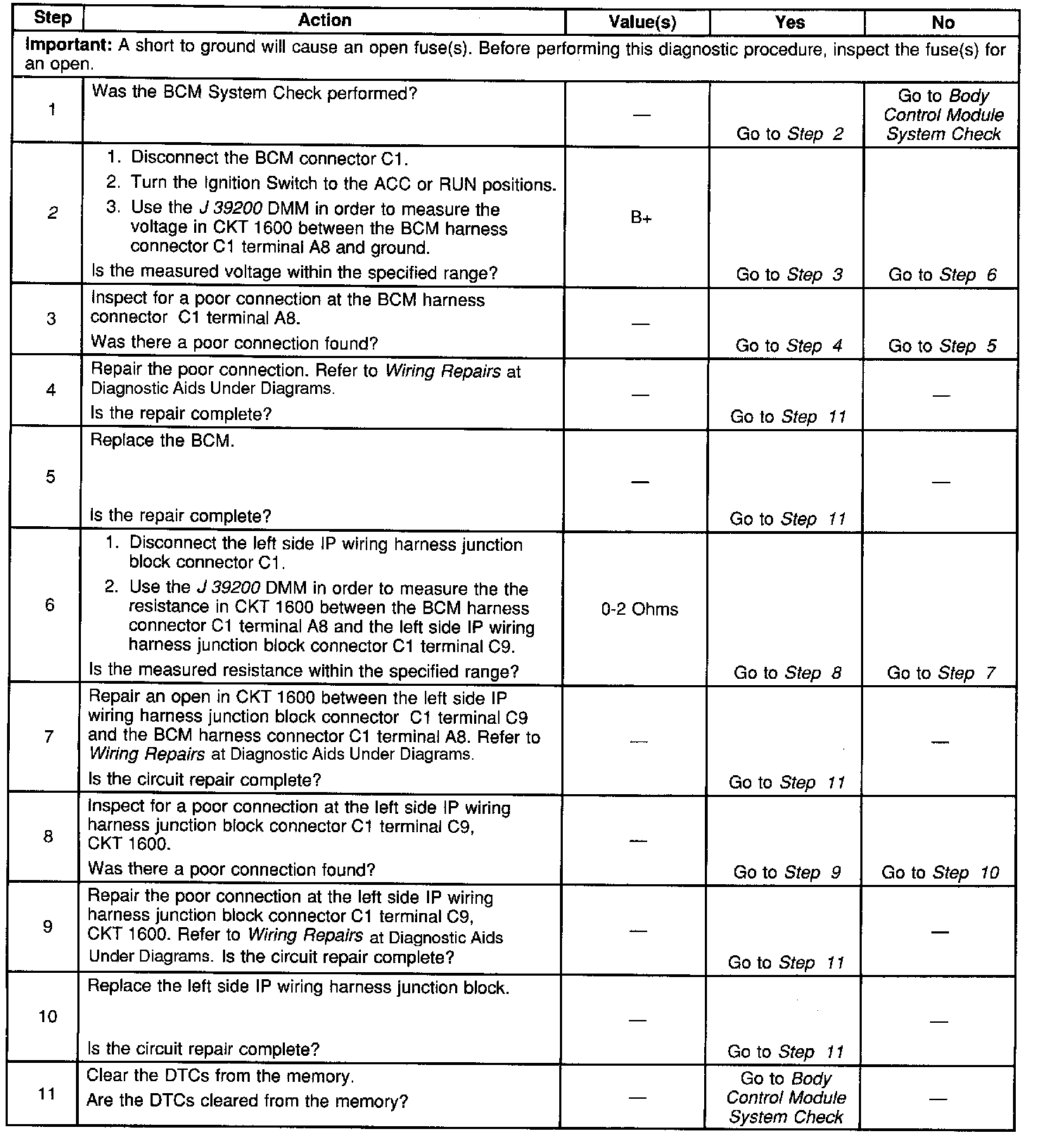

TEST DESCRIPTION
The numbers listed below refer to the numbers on the diagnostic table.

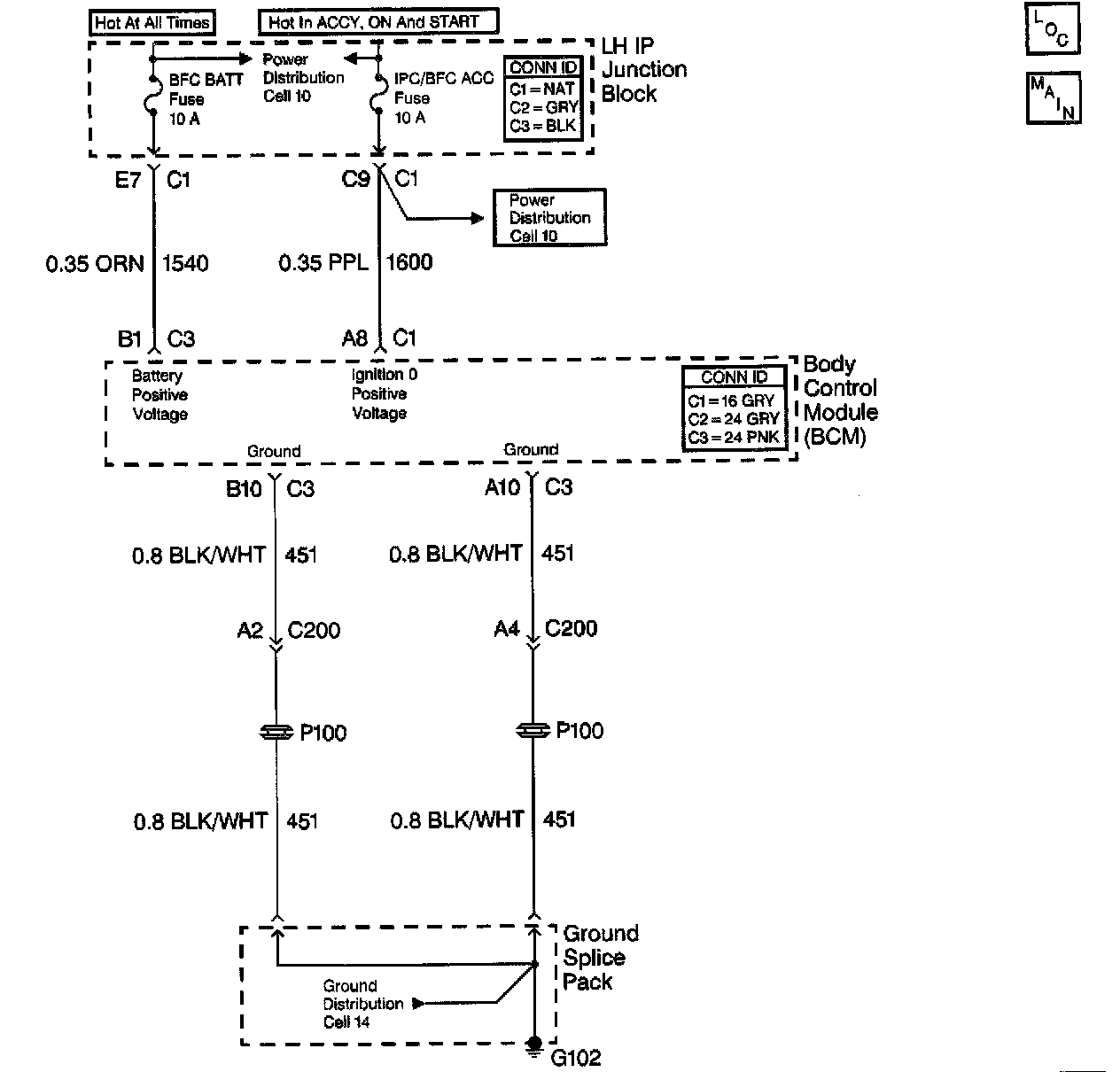

2. This step determines if CKT 1600 is delivering power to the body control module (BCM).
6. This step determines if there is an open in CKT 1600 between the BCM and the left side IP wiring harness junction block.
