B2577

DTC B2577 Headlamp Control Circuit Low:

CIRCUIT DESCRIPTION
This is a trouble code (both current and history) that indicates that the ALC headlamp relay control output is shorted to ground or open.

CONDITIONS FOR SETTING THE DTC
Meet all of the following conditions:
^ The ambient light sensor indicates bright conditions.
^ The ALC option is enabled and ignition one is active.
^ The ignition switch is not in engine crank.
- Ignition one active
- Ignition three inactive
- Engine not running
^ The ALC headlamp output is not active.
^ The ALC headlamp feedback is present for five seconds.

ACTION TAKEN WHEN THE DTC SETS
^ Stores the DTC B2577 in the body control module (BCM) memory.
^ The SERVICE VEHICLE SOON indicator will illuminate.

CONDITIONS FOR CLEARING THE DTC
^ The BCM reads the proper headlamp voltage.
^ Conditions for the fault are no longer present.
^ All the BCM history codes will be cleared after 100 ignition cycles (from OFF to RUN) with no current codes active during the 100 ignition cycles.
^ Use the scan tool.

DIAGNOSTIC AIDS
If the DTC is a history DTC, the problem may be intermittent. Try performing the above tests while wiggling the wiring and connectors. This can often cause the malfunction to appear.

TEST DESCRIPTION

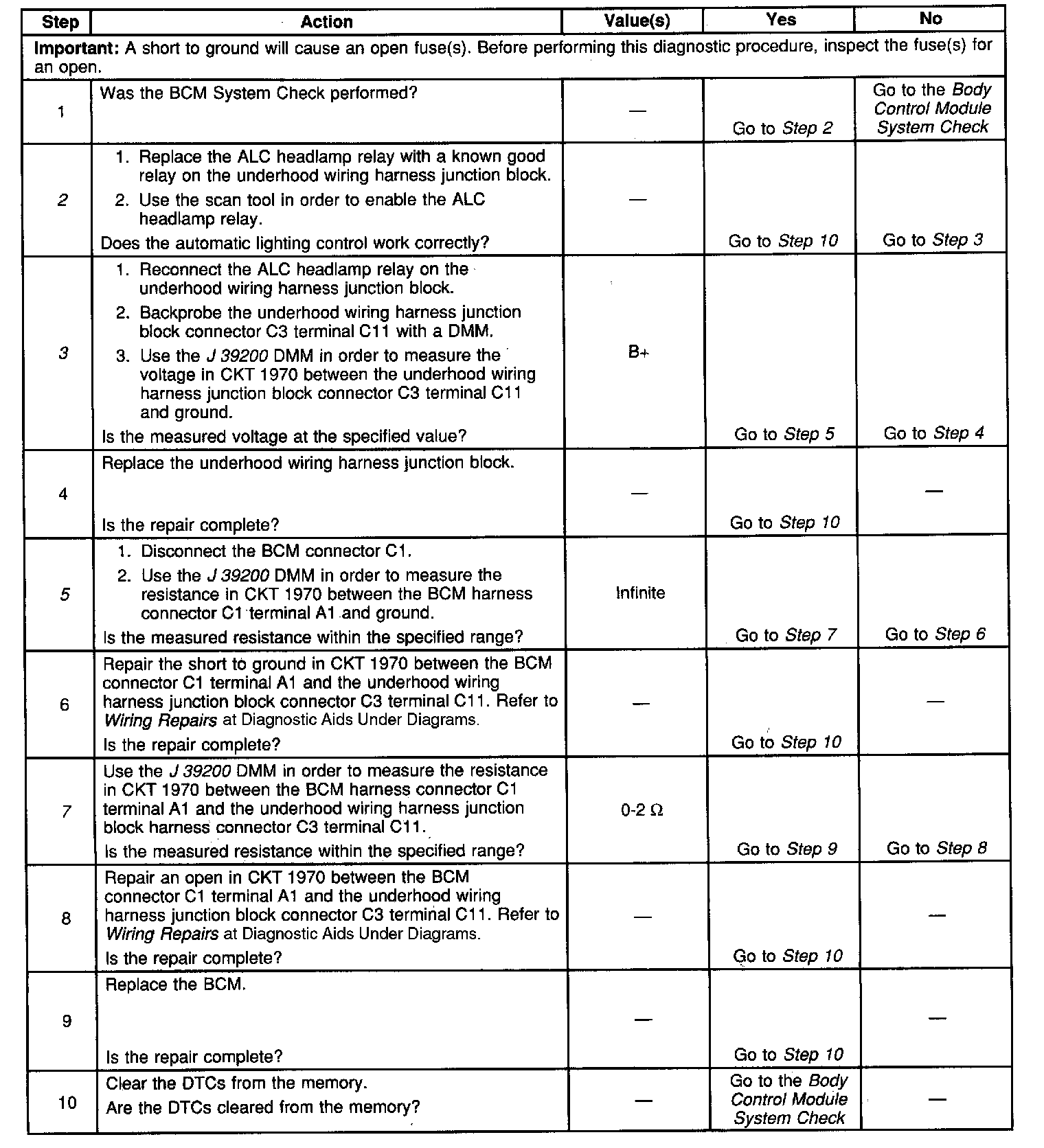

The numbers below refer to the numbers on the diagnostic table.
2. This step verifies proper operation of the of the ALC headlamp relay.
3. This step determines if the underhood wiring harness junction block has a short to ground in CKT 1970.
5. This step determines in a short to ground exists in CKT 1970 between the underhood wiring harness junction block and the body control module (BCM).
7. This step determines if an open exists in CKT 1970 between the underhood wiring harness junction block and the BCM .
