DTC B2587 Parklamp Relay Output Short To Ground/Op:

CIRCUIT DESCRIPTION
This is a trouble code (both current and history) that indicates the ALC parklamp relay control output is shorted to ground or open.

CONDITIONS FOR SETTING THE DTC
Meet all of the following conditions:
^ The ALC option is enabled and ignition one is active.
^ The ALC parklamp output is not active.
^ The ALC parklamp feedback is present for five seconds.

ACTION TAKEN WHEN THE DTC SETS
^ Stores DTC B2587 in the body control module (BCM) memory.
^ The SERVICE VEHICLE SOON indicator will illuminate.

CONDITIONS FOR CLEARING THE DTC
^ The BCM goes to sleep and reinitializes with the fault cleared.
^ All the BCM history codes will be cleared after 100 ignition cycles (from OFF to RUN) with no current codes active during the 100 ignition cycles.
^ Use the scan tool.

DIAGNOSTIC AIDS
If the DTC is a history DTC, the problem may be intermittent. Try performing the above tests while wiggling the wiring and connectors. This can often cause the malfunction to appear.

TEST DESCRIPTION

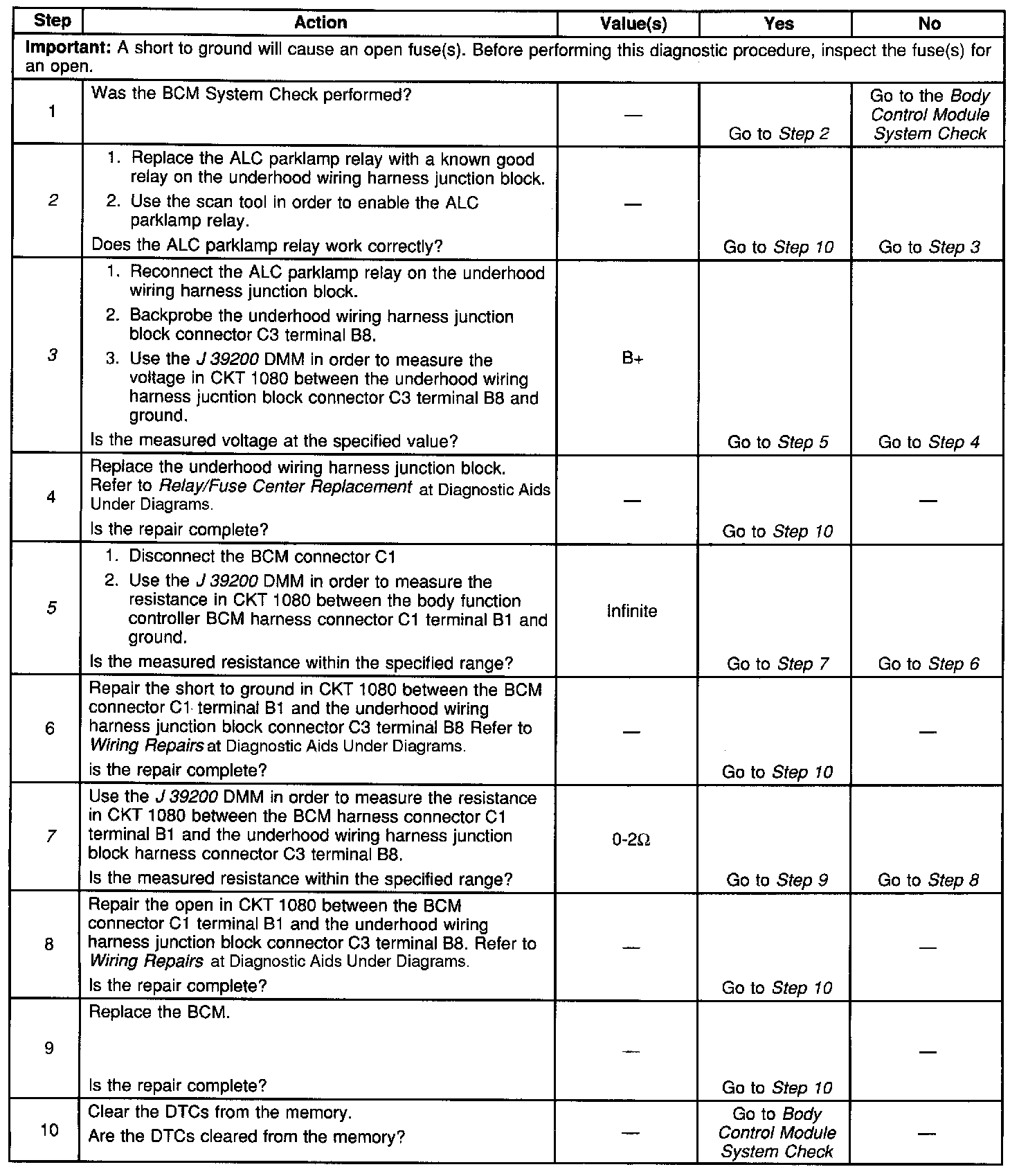

The numbers below refer to the numbers on the diagnostic table.
2. This step verifies proper operation of the ALC parklamp.
3. This step determines if a short to ground exists in CKT 1080 within the underhood wiring harness junction block.
5. This step determines if a short to ground exists in CKT 1080 between the underhood wiring harness junction block and the body control module (BCM).
7. This step determines if an open exists in CKT 1080 between the underhood wiring harness junction block and the BCM.
