C101
C101

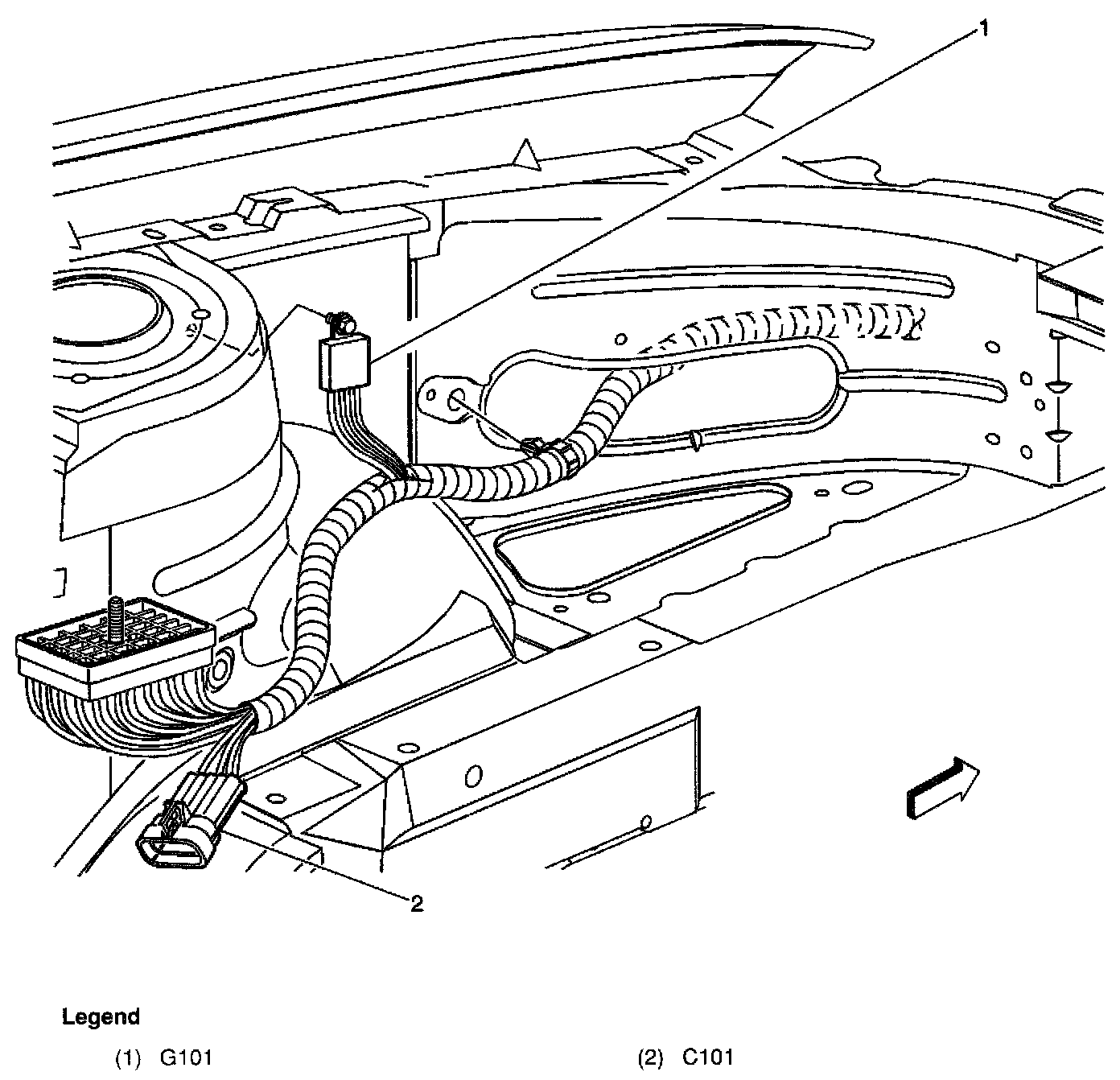

Left Side Of The Engine Compartment:
I/P wiring harness to engine wiring harness, the left side of the engine compartment, near the strut tower
(10 cavity) On the left side of the engine compartment
