C301

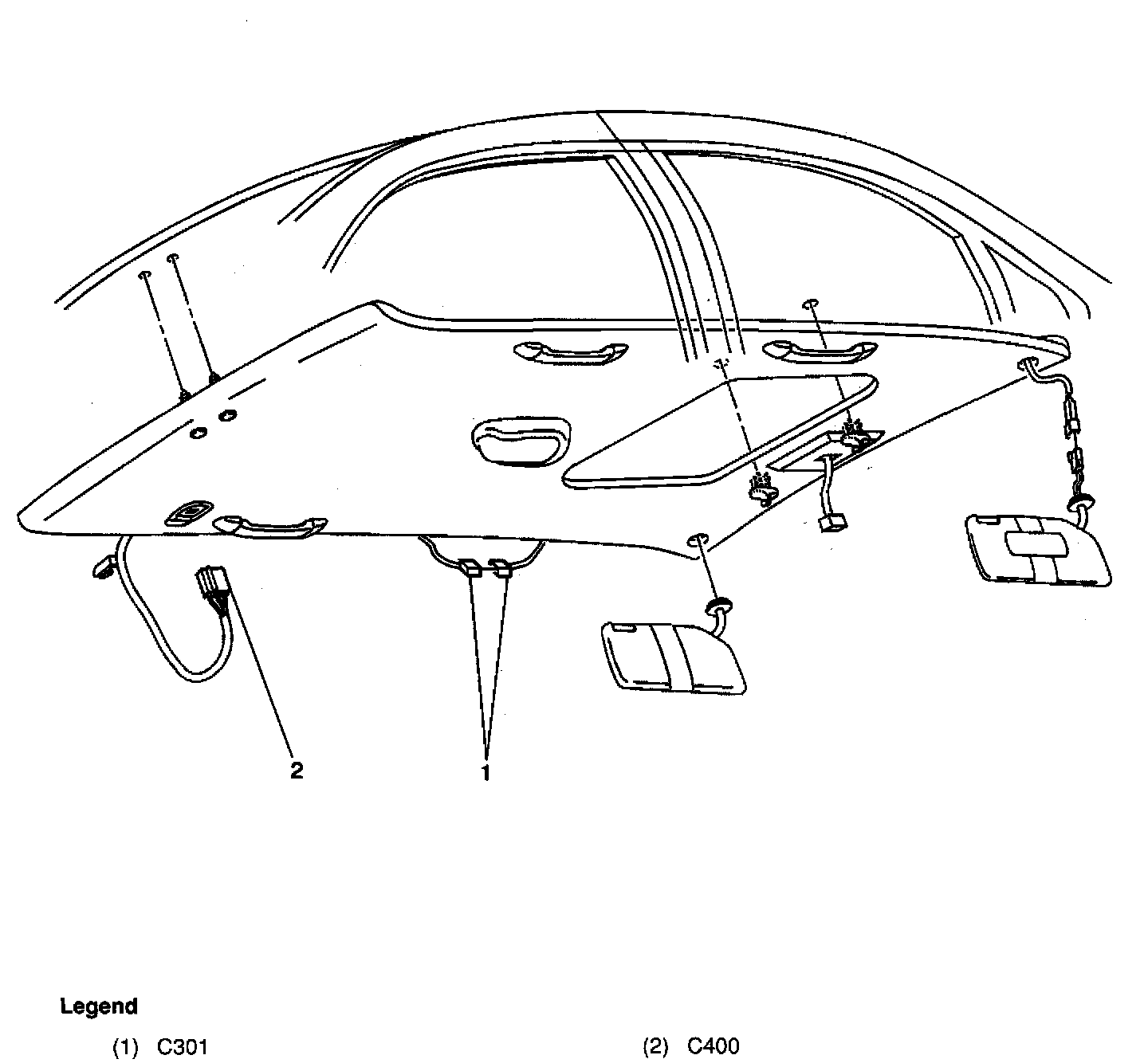

C301
Headliner:
(3 cavity) In the headliner
Body wiring harness to the left front door wiring harness, in the A-pillar
