C306

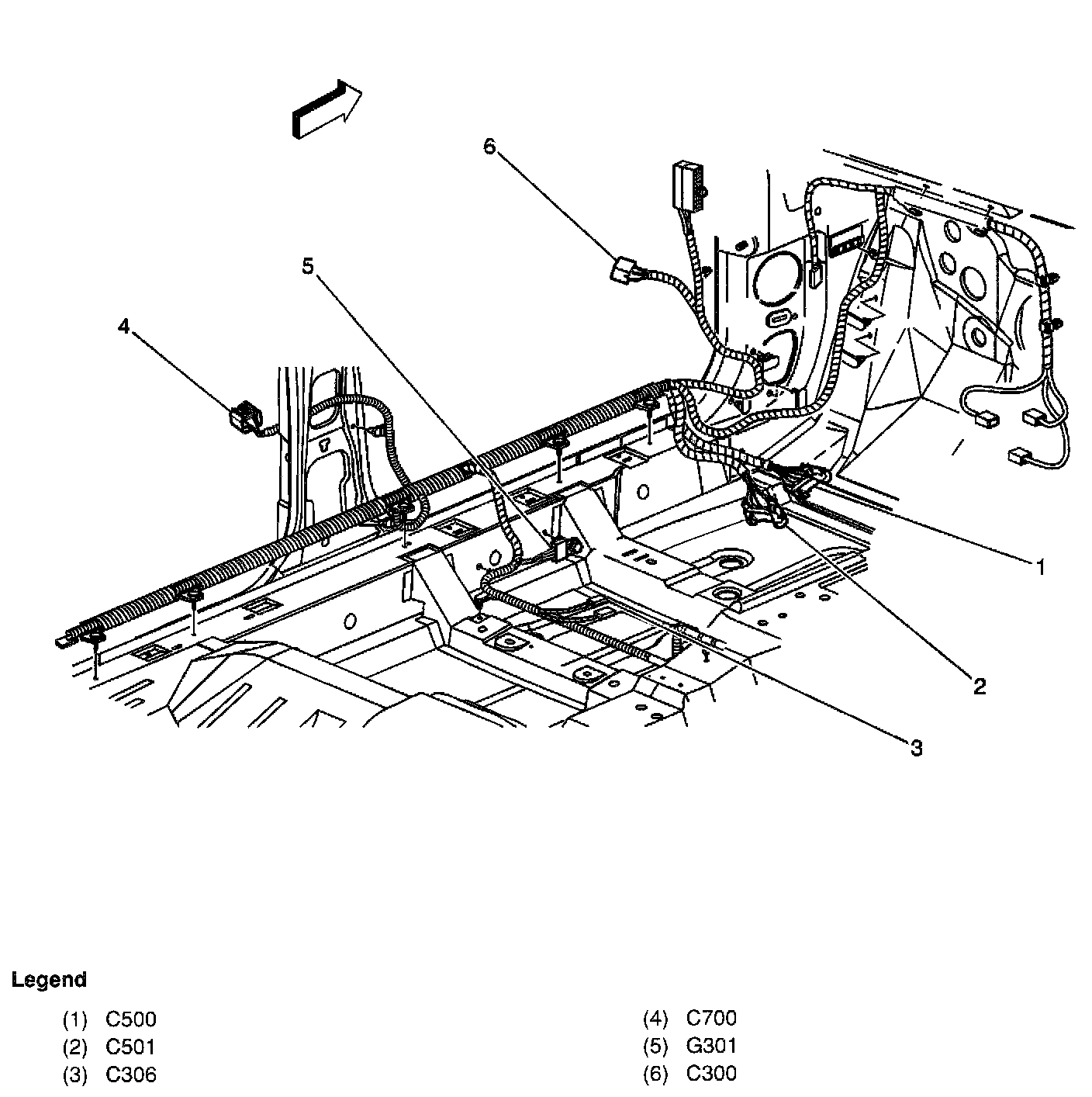

Left Side Of The Passenger Compartment:





Left side of the passenger compartment

(2 cavity) In the left side of the passenger compartment
